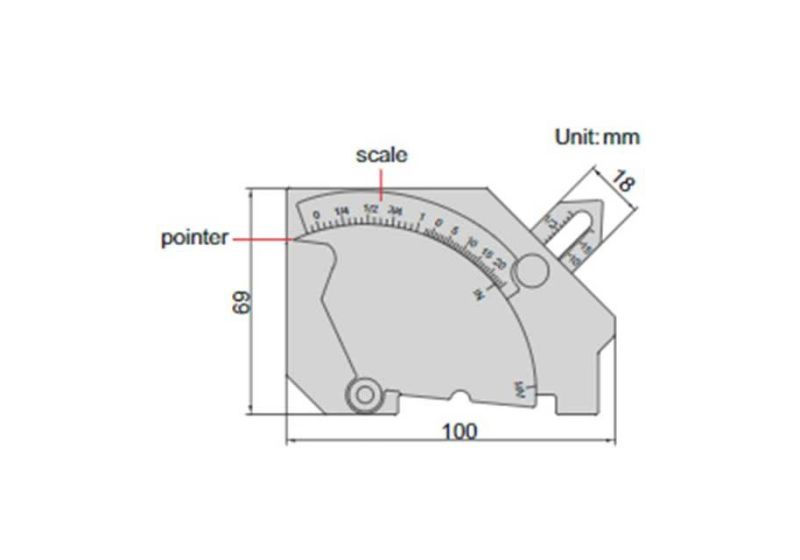

Insize welding gauge Cambridge design model 1-4835

welding gauge

Information:

• The welding gauge is a tool that can be used to control the dimensions of welded parts and joints.
• The measuring range of misalignment, height of the welding pole and height of the corner welding leg: 0-25 mm
• Manual operation system
• Welding height: 0 to 20 mm
• Cut on the side of the weld: 0-2 mm
• Length of angular angles: 0-60 mm accuracy
• Measurement accuracy: ±0.5 mm
• 1 mm size division
• Angle measurement: 0-60 degrees with size division of 5 degrees and accuracy of ±1 degree
• 45 degree angle measurement with ±1 degree error
• With chrome plating
• Stainless steel body material

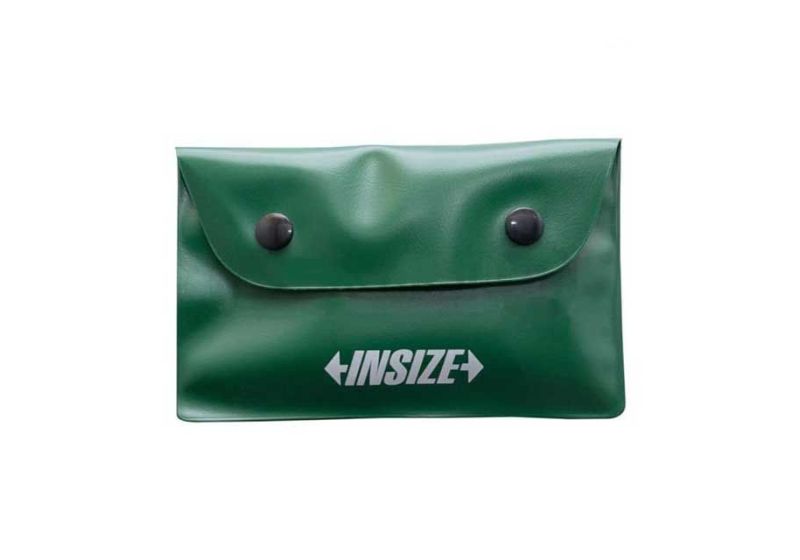

• Equipped with a carrying bag
• It has two measuring units, inches and millimeters
• Made in China
