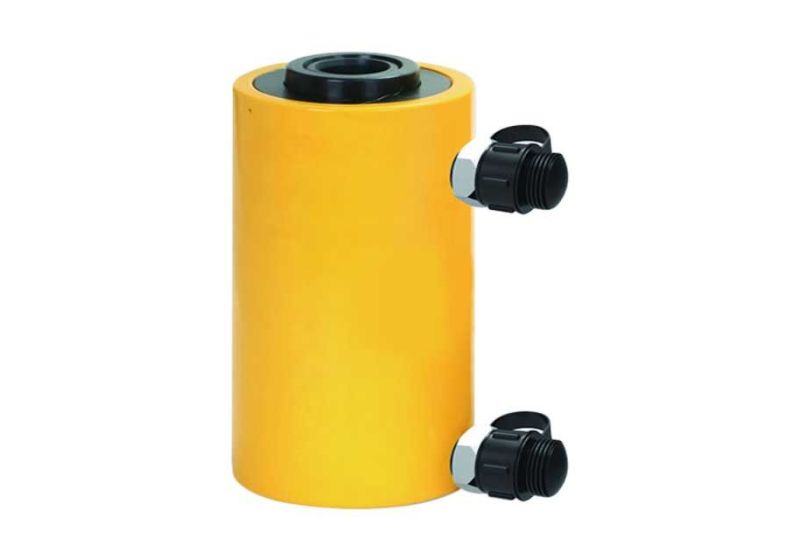

RSCO Double acting Hollow Plunger Cylinders HCD5-200T

دسته بندی : Low Height Hydraulic Jack

Hydraulic Cylinder

Information:

  • Power: 200 tons
  • stroke 50 mm
  • cylinder capacity enter trace 1929 kn
  • cylinder capacity return trace 1161 kn
  • Effective area enter trace : 275.5 cm2
  • Effective area return trace 165.8 cm2
  • Oil capacity enter trace : 1436 cm3
  • Oil capacity return trace 829 cm3
  • Closed mode height: 237 mm
  • extended height 287 mm
  • outside diameter 288 mm
  • inside diameter 240 mm
  • piston rod diameter 191 mm
  • Weight: 90.9 kg
  • Made in China
  • After-sale services
  • Hollow plunger design allows for both push and pull forces
  • Double acting, hydraulic return
  • High strength alloy steel for durability
  • Baked enamel finish for increased corrosion resistance
  • Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
  • Contact us for more information
موارد بیشتر
Add to wishlist
Add to compare0
$1,233.00
Delivery: 1 to 3 weeks

فقط 2 عدد در انبار باقیست - پیش از اتمام بخرید

Product Details

Data sheet

Name
Hydraulic Cylinder
Model
HCD5-200T
Function system
Hydraulic
Maximum pressure
700 bar
Warranty
Unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
After-sale services
1 year After-sale services
Made in
china
Weight
90.9 kg
Overall length
287 mm
Tank capacity
1436cm3
نوع جک
Double acting Hollow Plunger Cylinders
ظرفیت جک
200t
