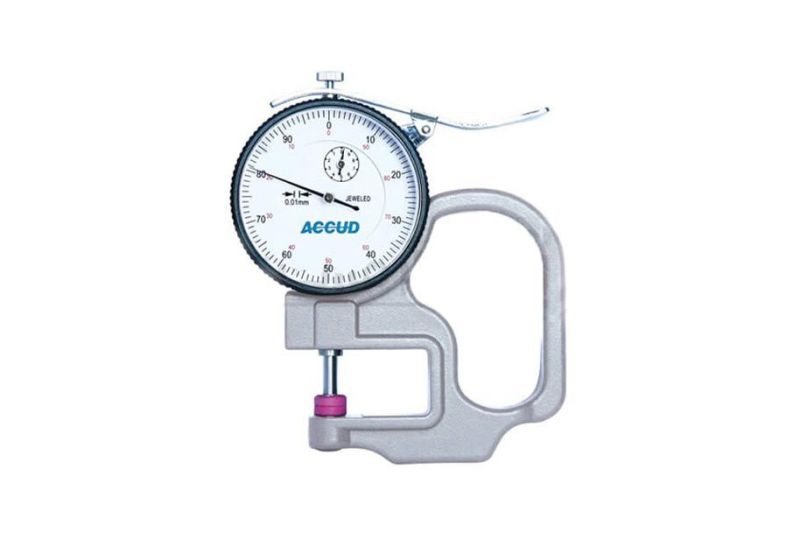

Accud dial thickness gauge model 11-010-443

Dial Thickness gauge

Information:

• The thickness gauge is used to measure the thickness of dimensions with high accuracy.
• Measurable size: 0-10 mm
• Clockwise operating system
• Ceramic jaws
• Measuring depth: 20 mm
• Plate diameter: 58 mm
• Accuracy: ±0.02 mm
• High build quality
• Grading in terms of 0.01 mm
• It has a hand screen for display
• Made in China

Thickness gauge

Information:

• The thickness gauge is used to measure the thickness and quality of coating of objects.
• Digital operating system
• Ability to measure magnetic materials such as steel, nickel, etc. and non-magnetic materials such as copper, zinc, aluminum, chrome, plastic, paper, etc.
• Equipped with a digital screen
• Measurable size: 0-60 mm
• Accuracy: 2 micrometers
• Minimum measurable thickness: 0.5 mm
• Weight: 20 grams
• High build quality
• Made in China

Digital Depth gauge

Information:

• The depth gauge is used to measure all kinds of depth and precise and fine grooves with high accuracy.
• Size: 0 to 25 mm
• Accuracy: ±0.03 mm
• Grading in terms of 0.01 mm
• It has an on/off button and inch/mm and zero
• Ability to measure in two units, mm and inch
• Made of stainless steel
• Resolution: 0.01 mm
• Has a thumb roller for easier use
• Equipped with data output port and automatic on and off
• Digital operation system
• Equipped with a digital screen
• High build quality
• Made in China

Depth gauge

Information:

• We use Depth gauge measure to depth and dents with high precision.
• With many blades.
• In different lengths.
• Industrial spring divider is made of stainless steel.
• In different height .
• Equipped with twp end hook
• In different sizes .
• Precision of this device is very high .
• Working system : manual
• Can measure mm.
• Made with high quality.
• Contact us for more information.

compass tool

Information:

• The industrial caliper inside the gauge is used to measure the dimensions of objects, especially the outer and inner diameters of cylindrical parts.
• Suitable for measuring internal dimensions
• Height: 150 mm
• The measurable range is 15-140 mm
• Made of carbon steel
• High build quality
• Made in China

compass tool

Information:

• Industrial calipers are used to measure the dimensions of objects, especially the outer and inner diameters of cylindrical parts.
• Suitable for measuring external dimensions
• In different sizes
• Measurable range: 0-140 mm
• Made of carbon steel
• High build quality
• Height: 150 mm
• Made in China

Protractor

Information:

• A digital protractor is used to measure the angle of a slope, height or height of an object with high accuracy.
• Showing the angle between the horizon and the vertical
• Equipped with a digital screen
• Measuring range: 0 to 180 degrees
• Measurement accuracy: 0.1 degrees
• It has two bubble levels
• Manual / digital operation system
• Total length: 34 cm
• Working temperature: -20 to 50 degrees Celsius
• Body material: Aluminum
• Weight: 1042 grams

Thickness gauge

Information:

• The thickness gauge is used to measure the thickness of dimensions with high accuracy.
• Measuring range: 0-10 mm
• Accuracy: ±0.1 mm
• Gradation in terms of 0.05 mm
• Scratch and wear resistant glass
• Total length: 85 mm
• Length of jaws: 35 mm
• Plate diameter: 50 mm
• More accuracy due to existing grooves
• It has a hand screen for display
• Made in China
