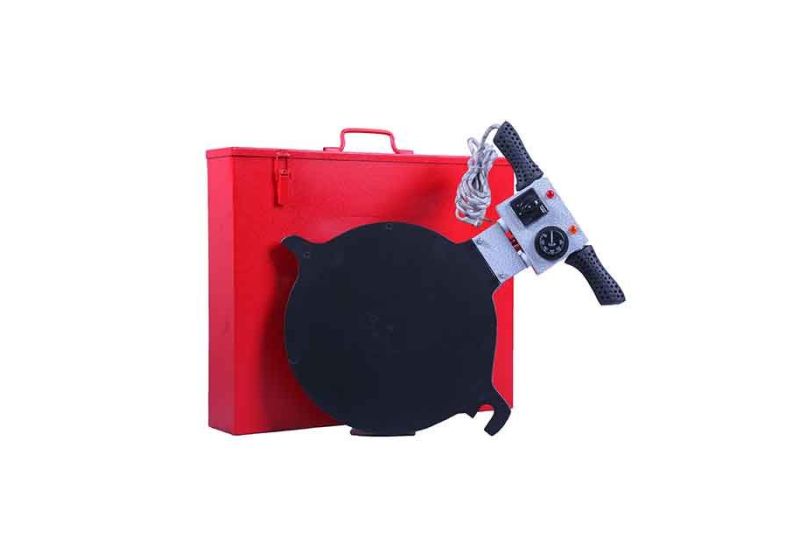

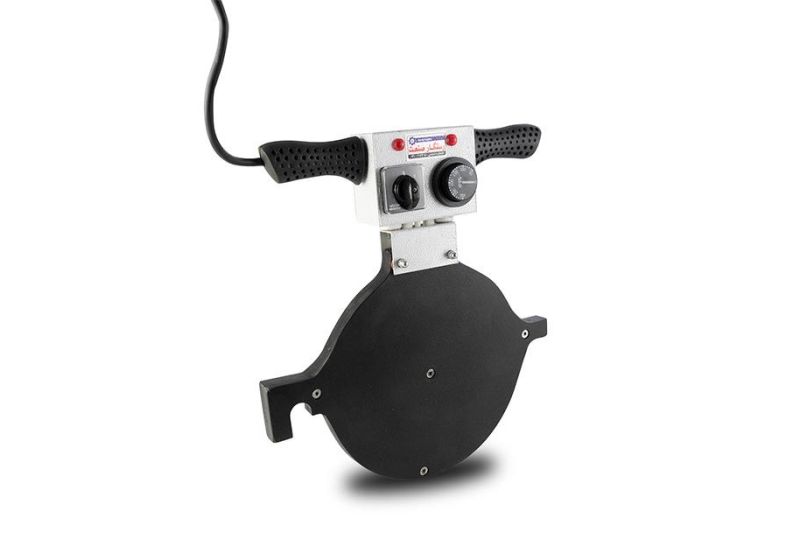

RSCo electrical HDPE pipe welding heat plate PEWE250

RSCo electrical HDPE pipe welding heat plate

Information:

  • Welding all kinds of PPR pipes and joints
  • Size: 0 - 250 mm (0 - 10 in)
  • Italian push-pull element with high power
  • Temperature rate: 50 - 300 C
  • PTK plate to help better heat rise and temperature transfer
  • Internal and external fireproof wiring
  • Powerful rotary ON-OFF switch
  • Metal elelctro-static color strongbox
  • 1-year warranty and 5-years after-sale services of RSCo
  • ISO9001 and CE standards
  • For more info contact us via the webpage
Read moreShow less
Description

Knoweledge about HDPE pipe welding machine:

  • Gas HDPEe pipe welding heater has ability to weld all pipes.
  • Gas  HDPE pipe welding has different models,like Electrical,Digitally,gaseous.
  • Gas HDPE pipe welding pipe head to head in water supply system.
  • Can weld PPR pipes by plastic HDPE pipe welding.
  • PVC pipe cutter is used for cutting HDPE pipes.
  • Electrofusion welding machine has ability to weld HDPE pipe.
  • These years galvanized and steel pipes are used a lot that they work with thearding machine.
  • Welding industry extruder is also used to repair pipe and polyethylene joints.
  • The high-pressure welding extruder of the industry is used as a welding pipe and polyethylene fittings.

For instructions on how to use HDPE pipe heating, pay attention to:

  • Connect the two types of HDPE pipes heater (fitted with an autopilot light voltage), and turn on the polyethylene iron.
  • HDPE heater has two LED lights for the input of polyethylene iron and another lamp to display the contact thermostat.
  • Set the thermostat for the HDPE heater and wait for both PE lights to light up.
  • Completely clean the area of the polyethylene pipe (with alcohol and awning impregnated cloth).
  • When the ready-to-use HDPE welding machine is in use, Tie and hold the pipes and fittings on both sides to the HDPE heater board.
  • When the connection is completely hot and ready (the edges of the pipes return to the outside due to warming), at this time, we remove the hdpe welding heater plate and tie The two tubes together until theconnection is complete.
  • Make sure both sides are thoroughly watered.

Troubleshooting Polyethylene Welding Iron:

  • You can use the following items if you have difficulty  using  HDPE heater.
  • If the PE thermostat does not turn on or off:
  • The electric heater thermoplastic of the  HDPE may be disconnected.
  • The degree of thermoplastic heater of the hdpe is at a minimum or maximum.
  • The thermostat lamp is cut or burnt.
  • The thermostat joints are spotted.
  • Connecting joints.

You can help with these problems with polyethylene welding:

  • Open the body of the HDPE heater and fix it.
  • Set the oven thermostat to the optimum temperature.
  • Cut off the power cord and get a thin, soft, sandpaper throgh it  a few times.

HDPE heater may not cause heat:

  • 1Defective current.
  • 2It may be from the device key.
  • 3It may be a thermostat key.
  • 4Definite Element.

To overcome these problems with iron , you can consider the following:

  • As in the previous case, open the  HDPE weld heater body and fix it.
  • Disconnect the power supply and repair the  HDPE welded thermostat if it is burned.

When working with hdpe heater, pay attention to:

  • Check the wires from the heater before working with HDPE welds.
  • hdpe welding heater is designed for 220V municipal power supply. Please do not expose the polyethylene iron to higher voltages.
  • Do not open the  HDPE welding machine by unskilled people.
  • Continuously check the  HDPE welding material at all stages. In case of any damage to  the work with the device during insulation should be stopped.
  • HDPE welding is available in different sizes, which, depending on the size of the tube and the required temperature, can be selected with suitable polyethylene ironing.

Information:

HDPE pipe welding gas plate (size 315)

  • This welding plate welds all kinds of pipe and PP attachments from size: 0-315 mm (0-12).
  • Includes high pressure tap with high power.
  • Includes PTK plate that helps to increase the temp lightly and a better thermo tnasfering.
  • Temprture: 50-300 c.
  • Includes full metal handle.
  • Includes a monitor that views the temp.
  • Includes metal strong box with furnace color for carrying in ease.
  • Includes ISO and CE.
  • Includes 12 month warranty and 5 years after sale service.
  • For more info contact us via webpage.

Machine de soudage de tubes PE , machine de soudage bout a bout pour tuyaux en PEHD , Machine de soudage de tuyaux en PEHD , machine en plastique de HDPE de soudure , Tuyau HDPE de fusion bout à bout , machine de soudure de tuyau hydraulique de pe, Mesin pengelasan pipa PE , mesin las pipa hdpe , Limbah pipa PE mesin las , mesin las butt untuk pipa hdpe , mesin las pipa untuk pipa pe , mesin hidrolik butt fusion welding untuk pipa hdpe , Машина для сварки труб PE , Машина для сварки труб hdpe , сварочный станок для труб hdpe , гидравлическая сварочная машина для труб , полуавтоматическая гидравлическая сварочная сварка hdpe , гидравлический сварочный аппарат для стыковой сварки труб hdpe , Máquina de solda de tubo PE , máquina de solda da tubulação do hdpe , Máquina de solda para tubos de esgoto PE , máquina de soldadura hidráulica da fusão da extremidade para as tubulações do hdpe , Soldadora de tubos de PE , máquina de soldadura de tubería de HDPE , Soldadora de tubería de aguas residuales PE , Soldadora de fusión a tope hidráulica para tubos de hdpe , Máquina de soldadura a tope para tubos de hdpe , पीई पाइप वेल्डिंग मशीन , एचडीपी पाइप वेल्डिंग मशीन , सीवेज पीई पाइप वेल्डिंग मशीन , एचडीपीई पाइप के लिए हाइड्रोलिक बट संलयन वेल्डिंग मशीन , वेल्डिंग एचडीपी प्लास्टिक मशीन , PE-Rohrschweißmaschine , HDPE-Rohrschweißmaschine , Abwasser-PE-Rohrschweißmaschine , stumpfschweißmaschine für hdpe-rohre , schweißen hdpe kunststoff maschine , Kunststoffrohrschweißmaschine , plastik quvurlar payvandlash mashinasi , PE quvur manba mashinasi , hdpe quvur manba mashinasi , Kanalizatsiya pe quvurlari payvandlash mashinasi , pe quvurlari uchun quvurli payvandlash mashinasi , Խողովակների եռակցման մեքենա PE խողովակի համար , PE խողովակի եռակցման մեքենա , hdpe խողովակների եռակցման մեքենա , եռակցման hdpe պլաստիկ մեքենա , hdpe խողովակների եռակցման մեքենա , PE boru qaynaq maşın , hdpe boru qaynaq maşın , Yarı hidrolik PE boru qaynaq makinası , qaynaq hdpe plastik maşın , hdpe boru üçün butt qaynaq maşın , tam əlli PE boru qaynaq makinası , PE boru qaynaq maşın , hdpe boru qaynaq maşın , Yarı hidrolik PE boru qaynaq makinası , qaynaq hdpe plastik maşın

پیئ پائپ ویلڈنگ مشین , hdpe پائپ ویلڈنگ مشین , hdpe پائپوں کے لئے بٹ ویلڈنگ مشین , مکمل ہائیڈرولک بٹ فیوژن مشین , ہائیڈرالک بٹ فیوژن مشین , د پائپ ویلډینګ ماشین , د ویلډنګ ماشین

Read moreShow less
Product Details

Data sheet

Name
RSCo electrical HDPE pipe welding heat plate
Device Model
Welding apparatus size
2500 V Italian
Welding plate power range
300 C
Input voltage
220-230 V
After-sale services
5years RSCo after sale service
Warranty
12months
Stand
does not have
Quality rating by Rastegar Sanat from 0 to 100
Shipping Box
exist
Made in
Iran
Reviews (0)

No customer reviews for the moment.
