RSCO manual PE pipe welding machine

Information:

• The ability to weld PE pipes and fittings of sizes: 63-160 mm
• Manual or electric gearbox scraper 1 kilo watt with SPK hardened steel blades
• A 1.5 kilo watt electric heater with PTFE cover

• Power source : 220 v 50 hertz
• Power : 2.5 kilo watt
• Maximum heater temperature : 270 degrees
• Display system to indicate input voltage
• Packed in wooden pallet for easy handling
• Jaws made of die casting aluminum with electrostatic paint cover
• Temperature deviation : +/- 5 degrees
• Weight : 62 kg
• Dimension : 70*49*60 cm
• Internal jaws sizes: 63, 75-90, 110, 125, 140 mm
• All Rastegar Sanat PE pipe welding machines are made of 100% pure aluminum alloy
• 1-year warranty and 10-years after-sale services of RSCo
• ISO 9001 and CE standards
• For more info contact us via webpage

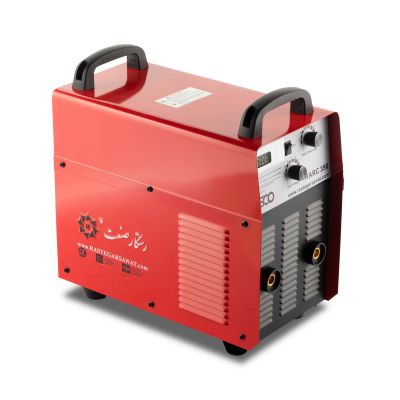

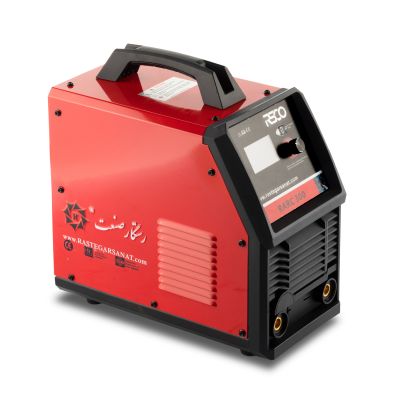

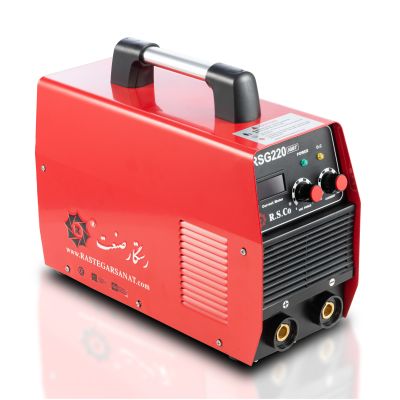

RSCO Welding Inverter

Information:

• To weld all kinds of iron galvanized, steel, carbon steel, cast iron, and etc.
• Working current: 20-220 amp
• 6 automatic charging capacitors
• IGBT technology
• Input power swing system
• Industrial fireproof high-pressure input power cable
• Voltage increasing in high frequency and low welding spraying technology, significant welding arc, and easy usability
• Weldable electrodes' sizes: 2, 2.5, 3.2, 4 mm permanently and 5 mm cross-sectionally
• Suitable size, lightweight, low power consumption
• High-pressure sensor
• Ability to weld penetrating electrodes cross-sectionally
• Automatic arc adjustment system
• 3 separate electronic boards
• Toshiba Japan IC
• Voltage: AC220V ±20%
• Frequency: 50-60 Hz
• Power factor: 0.73
• No-load voltage: 60 V
• Input power: 7.3 kW
• Weight: 7.43 kg
• Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
• Automatic electrode adhesion system
• Miniature fuse to control the input power
• Can be used in high temperatures and tropical regions
• Accessories: refractory torch and cable, refractory ground cable and clamp, mask, combination wire brush
• ISO, SGS and, CE standards
• 30-months warranty and 5-years after-sale services
• Contact us for more information
