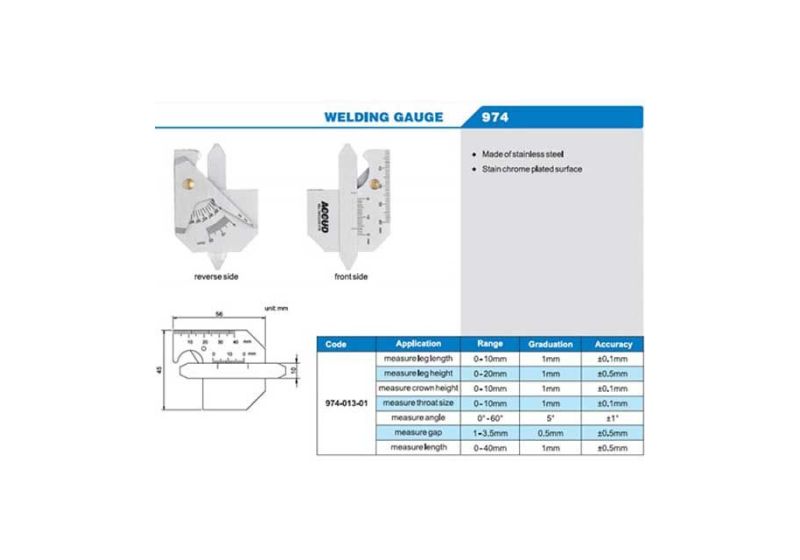

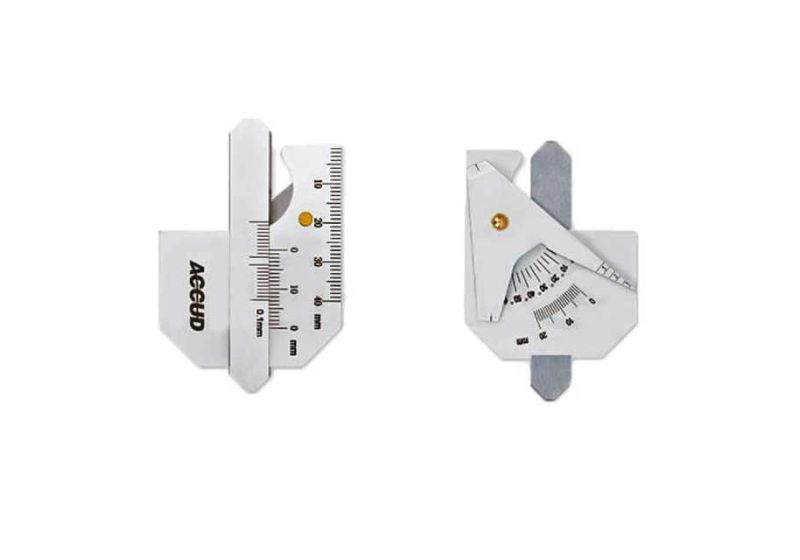

Accud welding gauge model 01-013-974

دسته بندی : گیج جوشکاری

welding gauge

Information:

  • The welding gauge is a tool that can be used to control the dimensions of welded parts and joints.
  • Manual operation system
  • The height of the welding leg: 0-20 mm with an accuracy of ± 0.5 mm
  • The length of the welding leg: 0-10 mm with an accuracy of ± 0.1 mm
  • The distance between two work pieces: 1 to 3.5 mm with an accuracy of ± 0.5 mm
  • The length of corner angles: 0 to 40 mm with an accuracy of ± 0.5 mm
  • The height of welding and corner welding: 0-10 mm with an accuracy of ± 0.1 mm
  • Measurement accuracy: ±0.05 mm
  • The measuring angle is 0 to 60 degrees with an accuracy of ±1° and a size division of 5°
  • 1 mm division
  • Division for the distance between two workpieces is 0.5 mm
  • Stainless steel body material
  • Made in China
موارد بیشتر
Add to wishlist
Add to compare0
Product Details

Data sheet

Name
welding gauge
Model
01-013-974
Function system
manual
Production material
Steel
Accuracy
±0.05 mm
Calibration sheet
available
Quality rating by Rastegar Sanat from 0 to 100
70
Made in
China
Angle
degrees 0 to 60
