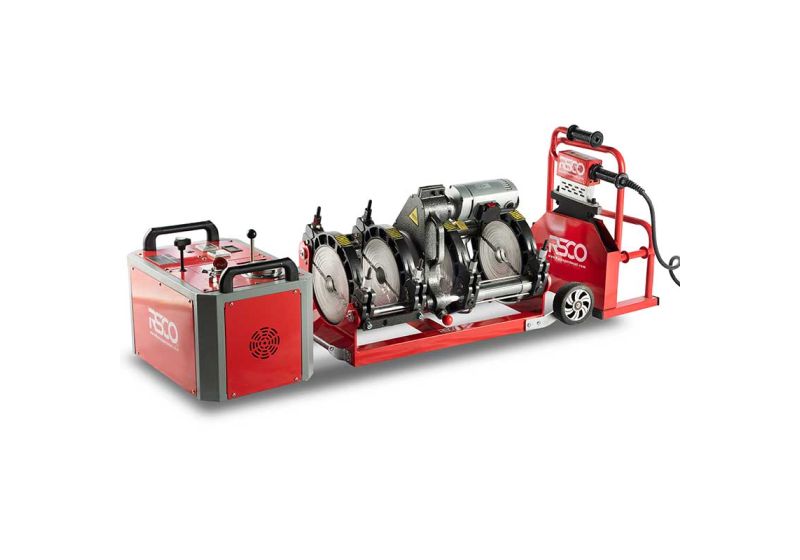

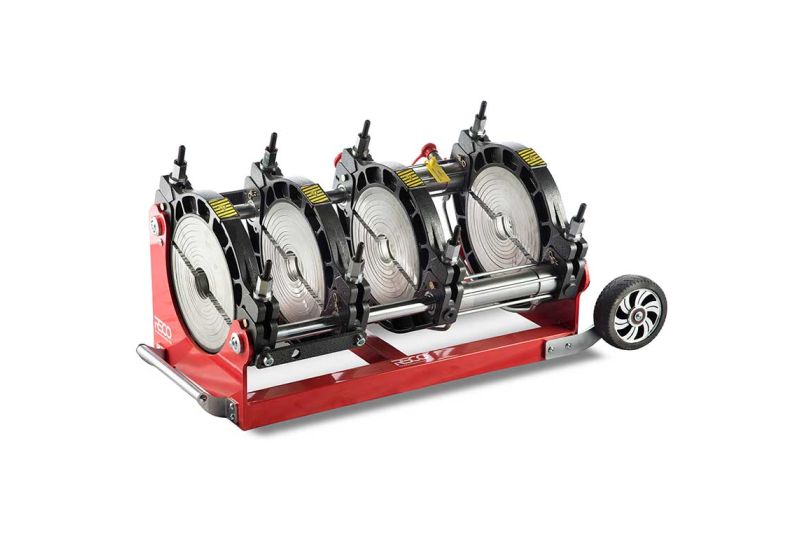

RSCO full hydraulic PE pipe welding machine HPD-315

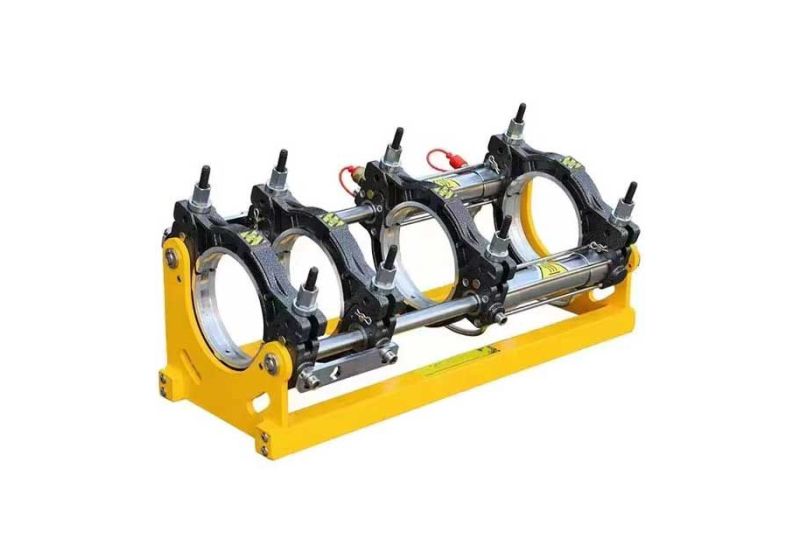

Full manual butt fusion machine (mode: M2 160, size: 50-160)

• Pe pipe welding machine isfor welding head of pipes in water supply networks.
• The pipes can be welded to be the same in diameter and thickness.
• We can weld PPR pipe by pe pipe welding machine.
• Welds that are outside the machine are covered by the respective caps to prevent airflow.

Types of devices about pe pipe welding machine:

• Full manual HDPE pipe welding machine.
• Semi-hydraulic HDPE pipe welding machine.
• Full hydraulic HDPE pipe welding machine.
• HDPE pipe manual welding machine.

Types of device based on application:

• PE pipe welding butt fusion.
• PE pipe welding electro fusion.
• PE pipe welding extroder.

Compeletly information:

• PE pipe welding machine is used for pipe welding and PE pipe bonding,in transmission lines.
• Welding extroder has another name like:extroder PE pipe welding,welding machine extroder,plastic welding extroder.pipe extroder,extroder pipe machine,extroder PE pipe .welding
• This pipe extroder has ability to weld all surfaces like pvc grades.
• PE pipe welding heater has ability to weld all PE pipes
• Pay attention to our need we have different models like electric PE pipe heater,digital PE pipe welding heater,gaseous PE pipe welding heater are available.
• PE pipe welding machine is used for metal,steel,carbonsteel,galvanized,castiron.

How to work with full manual HDPE pipe welding machine:

• Please attention how to work with this machine you must follow all the key points and how to use it.
• When you do welding don't work in rainy,snowy,cold or windy weather.
• Do welding in the space that the temprature is more than 0 degree.
• If the propulsion force is supplied by generator before starting your activity check the amount of fuel to avoid generator to turn off and make trouble during welding.
• If the propulsion force is supplied through the generator make the parts to break out it is out of our response.
• For doing the welding put the pipe in the place and clean up the pipe edge and trimmer the pipe.
• After that pick up the HDPE pipe welding heaters we have to connect the tube pipes to each other and weld them to each other too then give the time to be dry and cold.
• After few minutes remove the welding components from machine and let it to being cold.

Steps for welding operations:

• Bring the welding machine and its accessories into working place.
• For welding you need another person who can help you.
• The clips of the machine are prepared according to the pipe diameter.
• Connect the PE pipe machine to the power.
• Place the pipes at the appropriate place and clean the edeges of the pipes.
•  We do the grating.
• Put the HDPE pipe welding heaters in revelant place then make a pressure until pipe edge comes up about 1-4 mm.
• After that pick up the HDPE pipe welding heaters we have to connect the tube pipes to each other and weld them to each other too then give it time to be dry and cold.
• After a few minutes remove the welding components from the machine and let it cool down.

Important recommendations on welding:

• Before welding clean up the heater.
• Perform a trial before the main weldimg.
• Follow all steps in the test welding.
• The part of pipe that is  sticky can clean up the heater to be ready for next welding without dusty.
• If the sizes of the pipes are changed then a test weld must again be performed.
• It's best to wipe and clean underneath the welding equipment to prevent contamination and particle from making traoubles.
• Be sure to use 10 yellow hydraulic oil.

Information:

Full manual butt fusion machine (mode: M2 160, size: 50-160)

• Usage: welding altogether PE pipes in home and commercial sewages
• Includes single jaws in sizes: 63-160

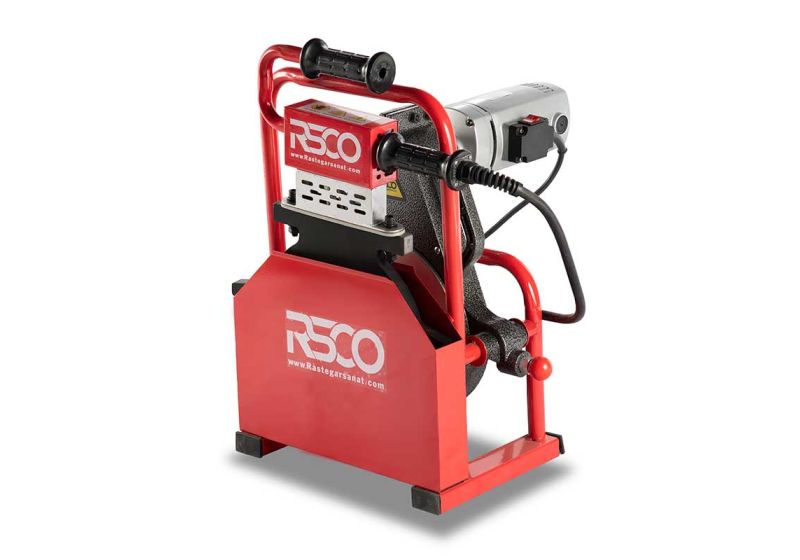

• Includes manual/electrical scraper with SPK hard steel
• 2000w electrical heater with industrial Teflon and fire proof
• 12Months warranty and 10 years after sale service from RSCo
• ISO 9001 and CE
• For more info contact us via webpage
