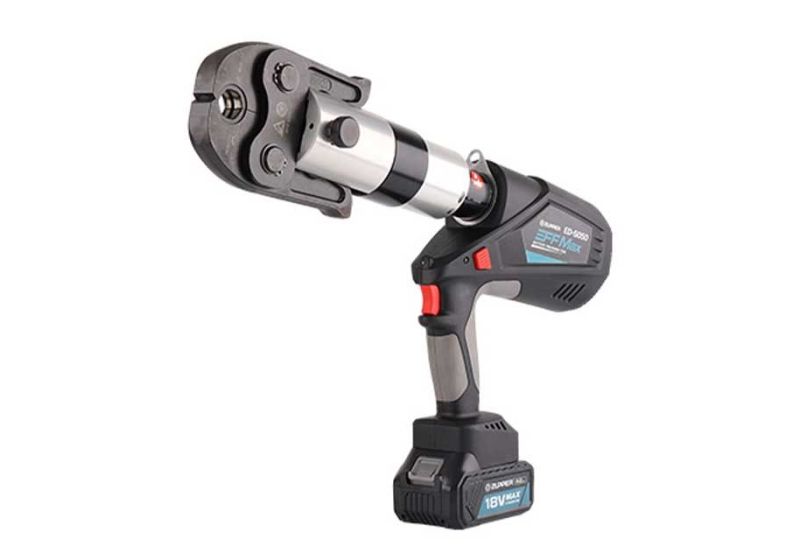

ZUPPER rechargeable pex pipe crimping gun ED-5050

Zupper pex pipe crimping gun

Information:

  • This  Zupper crimping tool presses all PEX pipe.
  • Working temperature : -10 to 40 degree
  • Size of metal pressing : 12-54 mm  or 1.2-2 inch
  • Size of mess and pex pipe pressing : 12-108 mm or 1.2-4 inch
  • Output power : 50 kn
  • LED light for easy work
  • Pressing time : 3-6 s ( depends on size of jaw )
  • Battery capacity : 180 cycle pressing ( depends on dimension , material and battery capacity )
  • 2 Ion-lithium battery 18v 4A
  • Cylinder made by steel
  • Battery charger ; AC and 100-240v
  • Charging time : 80 min
  • Piston stroke : 50 mm
  • Need to service after 3000 press
  • LED screen to display information  ( battery percentage , press number , errors cod )
  • Weight with battery : 4.7  kg
  • Belongs : charger , durable plastic box
  • Made in china
  • 1 year warranty and after-sale service.
  • For more information call or visit the webpage.
Read moreShow less
$1,305.00
Delivery: 1 to 3 weeks

فقط 1 عدد در انبار باقیست - پیش از اتمام بخرید

Description

Introducing pex pipe Press Tube Press:

  • Pex pipe tube press is used to press pipes and fittings.
  • It is worth mentioning that pex pipes are pressed with pex pipe presses.
  • These presses include manual pex pipe presses pex pipe press hydraulic pipe presses, pex pipe presses, and pex pipe presses.
  • All pex pipe press flexible pipe presses are capable of pressing all pipes and fittings (SuperPip, NewPipe, Unicip Pip).

A step on the charge press:

  • Jaw presses for welding and interchangeable jaws.
  • The set piece for this machine is pex pipe press for adjusting the jaws.
  • Gully is a gun jigger for adjusting the jaws.
  • The trigger of pex pipe-loaded press machine is for the start-up of the machine.
  • Return button for manual piston return when the function is in the wrong mode.
  • The status lamp of the crimping press is used to indicate the device status and warning.
  • The battery button is a pex pipe charger tube for opening and closing the battery.
  • The battery is a device for propulsion of the device.

Know more:

  •  Firstly, the pex pipe press can be cut with a cutter (or pipe cutter, pipe cutter, pipe shears, ppr pipe cutter, ppr pipe cutting shears)
  • Cut it to the desired size with a caliber tool inside the pex pipe (it can be bended through the pex pipe by bending the pipes)
  • Slightly loosen and using the blades at the end of the caliber, with the rotary motion of the inner wall of the pex pipe (which can be riveted by rolling the pex pipe into these pipes).
  • It is very important to do this because the pex pipe wall can be bended with the five-layer tube bending spring before winning the calibration.
  • Therefore, the rubber thread may break the connection during installation, which can lead to false positives and leakage of water.
  • In the end, after the first caliper, the connecting pin of the five-layer pipe (which can be pressed by a pex pipe, which includes a pex pipe , electric, manual, and hydraulic press) is pressed.
  • In the installation procedure for fittings such as couplings, it is necessary to calibrate the pex pipes (which are installed with a pex pipe) before installation.
  • Then, the pex pipe can be fitted with a manual press of a pex industrial pipe.
  • These pex pipe can be easily opened with the roller opening of the five-layer industrial pipe.
  • After the completion of the piping, when the pipes are filled with water, after the pipes are dripping and the openings are closed, we test the tubes by the plumbing test devices (in the form of a manual pump test device and an electric pump test device).
  • To detect the pipe fault, the leak detector can be detected by the professional handheld researcher.
  • lt also has gas leak detectors.

Warning:

  • Batteries can be used up to 1000 times, but the battery life will be charged automatically.
  • When starting, check the battery charge and warning light mode to make sure the device is healthy.
  • Select the correct jaw size for the job.
  • Do not use the machine without jaws.
  • Place the main jaw inside the appliance and then rotate the adjusting knob clockwise.
  • The permitted working temperature is 10-40 ° C.

Information and accessories:

RSCo PEX pipe crimping tool (ACC-model:EZ):

  • This RSCo crimping tool, presses all PEX attachments from sizes: 16 - 32 mm and 40 - 110.
  • This RSCo crimping tool includes single steel jaws in sizes: 16, 20, 25 , 32.
  • This RSCo crimping tool includes 2 big lithium batteries with an 18 v adaptor.
  • Includes strong box.
  • 1Year warranty.
  • For more information call or visit the webpage.

electric hydraulic pex pipe press,cordless hydraulic pex pipe press,pipe press tool,electrical pipe pressing tool,compact press tool,battery powered pex pipe pressing,battery powered ,pex pipe press,battery powered pressing tools

Read moreShow less
Product Details

Data sheet

Name
ZUPPER rechargeable pex pipe crimping gun
Model
ED-5050
Crimping size
12-108 mm
Power
50 kn
After-sale services
1year
Function system
rechargeable
Warranty
12 months
Quality rating by Rastegar Sanat from 0 to 100
70
Shipping Box
Available
Made in
china
Battery number
2
Weight
4.7 kg
Battery capacity
18v 4A
Reviews (0)

No customer reviews for the moment.

You may also like
$2,610.00

Novo Press Battery powered pipe press

Information:

  • The capability to press plastic and metal pipes.
  • Lightweight and very easy to work even in overhead situations.
  • The need for maintenance for the complete tool is significantly reduced due to the new motor technology.
  • Ergonomic design.
  • Illumination of the press area.
  • No limitation of the pressing cycles within the 2-year maintenance interval.
  • The Brushless Motor Technology in which causes Faster pressing cycles.
  • Analysis of the pressing tool performance via NovoCheck app.
  • Dimensions metal pipe: up to 54 mm (depending on system up to 108mm).
  • Dimensions plastic pipe: up to 110 mm
  • Piston force: 32 KN.
  • Piston stroke: 40 mm
  • It Weighs: 2,3 kg
  • Length: 387 mm
  • Width: 75 mm
  • Height: 111 mm
  • Power consumption: 450 W
  • The pressable weight: up to 8000 kg
  • Battery: Milwaukee® M18™ battery system (all Milwaukee® capacities in the market can be used)
  • Battery capacity: up to 250 pressing cycles (depending on dimension and material).
  • Charging time: 45 - 75 min (depending on battery capacity).
  • Made in Germany.
  • 1-year warranty and 10-years after-sales service.
  • Service will be done under 48 hours.
  • Rastegar Sanat Company (R.S.Co) provides Service and repairment for all neighboring countries.
  • Contact us for more information.
$94.50

PEX pipe staple gun

Information:

  • This manual mallet drives PEX plastic nails specialized for clamping PEX pipes.
  • Made of light iron.
  • Provided holder tank for the nails.
  • The handle of this PEX pipe calibrator has antiperspirant and non-slip plastic cover for ease of work.
  • High construction quality.
  • Made in IRAN
  • For more info contact us via the webpage.
$177.30

RSCo hydraulic PEX pipe bender

Information:

  • Usage: all kinds of PEX pipes, PVC pipes, copper, aluminum, and brass in any angel to 90 in size 10-22 mm.
  • Single jaws (high pressure aluminum) in sizes: 10, 12, 14, 15, 16, 18, 20, 22 mm.
  • Made from the best-alloyed steel.
  • Plastic strongbox.
  • Single adjustable steel belts in sizes: (10, 12, 14 mm) - (15, 16, 18 mm) - (20, 22 mm).
  • Includes ISO9001 and CE.
  • For more info call us on the webpage.
$123.30

 RSCo PEX pipe bender

Information:

  • Usage: all kinds of PEX pipes, PVC pipes, copper, aluminum, and brass in any angel to 90.
  • Single jaws (high-pressure aluminum) in sizes: 16, 20, 25, 32 mm.
  • Made from group 7000 aluminum.
  • Plastic strongbox.
  • Single adjustable steel belts in sizes: 16, 20, 25, 32 mm.
  • Includes ISO9001 and CE.
  • RSCo after-sale service.
  • For more info call us on the webpage.
$5.13

RSCo PEX pipe spring bender

Information:

  • This spring bender is using for bending PEX pipes.
  • size: 16 mm.
  • This spring bender is manual.
  • This spring bender is made of the highest quality of alloyed steel.
  • Included plating cover for increasing the longevity.
  • Contact us for more info.
$26.73

RSCo bladeless bar calibrator (set)

Information:

  • This  calibrator is used for calibrating (measuring) all kinds of PEX pipes.
  • Size: 16 , 20 , 25 , 32 mm
  • These PEX calibrators are made of alloyed steel.
  • This five-layer pipe calibrator has inner and outer steel blades for peeling and calibrating the end of the pipe.
  • The handle of this PEX pipe calibrator has an antiperspirant and non-slip plastic cover for ease of work.
  • It has all-steel scrapping the filings blades.
  • This calibrator includes CE and ISO.
  • For more information contact us via phone no and visit the webpage.
battery powered press tool, pex press hand tool battery powered press tool, pex press hand tool
Limited time offer
$1,472.76 $1,521.00

RSCo battery powered pex pipe press

Information:

  • This RSCo crimping tool presses all PEX attachments from size 16 - 90 mm.
  • Operation Power: 7 tonnes.
  • Single steel jaws in sizes: 16, 20, 25, 32 mm.
  • ACC automatic pump system to adjust the pressure.
  • Battery output: 3 Amp.
  • Includes hydraulic automatic transmission.
  • Power type: DC 18 v.
  • Sealing pressure: 16 bar.
  • 1-year warranty and 5-years after-sale service.
  • Includes CE and ISO standards.
  • For more information call or visit the webpage.
$267.84

RSCo static hydraulic PEX pipe press

Information:

  • The ability to press all kinds of pipe (superpipe, new pipe, unique pipe).
  • pressable size: 16-32 mm.
  • 4 Steel jaws: 16, 20, 25,32 mm.
  • Durable metal box.
  • All steel body with high height.
  • Maximum sealing: 16 bar.
  • Iso9001 and CE standards.
  • 6-month warranty and service.
