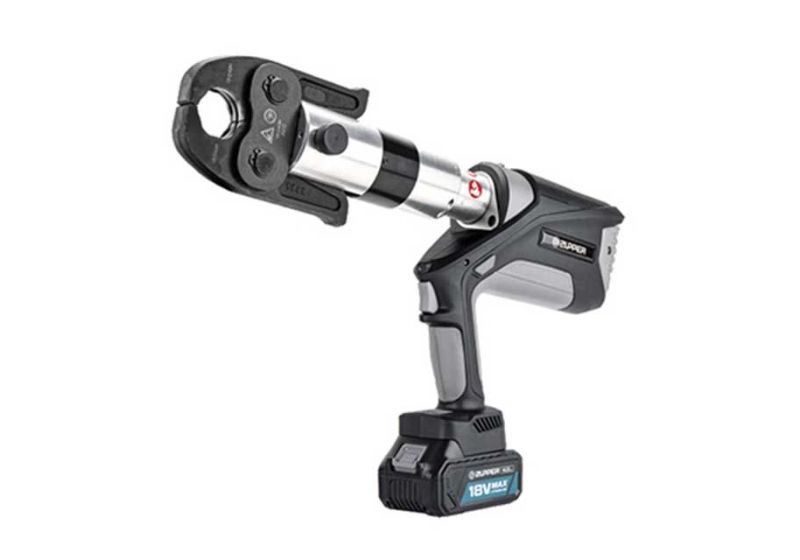

ZUPPER rechargeable pex pipe crimping gun EB-1550

دسته بندی : PEX pipe pressing tool

ZUPPER pex pipe crimping gun

Information:

  • This  Zupper crimping tool presses all PEX pipe.
  • Equipped to Bluetooth to connect ZUPPER APP in mobile
  • Ability to transfer data between mobile and APP
  • Ability to display the last place that used the device
  • Ability to checking pressure by sensor
  • Ability to analyze tool performance by ZUPPER APP
  • Size of metal pressing : 15-54mm or 1.2-2 inch
  • Size of mess and pex pipe pressing : 12-108 mm or 1.02-4 inch
  • Output power : 32 kn
  • LED light for easy work
  • Pressing time : 3-6 s ( depends on size of jaw )
  • Oil tank capacity : 115 ml
  • Battery capacity : 360 cycle pressing
  • Ion-lithium battery 18v 4A
  • Automatic return to first mode
  • Battery charger ; AC and 100-240v
  • Charging time : 80 min
  • Piston stroke : 40 mm ( adjustable )
  • Need to service after 1000 press
  • LED screen to display information
  • Weight with battery : 3.8 kg
  • Weight with battery and jaw : 6 kg
  • A head with ability to 350 degree rotation
  • Dimension : 400*318*86 mm
  • Belongs : charger , durable plastic box
  • Made in china
  • 1 year warranty and after-sale service.
  • For more information call or visit the webpage.
موارد بیشتر
Add to wishlist
Add to compare0
Last items in stock
$1,346.40
Delivery: 1 to 3 weeks

فقط 1 عدد در انبار باقیست - پیش از اتمام بخرید

Product Details

Data sheet

Name
ZUPPER pex pipe crimping gun
Model
EB-1550
Crimping size
12-108 mm
Power
32 kn
After-sale services
1 year
Function system
rechargeable
Warranty
12 months
Quality rating by Rastegar Sanat from 0 to 100
70
Shipping Box
Available
Made in
china
Battery number
2
Weight
6 kg
Dimensions
400x318x86 mm
Battery capacity
18v 4A
Description

Introducing pex pipe Press Tube Press:

  • Pex pipe tube press is used to press pipes and fittings.
  • It is worth mentioning that pex pipes are pressed with pex pipe presses.
  • These presses include manual pex pipe presses pex pipe press hydraulic pipe presses, pex pipe presses, and pex pipe presses.
  • All pex pipe press flexible pipe presses are capable of pressing all pipes and fittings (SuperPip, NewPipe, Unicip Pip).

A step on the charge press:

  • Jaw presses for welding and interchangeable jaws.
  • The set piece for this machine is pex pipe press for adjusting the jaws.
  • Gully is a gun jigger for adjusting the jaws.
  • The trigger of pex pipe-loaded press machine is for the start-up of the machine.
  • Return button for manual piston return when the function is in the wrong mode.
  • The status lamp of the crimping press is used to indicate the device status and warning.
  • The battery button is a pex pipe charger tube for opening and closing the battery.
  • The battery is a device for propulsion of the device.

Know more:

  •  Firstly, the pex pipe press can be cut with a cutter (or pipe cutter, pipe cutter, pipe shears, ppr pipe cutter, ppr pipe cutting shears)
  • Cut it to the desired size with a caliber tool inside the pex pipe (it can be bended through the pex pipe by bending the pipes)
  • Slightly loosen and using the blades at the end of the caliber, with the rotary motion of the inner wall of the pex pipe (which can be riveted by rolling the pex pipe into these pipes).
  • It is very important to do this because the pex pipe wall can be bended with the five-layer tube bending spring before winning the calibration.
  • Therefore, the rubber thread may break the connection during installation, which can lead to false positives and leakage of water.
  • In the end, after the first caliper, the connecting pin of the five-layer pipe (which can be pressed by a pex pipe, which includes a pex pipe , electric, manual, and hydraulic press) is pressed.
  • In the installation procedure for fittings such as couplings, it is necessary to calibrate the pex pipes (which are installed with a pex pipe) before installation.
  • Then, the pex pipe can be fitted with a manual press of a pex industrial pipe.
  • These pex pipe can be easily opened with the roller opening of the five-layer industrial pipe.
  • After the completion of the piping, when the pipes are filled with water, after the pipes are dripping and the openings are closed, we test the tubes by the plumbing test devices (in the form of a manual pump test device and an electric pump test device).
  • To detect the pipe fault, the leak detector can be detected by the professional handheld researcher.
  • lt also has gas leak detectors.

Warning:

  • Batteries can be used up to 1000 times, but the battery life will be charged automatically.
  • When starting, check the battery charge and warning light mode to make sure the device is healthy.
  • Select the correct jaw size for the job.
  • Do not use the machine without jaws.
  • Place the main jaw inside the appliance and then rotate the adjusting knob clockwise.
  • The permitted working temperature is 10-40 ° C.

Information and accessories:

RSCo PEX pipe crimping tool (ACC-model:EZ):

  • This RSCo crimping tool, presses all PEX attachments from sizes: 16 - 32 mm and 40 - 110.
  • This RSCo crimping tool includes single steel jaws in sizes: 16, 20, 25 , 32.
  • This RSCo crimping tool includes 2 big lithium batteries with an 18 v adaptor.
  • Includes strong box.
  • 1Year warranty.
  • For more information call or visit the webpage.
