Low Height Hydraulic Jack
/

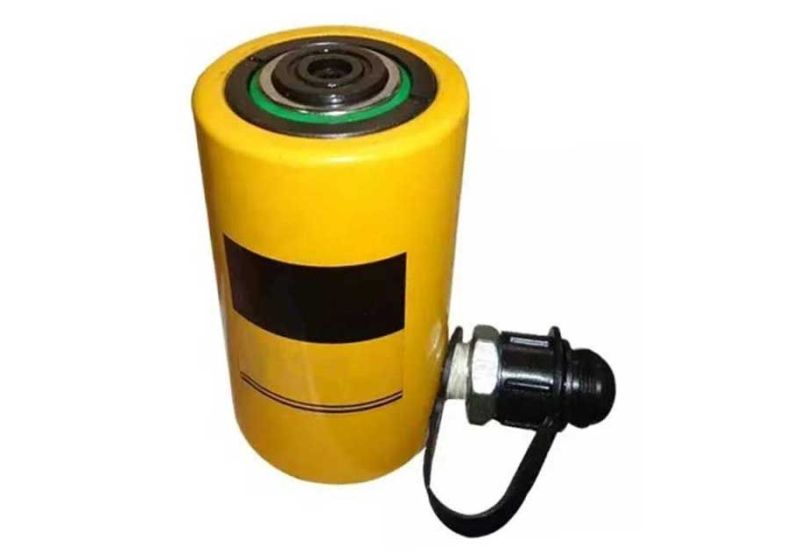

RSCO One Way Hydraulic Jack Cylinder 100 tons HSB5-100T

RSCO One Way Hydraulic Jack Cylinder 100 tons HSB5-100T

RSCO One Way Hydraulic Jack Cylinder 100 tons HSB5-100T

Brand:

آر اس کو RSCO

دسته بندی : Low Height Hydraulic Jack

Hydraulic Jack Cylinder

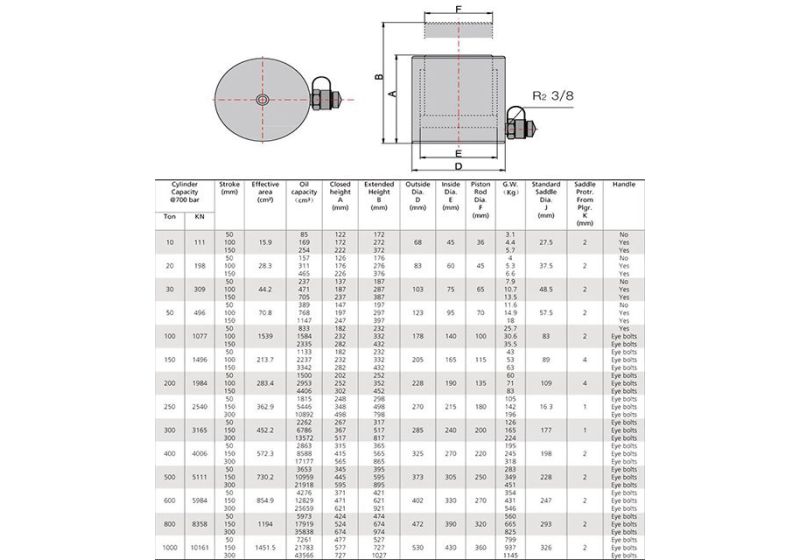

Information:

Cylinder capacity 100 ton / 1077 KN
stroke 50mm
effective area 153.9 cm2
oil capacity 833 cm3
closed height 182 mm
extended height 232 mm
outside diameter 178 mm
inside diameter 140 mm
piston rod diameter 100 mm
weight 25.7 kg
Standard saddle diameter 83 mm
handle : yes
Working pressure :700bar
Made in China
After sale services
Contact us for more information

Add to wishlist

Add to compare0

out of stock

Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.

موجود شد خبرم کن

Product Details
Reviews (0)

Product Details

Data sheet

Name: Hydraulic Jack Cylinder

Model: HSB5-100T

After-sale services: 1 YEAR

Function system: hydraulic

Maximum pressure: 700 bars

Warranty: unavailable

Quality rating by Rastegar Sanat from 0 to 100: 75

Made in: China

Weight: 25.7 kg

Overall length: 232 mm

Tank capacity: 833cm3

نوع جک: One Way Hydraulic Jack

ظرفیت جک: 100t
