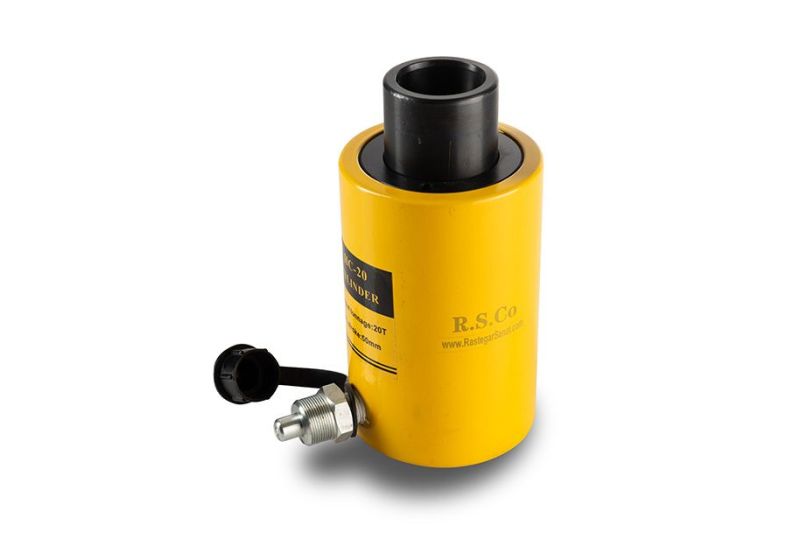

RSCO Single-acting Hollow Plunger Cylinders HCB5-100T

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Minimum Operating Pressure 35 bar
• Capacity Class 16t
• Stroke 260mm
• Extended Height 751 mm
• Return Type Double-Acting, Hydraulic Return
• Material : steel
• Cylinder Effective Area Advance 20.3 cm2
• Cylinder Effective Area Retract 10.6 cm2
• Oil Capacity Advance 528 cm3
• Oil Capacity Retract 276cm3
• Cylinder Capacity Advance At 350 : 69bar
• Cylinder Capacity Retract At 350 : 36.9 bar
• Surface Treatment : paint
• Weight : 14.5 kg
• Made in USA
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 5 ton
• Maximum Cylinder Capacity Advance 550 kn
• Stroke 150 mm
• Collapsed Height 264 mm
• Extended Height 414 mm
• Return Type : Single-Acting, load Return
• Material : steel
• Cylinder Effective Area Advance 78,5 cm2
• Oil Capacity Advance 1178 cm3
• Weight : 27 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Maximum working power: 100 tons
• Working pressure: 42.2 Mpa
• Available in 100-6000 tons
• Lifting size: 41 mm
• Length when the shaft is closed: 330 mm
• High build quality
• External diameter: 146 mm
• Weight: 33 kg
• Made in China
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 5 ton
• Maximum Cylinder Capacity Advance 45kn
• Stroke 177mm
• Collapsed Height 273mm
• Extended Height 450 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 6.4 cm2
• Oil Capacity Advance 115 cm3
• Weight : 2.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50 ton
• Maximum Cylinder Capacity Advance 498 kn
• Stroke 51mm
• Collapsed Height 176 mm
• Extended Height 227 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 71.3 cm2
• Oil Capacity Advance 362 cm3
• Weight : 15 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• capacity : 3 tons
• Max height : 194 mm
• Minimum height : 118 mm
• adjust height 60 mm
• Suitable for heavy and industrial work for a long time
• Equipped with a heated and resistant auxiliary screw for height adjustment
• Made with high quality
• Weight : 3.6 kg
• Made in China
• Contact us for more information.

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity 890 kn
• Stroke 153 mm
• Jack Effective Area 133.1 cm2
• Pump Speed : 2-Speed
• Weight 74.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Bottle Jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• capacity : 10 tons
• Max height : 460 mm
• Minimum height : 230 mm
• adjust height 60 mm
• It has a wide and very strong base for greater stability and strength
• It has a two-piece lever to open the oil jack
• Steel auxiliary screw for height adjustment and safety valve
• It has a series of teeth for greater safety when lifting the car
• Made with high quality
• Weight : 6.5 kg
• Made in China
• Contact us for more information.
