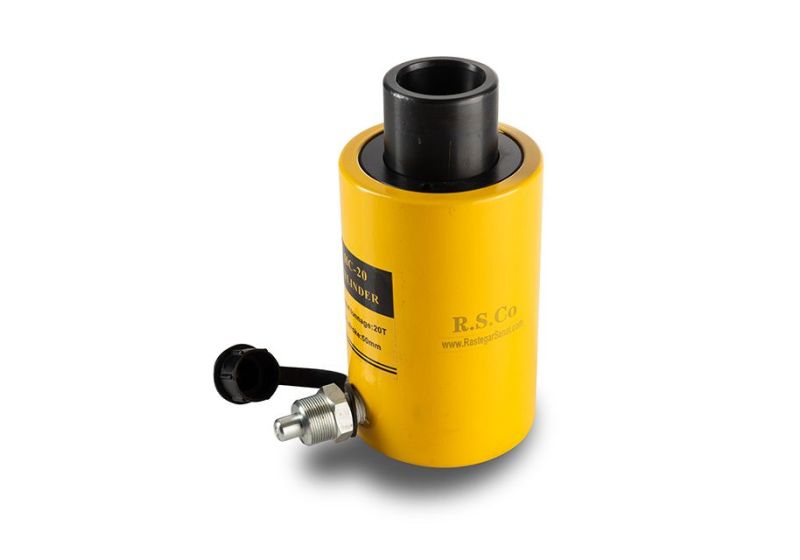

RSCO Single-acting Hollow Plunger Cylinders HCB10-20T

Hydraulic Jack Cylinder

Information:

• Cylinder capacity 200 ton / 1984 KN
• stroke 150mm
• effective area 283.4 cm2
• oil capacity 4406 cm3
• closed height 302 mm
• extended height 452 mm
• outside diameter 228 mm
• inside diameter 190 mm
• piston rod diameter 135 mm
• weight 83 kg
• Standard saddle diameter 109 mm
• handle : yes
• Working pressure 700bar
• Made in China
• Designed for use in all positions
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Dust wiper on piston rod reduces contamination
• Baked enamel finish for increased corrosion resistance
• All cylinders are proof tested to 125% of capacity before leaving our factory
• 1 year After sale services
• Contact us for more information

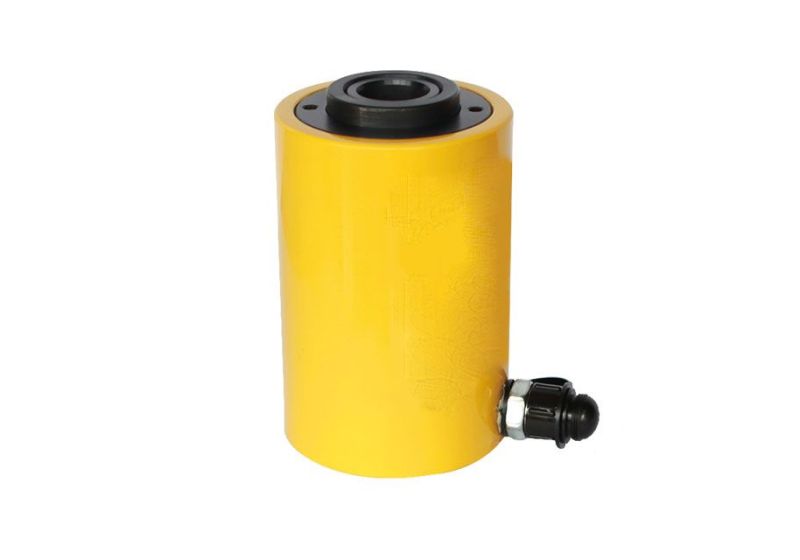

Hydraulic Jack

Information:

• Power: 60 tons / 562 KN
• stroke 50mm
• Effective area: 80.3 cm
• Oil capacity: 402 cm3
• Closed mode height: 247 mm
• extended height 297 mm
• outside diameter 158 mm
• inside diameter 123 mm
• center hole(G) : 54 mm
• piston rod diameter 91 mm
• Weight: 30.2 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

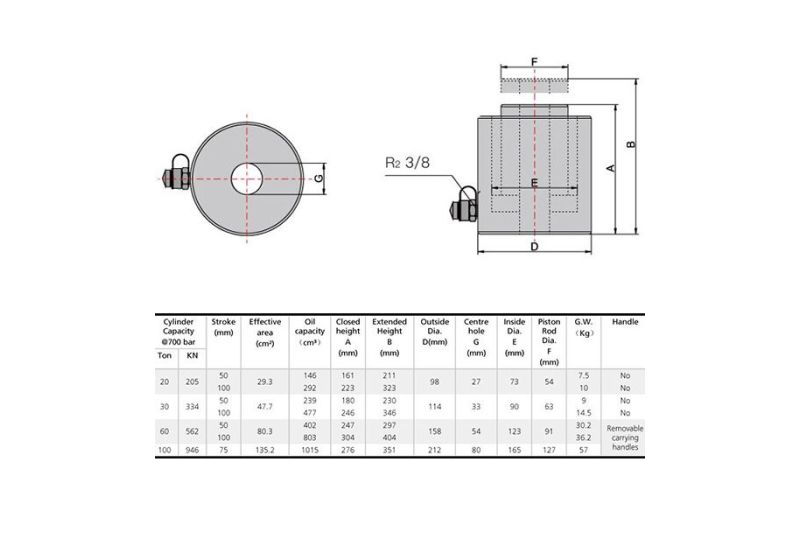

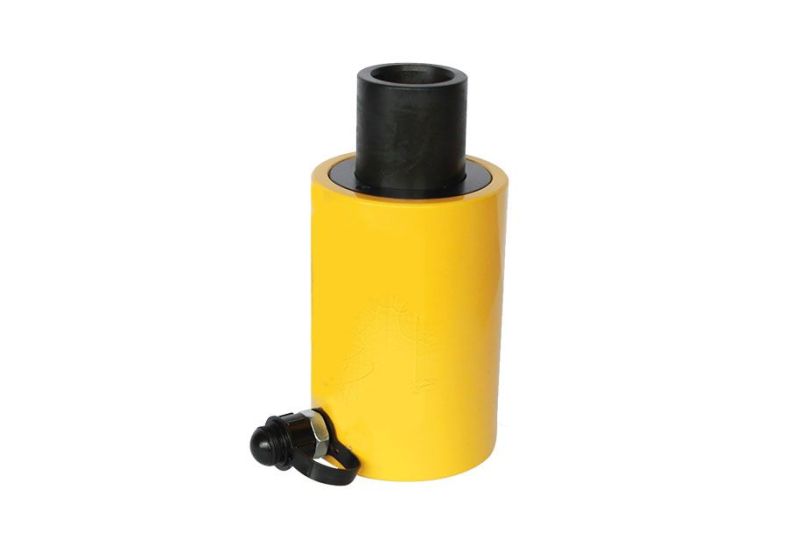

Hydraulic Jack

Information:

• Power: 20 tons / 205 KN
• stroke 50mm
• Effective area: 29.3 cm
• Oil capacity: 146 cm3
• Closed mode height: 160 mm
• extended height 211 mm
• outside diameter 98 mm
• inside diameter 73 mm
• center hole(G) : 27 mm
• piston rod diameter 54 mm
• Weight: 7.5 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 5 ton
• Maximum Cylinder Capacity Advance 45kn
• Stroke 177mm
• Collapsed Height 273mm
• Extended Height 450 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 6.4 cm2
• Oil Capacity Advance 115 cm3
• Weight : 2.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity 890 kn
• Stroke 153 mm
• Jack Effective Area 133.1 cm2
• Pump Speed : 2-Speed
• Weight 74.4 kg
• Made in USA
• After-sale services
• Contact us for more information
