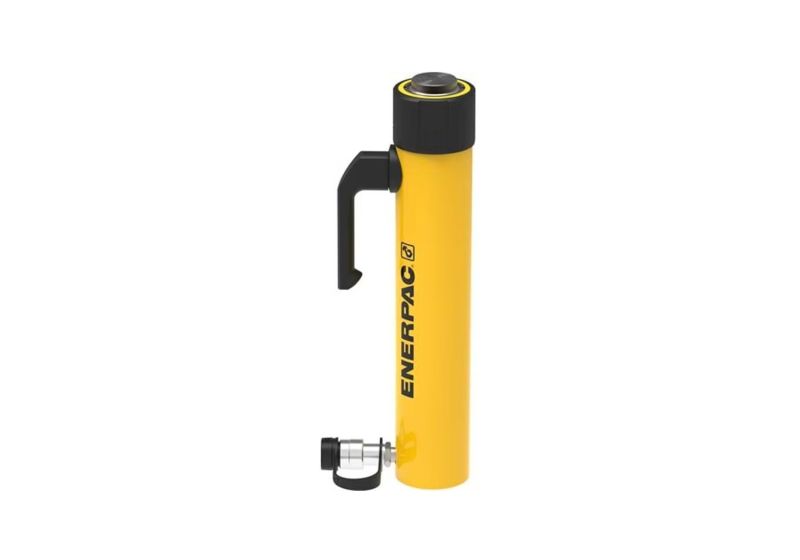

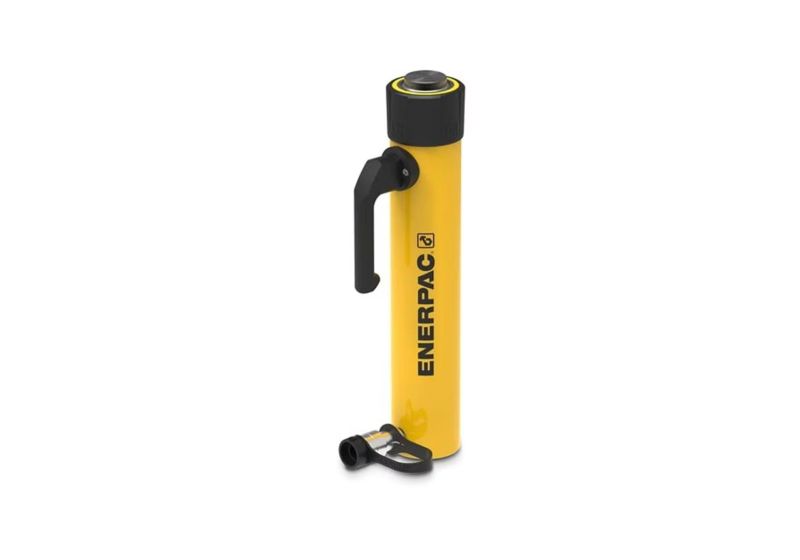

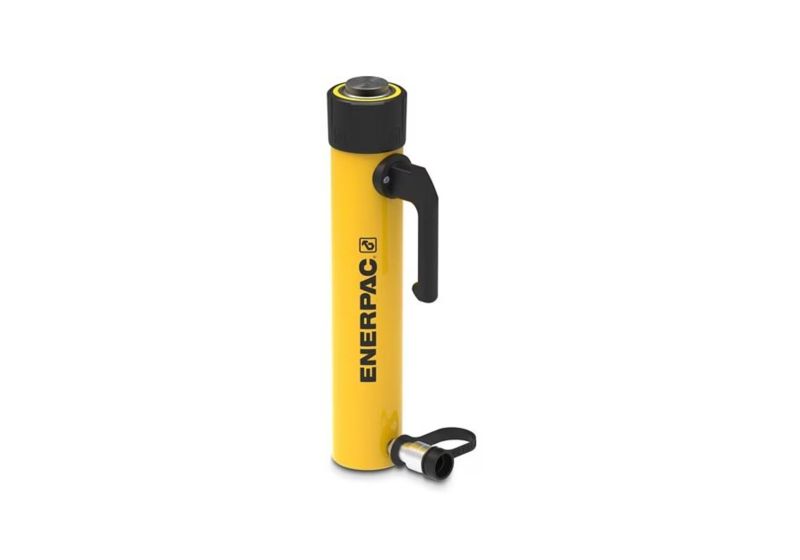

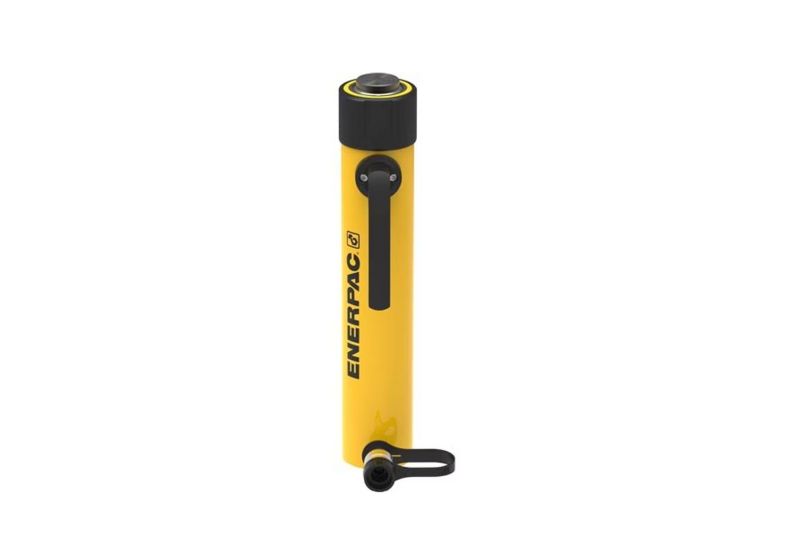

Enerpac General Purpose Cylinder Hydraulic Jack model RC 2514

Hydraulic Jack

Information:

• Power: 100 tons / 946 KN
• stroke 75mm
• Effective area: 135.2 cm
• Oil capacity: 1015 cm3
• Closed mode height: 276 mm
• extended height 351 mm
• outside diameter 212 mm
• inside diameter 165 mm
• center hole(G) : 80 mm
• piston rod diameter 127 mm
• Weight: 57 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Cylinder

Information:

• Power: 60 tons
• stroke 50 mm
• enter trace 562 kn
• return trace 377 kn
• Effective area enter trace : 80.3 cm2
• Effective area return trace 53.8
• Oil capacity enter trace : 402 cm3
• Oil capacity return trace 269 cm3
• Closed mode height: 202 mm
• extended height 252 mm
• outside diameter 158 mm
• inside diameter 123 mm
• center hole(G) : 54 mm
• piston rod diameter 91 mm
• Weight: 24.5 kg
• Made in China
• After-sale services
• Hollow plunger design allows for both push and pull forces
• Double acting, hydraulic return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack

Information:

• Cylinder capacity 250 ton / 2540 KN
• stroke 150mm
• effective area 362.9 cm2
• oil capacity 10892 cm3
• closed height 498 mm
• extended height 798 mm
• outside diameter 270 mm
• inside diameter 215 mm
• piston rod diameter 180 mm
• weight 196 kg
• Standard saddle diameter 163 mm
• handle : yes
• Working pressure 700bar
• Made in China
• Designed for use in all positions
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Dust wiper on piston rod reduces contamination
• Baked enamel finish for increased corrosion resistance
• All cylinders are proof tested to 125% of capacity before leaving our factory
• 1 year After sale services
• Contact us for more information

Hydraulic Jack

Information:

• Power: 30 tons / 334 KN
• stroke 50mm
• Effective area: 44.7 cm
• Oil capacity: 239 cm3
• Closed mode height: 180 mm
• extended height 230 mm
• outside diameter 114 mm
• inside diameter 90 mm
• center hole(G) : 33 mm
• piston rod diameter 63 mm
• Weight: 9 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage cylinder capacity : 665 kn
• Second-stage cylinder capacity : 309 kn
• third-stage cylinder capacity 111 kn
• Maximum working pressure: 700 bars
• stroke of stage one, two,three : 135 mm
• total stroke 435 mm
• effective area First-stage 95 cm2
• effective area Second-stage 44.2 cm2
• effective area third-stage 15.9cm2
• Oil capacity: 2250 cm
• closed height : 280 mm
• outside diameter 153 mm
• inside diameter First-stage 110 mm
• inside diameter Second-stage 75 mm
• inside diameter third-stage 45 mm
• standard saddle diameter 78 mm
• Weight: 40 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 10 mm
• effective area 19.9 cm2
• Cylinder capacity 10 ton / 111KN
• oil capacity 16 cm3
• closed height 48 mm
• extended height 58 mm
• outside diameter 83*60 mm
• inside diameter 45 mm
• piston rod diameter 38 mm
• weight 1.6 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 7 mm
• effective area 9.6 cm2
• Cylinder capacity 5 ton / 67KN
• oil capacity 7 cm3
• closed height 40 mm
• extended height 47 mm
• outside diameter 64*45 mm
• inside diameter 35 mm
• piston rod diameter 25 mm
• weight 0.75 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage power : 309 kN
• Second-stage power : 111 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 135 mm
• total stroke 270 mm
• effective area First-stage 44.2
• effective area Second-stage 15.9
• Oil capacity: 810 cm
• closed height : 250 mm
• outside diameter 110 mm
• inside diameter First-stage 75 mm
• inside diameter Second-stage 45 mm
• standard saddle diameter 45 mm
• Weight: 18 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information
