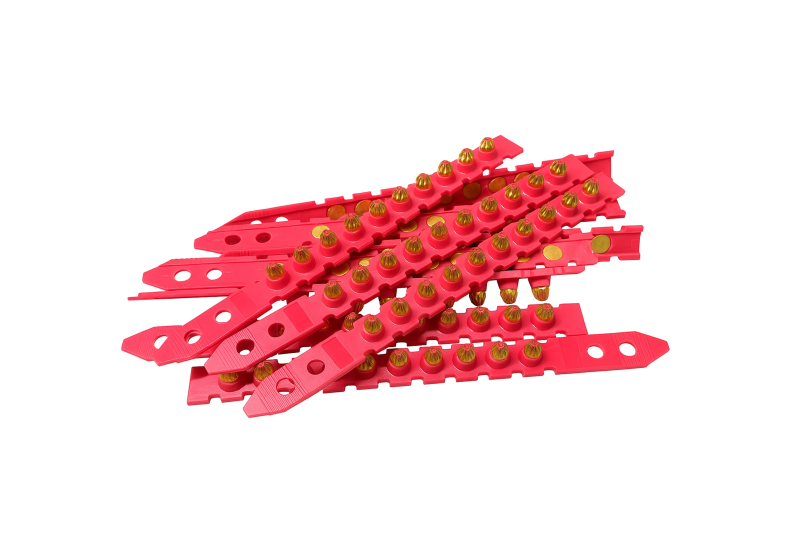

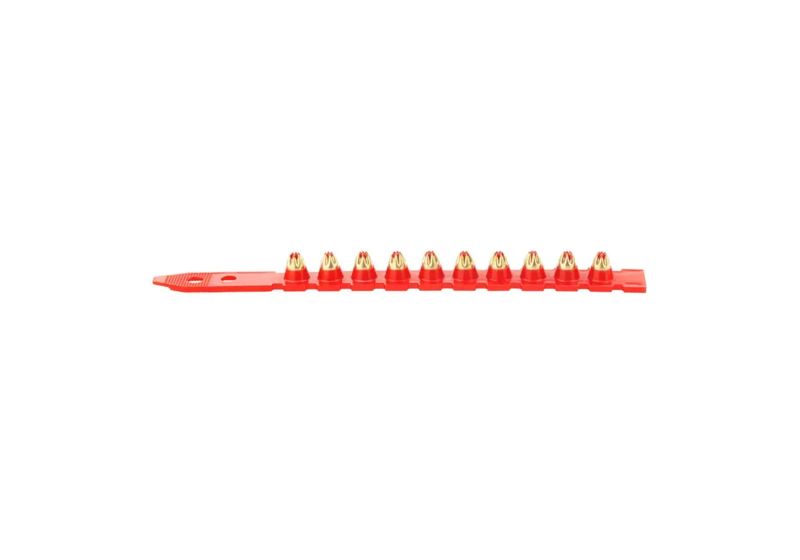

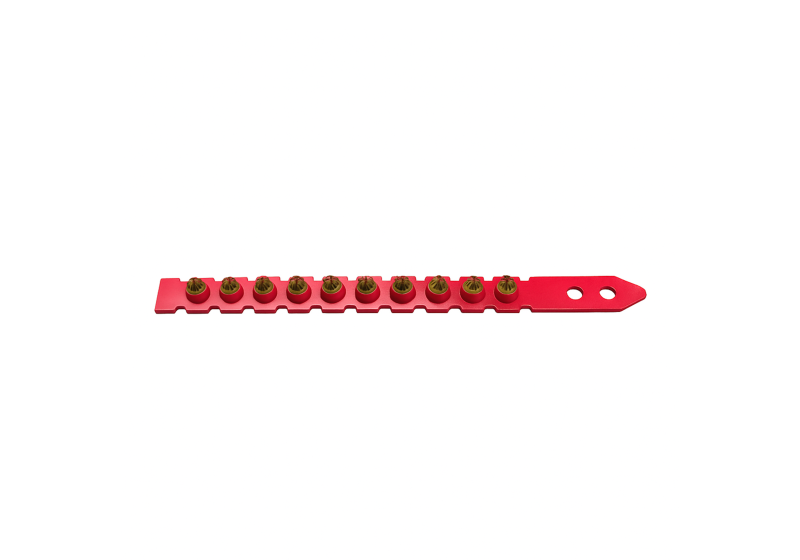

RSCO Caliber 27 plastic 10 shoots long stripe load model PLP1027

Nail gun's load

Powder actuated nail guns use specific loads, also known as cartridges or charges, to drive fasteners into hard materials. These loads are crucial for the tool’s operation and come in various calibers and power levels, each suited for different applications.

Types of Loads

 Calibers:
 ◦ .22 Caliber: Commonly used for light to medium-duty tasks.
 ◦ .25 Caliber: Suitable for medium to heavy-duty applications.
 ◦ .27 Caliber: Designed for heavy-duty tasks, providing the highest power.

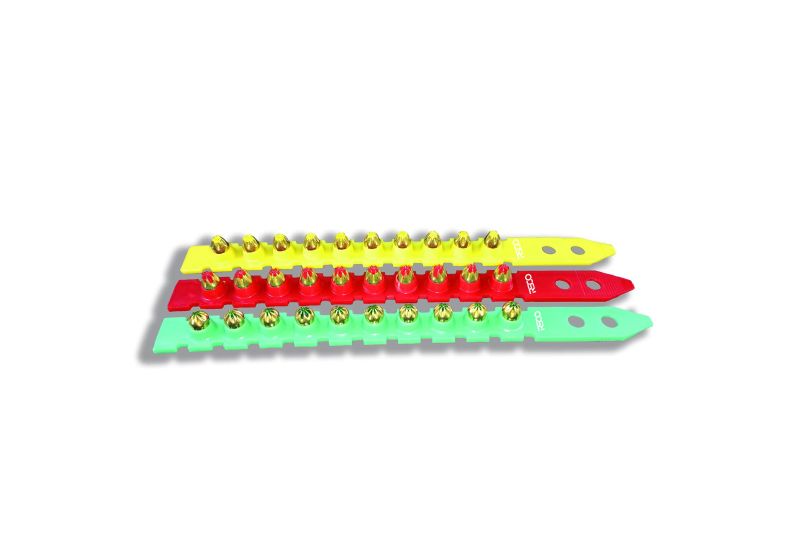

 Power Levels: The power level of a load is indicated by its color, which helps users quickly identify the appropriate load for their specific task. Here are the common color codes and their corresponding power levels:
 ◦ Gray: Least powerful, used for softer materials like lower strength concrete.
 ◦ Brown: Slightly more powerful than gray, also for softer materials.
 ◦ Green: Medium power, suitable for standard concrete and softer metals.
 ◦ Yellow: More powerful than green, used for harder concrete and steel.
 ◦ Red: Most powerful, designed for structural steel and very hard materials.

How Loads Work
The load is inserted into the tool, and when the trigger is pulled, the load’s chemical propellant ignites, creating a controlled explosion. This explosion generates the force needed to drive the fastener into the substrate. The choice of load depends on the material being fastened and the substrate’s hardness.

Safety Considerations
Using the correct load is essential for both safety and effectiveness. Overpowered loads can cause excessive force, potentially damaging the tool or the material, while underpowered loads may not drive the fastener properly. Always follow the manufacturer’s guidelines and safety instructions when selecting and using loads.

Conclusion
Understanding the different types of loads and their appropriate uses ensures that powder actuated nail guns operate safely and efficiently. By selecting the right caliber and power level, users can achieve optimal results in their fastening tasks.
