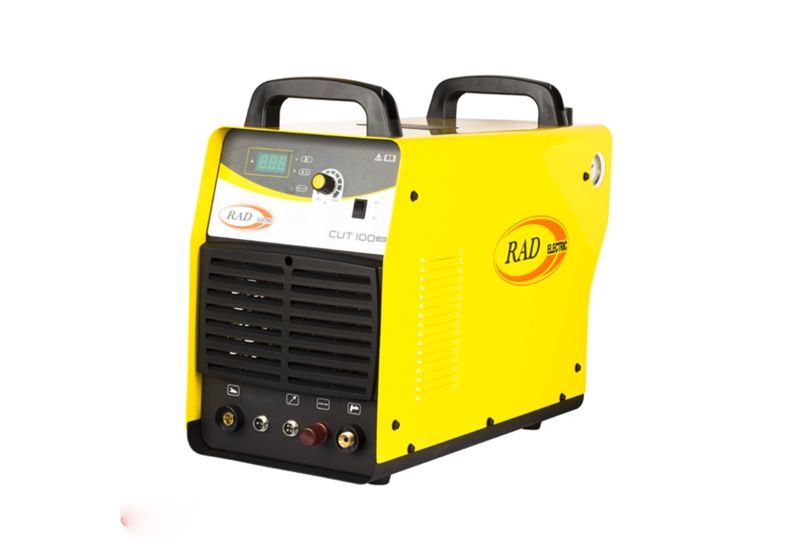

RAD Electric Inverter Plasma Machine model CUT 100 CNC

Inverter Plasma Cutting Machine

Information:

• To cut steel or other metals (sometimes some other materials) in different diameters using a torch
• Can be used to cut a variety of metals such as steel, aluminum, copper, brass and other metal plates
• Manual and automat system
• Maximum cutting thickness: 10 mm
• Current range: 15-40 amp
• Rated input power: 6.4 KVA
• Source power: electricity
• Powerful fan to cool the device
• Dimensions: 300*330*420 mm
• Accessories: torch - dehumidifier - air hose - connection - metal clamp
• Weight: 7.1 kg
• Made in Iran
• Contact us for more information

Inverter Plasma Cutting Machine

Information:

• To cut steel or other metals (sometimes some other materials) in different diameters using a torch
• Cuttable thickness: 40 mm (maintaining cutting quality)
• Power source: three-phases
• Ease of sparking with HF system
• Device overload warning system
• Usable in all industries
• Suitable for cutting any type of sheet metal
• Ability to adjust the current intensity in steps
• Made in Iran
• 1-year warranty and 10-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for bonding metals that are used in manufacturing plants and industries
• Suitable for welding aluminum, iron, stainless steel on thin or thick sheets and pipes
• Current range: 25-450 amp
• Rated input power: 27 KVA
• Dimensions: 490*920*1025 mm
• Gas test knob and wire test
• Three phase
• Digital display to display the latest welding parameters
• Overload protection
• Energy saving capability
• Weight: 170 kg
• 1-year warranty and 10-years after-sale services
• Contact us for more information

Argon Welding Machine

Information:

• To weld all kinds of light and heavy industrial sheets
• Maximum input current: 200 amp
• Source power: electricity
• Input voltage: 220 V
• Frequency: 50-60 Hz
• Output current range: 5-200 amp
• Minimum working power: 70 W
• Welding capability by argon system
• Weight: 10 kg
• Made in China
• Contact us for more information

RSCO Welding Machine

Information:

• For welding by various types of copper and aluminum welding wires
• Power: 45-250 amp
• Needs a gas capsule
• Power voltage: 31 V
• Weight: 31.5 kg
• Power, speed, output voltage, etc. volumes
• Automatic disconnect and reconnect system
• Lightweight and portable
• Working size: 1.2 mm
• Accessories: torch and cable, etc.
• 1-year warranty and 10-years after-sale services
• Contact us for more information

RSCO Argon Welding Machine

Information:

• To weld all kinds of light and heavy industrial sheets
• Dual-function and capable of welding argon and metal
• Timer to set the welding time
• Ability to control voltage, current and speed
• Ability to weld 2.5, 3.2, 4 electrodes
• Automatic gas shut-off adjustment system
• Can be used in tropical areas
• Input power control system
• Accessories: Refractory torch and cable, Refractory ground cable and cramp
• Digital display to show the output current
• Ability to weld all types of steel electrodes, iron electrodes, cast iron electrodes
• Possibility of welding with industrial electrode
• Protection system against electricity, heat, etc.
• Efficiency: 80%
• Refractory input power cable
• Toshiba IC
• Input power: 31 kW
• Weight: 1.5 kg
• 1-year warranty and 5-years after-sale services
• Contact us for more information

RSCO Inverter Welding

Information:

• To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
• Output current: 300 amp
• Suitable size, lightweight, low power consumption
• Advanced 100 kHz frequency IGBT inverter technology
• 6 capacitors with IGBT-MOS-CC-RC technology
• Input power cut-off system
• Industrial fireproof high-pressure input power cable
• Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
• Weldable electrodes' sizes: 2, 2.5, 3.2, 4, 5 mm
• Ability to work with single-phase and two-phase electricity
• Toshiba IC
• Weldable electrodes: all types of penetrating electrodes, iron electrodes, cast iron electrodes
• Miniature fuse to control the input power
• High-temperature sensor
• Electrode anti-adhesion system
• Accessories: refractory torch and cable, refractory ground cable and cramp, mask, combination wire brush
• 1-year warranty and 5-years after-sale services
• ISO, SGS, and CE standards
• Contact us for more information

RSCO Welding Inverter Machine

Information:

• To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
• Output current: 200 amp
• Advanced 100 kHz frequency IGBT inverter technology
• 6 capacitors
• Input power cut-off system
• Industrial fireproof high-pressure input power cable
• Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
• Weldable electrodes' sizes: 2, 2.5, 3.2, 4, 5 mm
• High-temperature sensor
• Ability to weld penetrating electrodes cross-sectionally
• An automatic arc adjustment system
• Three separate electronic boards
• Suitable size, lightweight, low power consumption
• Six automatic charging capacitors
• Toshiba IC
• Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
• Electrode anti-adhesion system
• Miniature fuse to control the input power
• Can be used in high temperatures and tropical regions
• Accessories: refractory torch and cable, refractory ground cable and clamp, mask, combination wire brush
• 1-year warranty and 5-years after-sale services
• ISO, SGS, and CE standards
• Contact us for more information
