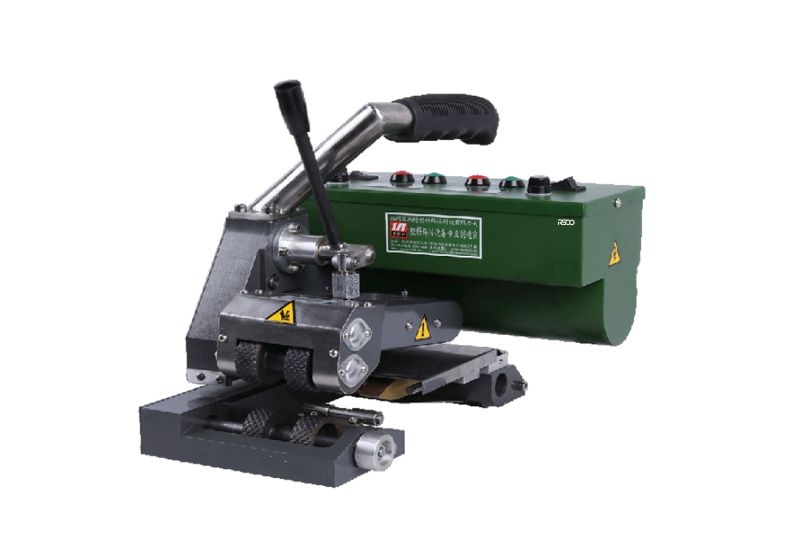

Plastic Geomembrane Welding Machine GMW3000

Wedge Welding Machine

Information:

  • Plastic geomembrane welding machine is used for welding all kinds of plastic surfaces in grades of PVC, PP, PE, etc.
  • Suitable for welding edges and corners
  • Input Voltage: 120/220 V
  • Power: 3000 W
  • Overlap Width: 16 cm
  • Welding speed: 0.5-4.2 m/min
  • Heating Temperature: 20-620°C
  • Welding thickness: 0.5 -2 mm
  • Seam width: 2x15 mm Interior cavity 15 mm
  • For Opposite layers
  • Weight: 7.5 kg
  • Made in China
  • Contact us for more information about geomembrane welding machine
  • If the geomembrane welding machine needs any repair call repair department of Rastegar Sanat
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Description

Plastic Geomembrane Welding Machine

A plastic geomembrane welding machine is an essential tool in the construction and environmental engineering industries. These machines are used to weld layers of geomembrane, typically made from plastic materials such as HDPE, LDPE, PVC, and EVA. Geomembranes serve as protective layers in various projects, including dams, canals, water reservoirs, and landfill sites.


Types of Geomembrane Welding Machines
1 Hot Air Welding Machines: These machines use hot air to melt the edges of the geomembrane, which are then pressed together to form a weld. This method is suitable for welding thinner materials.
2 Hot Wedge Welding Machines: These machines use a hot wedge to melt and weld the edges of the geomembrane. This method is ideal for thicker materials and larger projects, producing very strong and durable welds.
3 Extrusion Welding Machines: These machines use a plastic rod that is heated inside a barrel and extruded in molten form to weld the geomembrane. This method is suitable for repairs and welding complex edges.


Applications and Benefits
Geomembrane welding machines are used in various projects, including:
Dams and Water Reservoirs: To prevent water leakage and preserve water resources.
Landfill Sites: To prevent contaminants from leaking into the soil and groundwater.
Canals and Waterways: To prevent water leakage and increase the efficiency of irrigation systems.
Mining: To prevent the leakage of chemicals and pollutants into the environment.
Using geomembrane welding machines offers numerous advantages, including high speed, precision, and reduced labor costs. These machines can operate automatically, minimizing the need for human intervention.


Conclusion
Plastic geomembrane welding machines are highly efficient and essential tools in environmental engineering and construction projects. By using these machines, it is possible to effectively prevent the leakage of pollutants and preserve water resources. Choosing the right machine based on the project type and materials used can help improve the quality and efficiency of projects.

Read moreShow less
Product Details

Data sheet

Name
Wedge Welding Machine
Power
GMW3000
Input voltage
120/220 V
Function system
electricity
Operating temperature
20-620 C
Speed
0.5-4.2 m/min
Quality rating by Rastegar Sanat from 0 to 100
70
Shipping Box
it has
Made in
China
Weight
7.5 kg
Thickness
0.5 - 2 mm
Reviews (0)

No customer reviews for the moment.
