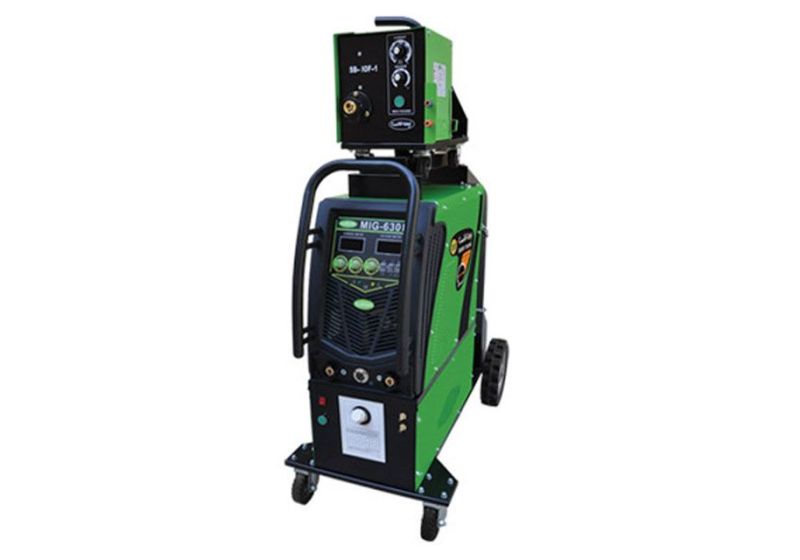

CO2 Welding Machine MIG 630 IT WATERCOOL

CO2 Welding Machine

Information:

  • Usable for bonding metals that are used in manufacturing plants and industries
  • suitable for various industries such as petrochemical industries, chemical industries, pipelines, food industries, boilers, automobiles, shipbuilding, military, space industries, metalworking, etc.
  • Output current range: 60 - 630 / 50 - 500 amp
  • Rated input power: 24.4 - 34.6 KVA
  • Input current: 37-53 amp
  • Power voltage: three phase - 380 volts - 50/60 Hz
  • Output voltage: 15-26 / 15-30 V
  • Power factor: 0.93
  • Efficiency: 85%
  • Duty cycle: 60%
  • Welding wire size: 1, 1.2, 1.6 mm
  • IGBT system
  • Workpiece thickness: 1.20 / 1-30 mm
  • MigPulse welding mode with electrode welding capability (MIG/MMA)
  • Weight: 85 / 95 kg
  • Dimensions: 350*980*1000 / 350*750*740 mm
  • Made in Iran
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Read moreShow less
Product Details

Data sheet

Name
CO2 Welding Machine
Model
MIG 630 IT WATERCOOL
Power
24.4 - 34.6 kv.A
Input voltage
380v
After-sale services
10 years
Function system
IGBT
Performance Cycle
60%
Frequency
50 - 60 Hz
Warranty
1 year
Quality rating by Rastegar Sanat from 0 to 100
85
Made in
Iran
Weight
85 / 95 kg
برق مورد نیاز دستگاه
3 phase
آمپر خروجی
630A
نوع جوشکاری
electrode(MMA),CO2(MIG),argon(TIG)
Reviews (0)

No customer reviews for the moment.

You may also like
$426.60

RSCO CO2 Welding Machine

Information:

  • For welding by various types of copper and aluminum welding wires
  • Power: 50-250 amp
  • Protection class: IP21S
  • Insulation class: F
  • Voltage: AC380±15%
  • Frequency: 50-60 Hz
  • No-load voltage: 56 V
  • Needs a gas capsule
  • Rated input power: 8.4 KVA
  • Power factor: 0.93
  • Power, speed, output voltage, etc. volumes
  • Automatic disconnect and reconnect system
  • Accessories: torch and cable, ground cable and cramp, etc.
  • Weight: 22.70 kg
  • Dimensions:530*370*600 mm
  • Miniature input fuse
  • 1-year warranty and 5-years after-sale services
  • Contact us for more information
$477.00

RSCO CO2 Welding Machine

Information:

  • For welding by various types of copper and aluminum welding wires
  • Power: 50-315 amp
  • Needs a gas capsule
  • Protection class: IP21S
  • Insulation class: F
  • Device model: MIG-280G
  • Voltage: AC380±15%
  • Frequency: 50-60 Hz
  • No-load voltage: 56 V
  • Rated input power: 8.4 KVA
  • Power factor: 0.93
  • Power, speed, output voltage, etc. volumes
  • Automatic disconnect and reconnect system
  • Accessories: torch and cable, etc.
  • Weight: 22.85 kg
  • Dimensions: 530*370*600 mm
  • Miniature input fuse
  • 1-year warranty and 5-years after-sale services
  • Contact us for more information
Out-of-Stock

CO2 Welding Machine

Information:

  • Usable for joining metals that are used in manufacturing plants and industries
  • Provides high weld quality with steel, stainless steel, and aluminum welding wires
  • Designed for heavy-duty working conditions - hot weather conditions
  • Maximum output current: 160 amp
  • MMA mode
  • Air cooling system
  • Weldable size: 0.6, 0.8, 0.9, 1 mm
  • Duty cycle: 100% (Minimum temperature 40 degrees 135 amps)
  • Rated input power: 7 KVA
  • Weight: 16 kg
  • Dimensions: 62*31*46 cm
  • Made in Iran
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Out-of-Stock

CO2 Welding Machine

Information:

  • Usable for bonding metals that are used in manufacturing plants and industries
  • Suitable for welding aluminum, iron, stainless steel on thin or thick sheets and pipes
  • Current range: 25-450 amp
  • Rated input power: 27 KVA
  • Dimensions: 490*920*1025 mm
  • Gas test knob and wire test
  • Three phase
  • Digital display to display the latest welding parameters
  • Overload protection
  • Energy saving capability
  • Weight: 170 kg
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Out-of-Stock

Inverter Welding Machine

Information:

  • To convert AC input current to DC
  • Maximum input current: 200 amp
  • Source power: electricity
  • Welding of stainless steel, alloy steel, hard steel (carbon) and other non-ferrous metals
  • Protective cut-off system
  • Weldable electrode size: 2.5, 3.2, 4 mm
  • 6 capacitors
  • Digital display
  • Ability to work with different electrodes such as rutile, cellulose, alkaline, acid electrodes
  • Large size 70 plug for long-term operation at high amps
  • Input voltage: 220 V
  • Amperage: 200 amp
  • Weight: 6.5 kg
  • 30-months warranty and 30-months after-sale services
  • Contact us for more information
Out-of-Stock

Inverter Welding Machine

Information:

  • To convert AC input current to DC
  • Maximum input current: 200 amp
  • Power : 9000 w
  • Equipped to bottom of change welding electrode (MMA) and argon (TIG)
  • Type of current : DC
  • Weldable electrode size: 1.6 , 2.5 - 3 , 4 mm
  • Cooling fan
  • Source power: electricity
  • Output voltage : 65v
  • Weight : 5.5 kg
  • Made in Korea
  • Contact us for more information
Out-of-Stock

RSCO Welding Inverter Machine

Information:

  • To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
  • Constant current output
  • Suitable size, lightweight, low power consumption
  • Working current: 20-220 Amper
  • Advanced IGBT inverter technology
  • Industrial fireproof high-pressure input power cable
  • Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
  • Weldable electrodes' sizes: 2, 2.5, 3.2 mm
  • High-temperature sensor
  • Including refractory torch and cable, refractory ground cable and clamp
  • Lightweight and durable box for easy handling
  • Toshiba IC
  • Input voltage: AC220V ±20%
  • Frequency: 50-60 Hz
  • No-load voltage: 56 V
  • Power: 5.5 kW
  • Power factor: 0.73
  • Weight: 2 Kg
  • Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
  • 1-year warranty and 5-years after-sale services
  • ISO, SGS, and CE standards
  • Contact us for more information
Out-of-Stock

RSCO Mini Welding Inverter Machine

Information:

  • To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
  • Current range: 20-200 Amper
  • Advanced IGBT inverter technology
  • Industrial fireproof high-pressure input power cable
  • Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
  • Weldable electrodes' sizes: 2, 2.5, 3.2 mm
  • High-temperature sensor
  • Constant current output
  • Suitable size, lightweight, low power consumption
  • Including refractory torch and cable, refractory ground cable and clamp
  • Toshiba IC
  • Working voltage: AC220V ±20%
  • Frequency: 50-60 Hz
  • No-load voltage: 56 V
  • Input power: 4.3 kW
  • Power factor: 0.73
  • Weight: 1.9 Kg
  • Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
  • 1-year warranty and 5-years after-sale services
  • ISO, SGS, and CE standards
  • Contact us for more information
