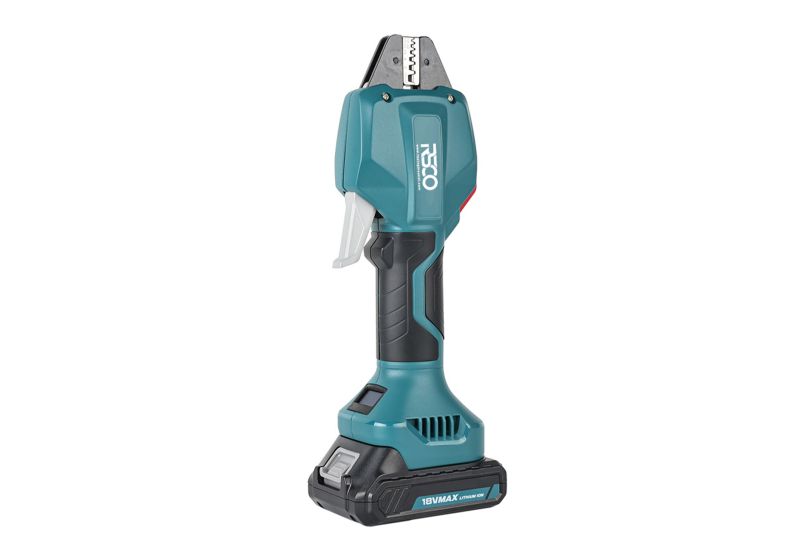

Cordless Crimping Tool, RSCO |BPZ50

Brand:

Modular Crimping Tool

Specifications :

Novo Press Battery operated crimping able to press copper or aluminium , stranded or flexible cable
Offers a complete Crimping-System, with more than 100 common crimping dies
It’s electronic crimp-force monitoring and automatic sequence control
Offers best the quality and safety.
Powerful Li-Ion battery system from Milwaukee, enables light weight, high performance and endurance for up to 500 crimps per charge.
Novo Press Battery Powered Crimp job-lot production.
It crimps from 0.08 - 50 mm²
Range AWG 28 - AWG 0.
Including parallel jaw closing.
Crimpforce up to 1.5t
Including crimpforce monitoring.
Crimp-cycle control.
Voltage Battery 12 V Li-Ion 1,5 Ah / 3,0 Ah
Power : 240 W
Length :ca. 142 mm
Width : ca. 50 mm
Height : ca. 274 mm
It Weighs ca. 2 Kg (inkl. Akku 1,5 Ah)
Crimpforce of this Novo press battery powered crimp is up to 1,5t
Crimp Range : 0,08 - 50 mm²
Protection class : IP 20
Temp. range : -10° C bis +50° C
Sound pressure level 70 db (A)
Sound power level max. 83 db (A)
Vibration value : < 2,5 m/s²
Latest Li-Ion batteries
500 Crimps per charge
Cycle time only 2,5 sec
1 year warranty and 10 years after-sales service
Service will be done under 48 hours
Contact us for more information
