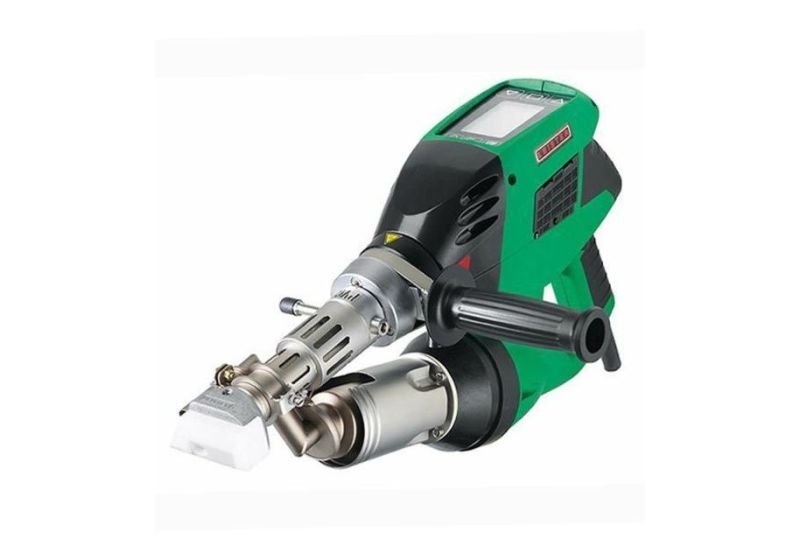

LEISTER Digital Extrusion Welding Machine model 136.602

Leister Extrusion Welder

Information:

• For welding pipes and surfaces (PE, polyfluoride, PEX pipe, PVC)
• Power: 3500 w
• Source power: electricity
• Digital display
• Maximum working temperature: 350 C
• Voltage: 230 v
• Handle with antiperspirant and non-slip plastic cover for easy operation
• Pipe diameter: 3 - 4 mm
• Dimensions: 670×90×180 mm
• Ability to remove paint, oil and glue
• Weight: 7.2 kg
• Made in Switzerland
• Contact us for more information

Leister Hot Air Hand Tool

Information:

• For welding all kinds of plastic surfaces in grades of PVC, PP, PE, etc.
• Power: 460 w
• Source power: electricity
• Frequency: 50 / 60 Hz
• Voltage: 120 v
• Working temperature: 20-600 degrees Celsius
• Handle with antiperspirant and non-slip plastic cover for easy operation
• Sound level: 59 dB
• Adjustable air flow 80 liters per minute
• Lightweight and portable
• Custom flat and rod nozzle
• Ability to paint and remove oil and glue
• Weight: 1.5 kg
• Made in Switzerland
• Contact us for more information

RSCo Hot Air Hand Tool

Information:

• For welding all kinds of plastic surfaces in grades of PVC, PP, PE, etc.
• Cooling protective tube
• Air pressure: 3000 pa
• Temperature range: 60 - 700 C
• Thermal element protector at a temperature of 700 degrees
• Power: 1600 watts of heat
• Impeller speed: 13000 rpm
• Output temperature: 120 liters per minute
• Lightweight and portable
• Ability to work continuously for up to 8 hours
• Ceramic interior elements
• Output temperature adjustment volume
• Ability to output 3 liters of hot air per minute
• Shrink ability
• Dimensions: 470x385x640 mm
• Weight: 1.6 kg
• Custom flat and rod nozzle
• After-sales services of Rastegar Sanat
• Contact us for more information

RSCo Hot Air Hand Tool

Information:

• For welding all kinds of plastic surfaces in grades of PVC, PP, polyethylene, etc.
• Cooling protective tube
• Output temperature: 430 liters per minute
• Temperature range: 60 - 700 C
• Thermal element protector at a temperature of 700 degrees
• Power: 3400 watts of heat
• Lightweight and portable
• Shrink ability
• Custom flat and rod nozzle
• After-sales services of Rastegar Sanat
• Contact us for more information

RSCO Extrusion Welder 1600 W

Information:

• For welding pipes and surfaces (PE, polyfluoride, PEX pipe, PVC)
• The blower does not need adjustment
• Metabo German electric motor
• Input Voltage: 220 V
• Motor Power: 800 W
• Hot Air Power: 3400 W
• Welding Rod heating Power: 800 W
• Air Temperature: 20-620°C
• Extruding Temperature: 200-380°C
• Extruding Volume: 2 Kg/h
• Welding Rod Diameter: Φ 3-4 mm
• Weight: 6.5 kg
• Thickness welded: 8-40 mm
• Including: 1pcs Flat nozzle, 1 pcs Corner nozzle, 1 pcs Spare heating, element
• ISO and CE standards from the European Union
• After-sales service of Rastegar Sanat Company
• Contact us for more information about Extrusion Welder.
• If Extrusion welder needs any repair call our repair department.

Extrusion Welder

Information:

• For welding all kinds of surfaces in grades of PVC, PP, PE.
• Used to repair polyethylene pipes and connections
• Material input by special electrodes
• With the ability to weld polyethylene and polypropylene
• Quality sealant
• Adjustable handle
• Contact us for more information

RSCo electrofusion welding machine

Information:

• Able to weld all types of pipes and joints with the size of 16- 4000 mm
• external memory
• Output voltage: 4 - 48 V , 187 - 253 V
• One-phase and three--phase
• Frequency: 40-60 Hz
• Working temperature range: -10 to +45 C
• Weight: 35 Kg
• IP54 protection class
• Equipped to wheels for portable
• Ability to weld with an electric motor with a power of 7 KW
• Approved by National Iranian Gas Company
• 1-year RSCo warranty and 10 years after-sale service
• ISO and CE certifications from European Union Standards
• Contact us for more information

RSCo electrofusion welding machine:

Information:

• For welding all types of HDPE pipes and joints of sizes 16 to 250 mm
• External memory
• Aluminum body with electrostatic color cover
• Ability to store welding information and connect to a printer to print information and connect to a computer
• Input cable with 10 meters length and 4 meters output cable
• Ability to weld with an electric motor with a power of 5 kW and city electricity
• Working voltage: 187-253 V
• Frequency: 40-60 Hz
• Working temperature range: -10 to +45 C
• Ability to weld every electrofusion joints
• Ability to transfer barcode information in two ways, by barcode reader and manually (24-digit code)
• Barcode reader pen with a resolution code of 4 miles (the most compact barcodes)
• 20 * 4 LCD screen for data display
• Output plugs in accordance with the standard and suitable for any type of Iranian and foreign connection (type A1 - 4 mm with an approximation of 0.03 mm and type A2 - 4.7 mm with an approximation of 0.03 mm)
• IP54 protection class
• Weight: 8.7 Kg
• Calibration sheet
• LCD panel made of polycarbonate resistant to sunlight, heat and waterproof and  5 functional touch switches including switch for acceptance, cancellation, up and down direction and on / off of the machine
• Aluminum strongbox
• Includes iran gas company confirmation
• 1-year RSCo warranty and 10-years after-sale service
• Contact us for more information.
