PVC pipe welding machine
- PPR pipe welding machines is a special plumbing tool. other names of this tool are pvc pipe welding machine,plastic pipe welding machine,ppr pipe heating machine, plastic ppr welding machine
Know about PPR pipe welding machine
- This tool with Positive function has great advantage.
- Use for piping.
- Benefits such as ease and high speed ,with low costs and maintain more energy are the most important things about this tool it also has more advantages than metalic one.
Have more information about R.S.co PPR pipe welding machine :
- PPR welding machine because of has many advantages has been well received in recent years over metal.
- Ability to warm fast , high quality parts , good quality , and easy for transfer and handle
- PVC pipe welding machine is useful for PP-R pipes ,PE pipes , PVC pipes, PE pipes, PB pipes
- PVC pipe welding machine equipped with industrial analogue system,with excellent temperature control feature,It is precise and flex.
- Has high safety in high temperature resistance.

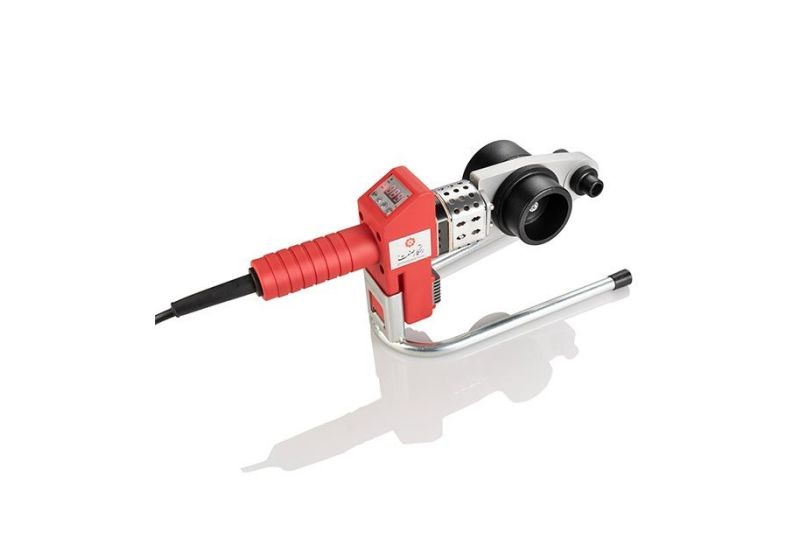

About single PVC pipe welding machine:
- welding size: 2 inch, PVC and PPR pipe 20-63 mm
- 6 Kalibr Die casting industrial Teflon size: 20-25-32-40-50-63 mm
- Input voltage: 220-230 v
- Power: 2500 w
- Working temperature: 0 to 320 degrees with main thermostat
- Internal and external wiring are fireproof
- Light plastic body from polyamide fireproof.
- Digital screen.
Preparing welding on the machine:
- Remove the PVC pipe welding machine from the box and attach the corresponding parts to the size of the element plate.
- After attach the corresponding parts of the element plate turn on the machine and set temprature in 50-280 degree.
How to make tubes in PVC pipe welding machine:
- First,cut the pipe with a cutter.
- Then place the tube and connector on the caliber.
- After the time has elapsed,remove the pipe and connection from the caliber and immediately attach them together.
- Weld the connection and glow according to the prescribed time.
Troubleshooting on PVC pipe welding machine:
- If the Thermostat does not turn on or off:
- Open the body of PVC pipe welding machine then solve the problem.
- Keep the temperature of the Thermostat at the desired temperature.
- Open the body of then solve the problem.
- Cut off the power cord and pass a piece of soft and thin sandpaper a few times through the joints.
Not building up heat:
- Open the body of PVC pipe welding machine then solve the problem
- Cut off the power
- And after checking if the elements is burned , be sure to ask a specialist to replace it.
PVC pipe welding machine templates are not hot enough:
- To fix it,we tighten it with special wrench.
- Clean the device.
- With the help of the Allen wrench we tighten the screws.
Repaire and maintenance of PVC pipe welding machine:
- For more time life of this machine after use put it in the box.
- Put the corresponding parts to box if you didn't use.
- Don"t put the machine near to soil because make it wears out.
- Always keep the corresponding parts clean.
