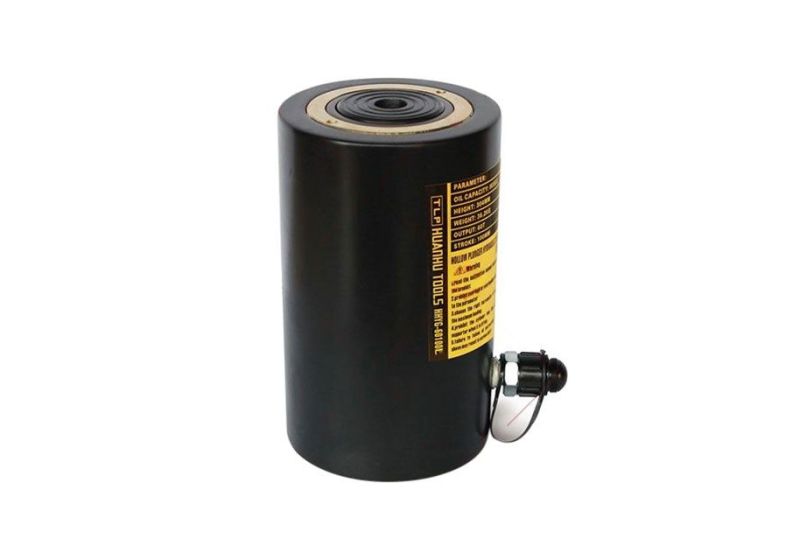

Hydraulic Jack 200 tons

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 931 kn
• Maximum Cylinder Capacity Retract 612 kn
• Stroke 153mm
• Collapsed Height 342 mm
• Extended Height 495 mm
• Center Hole Diameter 79.2 mm
• Plunger Type : Hollow
• Return Type : Double-Acting, Hydraulic Return
• Material : steel
• Cylinder Effective Area Advance 133cm2
• Cylinder Effective Area Retract 87.4cm2
• Oil Capacity Advance 2035cm3
• Oil Capacity Retract 1337cm3
• Weight: 79 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 12 t
• Maximum Cylinder Capacity Advance 125 kn
• Stroke 42 mm
• Collapsed Height 120 mm
• Extended Height 162 mm
• Center Hole Diameter 19.5 mm
• Return Type : Single-Acting, Spring Return
• Plunger Type : Hollow
• Hollow : steel
• Cylinder Effective Area Advance 17.9 cm2
• Oil Capacity Advance 75 cm3
• Surface Treatment : paint
• Weight 2.8 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Power: 152 tons
• Maximum working pressure: 700 bars
• Oil tank capacity: 4320 cm
• Effective area: 212.8 cm
• Two way model
• Length: 503 mm
• External diameter: 270 mm
• High build quality
• Weight: 170 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50t
• Maximum Cylinder Capacity Advance 496 kn
• Stroke 150mm
• Collapsed Height 301 mm
• Extended Height 451 mm
• Return Type Double-Acting, Hydraulic Return
• Plunger Type : solid
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Cylinder Effective Area Retract 26.7cm2
• Oil Capacity Advance 1063cm3
• Oil Capacity Retract 401cm3
• Weight: 14.3 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• Max pressure : 5 Ton
• Minimum height : 216 mm
• maximum height : 413 mm
• Equipped with an auxiliary screw to adjust the height
• Made with high quality
• Has a BMC bag
• Weight : 4.8 kg
• Made in china
• Contact us for more information.

Hydraulic jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• capacity : 3 tons
• Max height : 194 mm
• Minimum height : 118 mm
• adjust height 60 mm
• Suitable for heavy and industrial work for a long time
• Equipped with a heated and resistant auxiliary screw for height adjustment
• Made with high quality
• Weight : 3.6 kg
• Made in China
• Contact us for more information.

Hydraulic Jack

Information:

• Maximum working pressure 700 bar
• Capacity Class 50 t
• Maximum Cylinder Capacity Advance 496kn
• Stroke 100 mm
• Collapsed Height 236mm
• Extended Height 336mm
• Return Type : Single-Acting, Spring Return
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Oil Capacity Advance 709cm3
• Weight: 9.8 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum working pressure 700 bar
• Capacity Class 50 t
• Maximum Cylinder Capacity Advance 496kn
• Stroke 50 mm
• Collapsed Height 236mm
• Extended Height 336mm
• Return Type : Single-Acting, Spring Return
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Oil Capacity Advance 354 cm3
• Weight: 9.3 kg
• Made in USA
• After-sale services
• Contact us for more information
