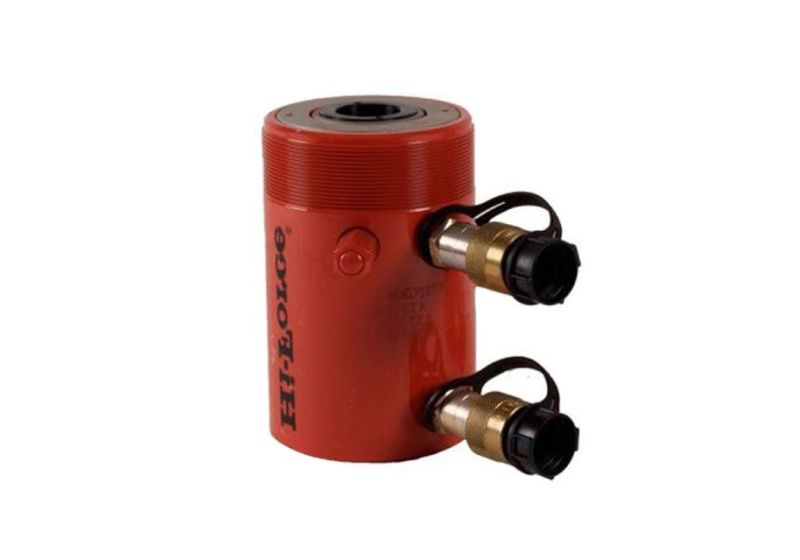

HI-FORCE Hollow Hydraulic Jack 100 tons

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 100t
• Maximum Cylinder Capacity Advance 931 kn
• Maximum Cylinder Capacity Retract 612 kn
• Stroke 153mm
• Collapsed Height 342 mm
• Extended Height 495 mm
• Center Hole Diameter 79.2 mm
• Plunger Type : Hollow
• Return Type : Double-Acting, Hydraulic Return
• Material : steel
• Cylinder Effective Area Advance 133cm2
• Cylinder Effective Area Retract 87.4cm2
• Oil Capacity Advance 2035cm3
• Oil Capacity Retract 1337cm3
• Weight: 79 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 12 t
• Maximum Cylinder Capacity Advance 125 kn
• Stroke 42 mm
• Collapsed Height 120 mm
• Extended Height 162 mm
• Center Hole Diameter 19.5 mm
• Return Type : Single-Acting, Spring Return
• Plunger Type : Hollow
• Hollow : steel
• Cylinder Effective Area Advance 17.9 cm2
• Oil Capacity Advance 75 cm3
• Surface Treatment : paint
• Weight 2.8 kg
• Made in USA
• After-sale services
• If  repairing of the jack is needed call repairing department of Rastegar Sanat
• For more information about the price of the jack call selling department of Rastegar Sanat

Hydraulic Jack

Information:

• Hydraulic jack is a device in which a force is applied to the oil contained in a small cylinder, which is used to lift objects
• Working pressure: 700 bars
• Power range: 5-150 tons
• Oil tank capacity: 4-722 cm
• Closed mode length: 32 mm
• Total length: 198 mm
• High build quality
• Made in long and short lengths
• Corrosion resistant
• Effective area: 6.5-198.1 cm
• Hydraulic system
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Hydraulic jack is a device in which a force is applied to the oil contained in a small cylinder, which is used to lift objects
• Available in different power ranges
• Made in long and short sizes
• Different heights
• Shafts with different lengths
• One-way and two-way inputs
• High build quality
• Materials: aluminum, steel, etc.
• Different weights
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Maximum working pressure: 700 bar
• Lifting weight: 200 tons
• Oil tank capacity: 4.33 L
• Length when the shaft is closed: 362 mm
• Designed for use in all situations
• External diameter: 135 mm
• Weight: 137 kg
• Made in USA
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Maximum working power: 10 tons
• Maximum working pressure: 700 bars
• Oil tank capacity: 440 cm
• Length when the shaft is closed: 379 mm
• Designed for use in all situations
• High build quality
• Weight: 6.2 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Maximum working pressure: 700 bar
• Lifting weight: 20 tons
• Oil tank capacity: 56 Square centimeters
• Length when the shaft is closed: 102 mm
• Designed for use in all situations
• Weight: 4.8 kg
• Made in USA
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Maximum working power: 109 tons
• Maximum working pressure: 700 bars
• Oil tank capacity: 0.76 L
• Length when the shaft is closed: 189 mm
• Designed for use in all situations
• High build quality
• Made in USA
• Contact us for more information
