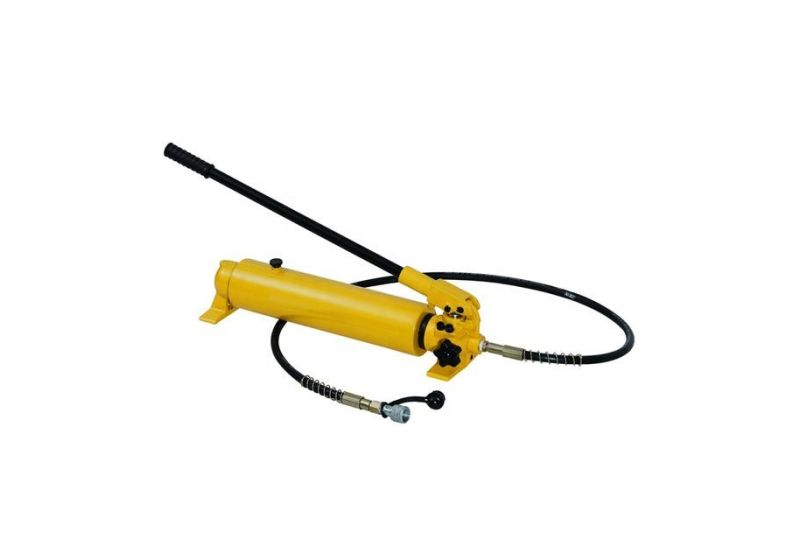

RSCO Manual Hydraulic Pump model PUH3200-700

RSCO Hydraulic Pump

Information:

  • To convert mechanical power supplied by internal combustion or by electric motors to hydraulic power
  • Working pressure: 20 _ 700 bar
  • Amount of displacement of oil : 13 _ 2.3 ml
  • Tank capacity: 3200 ml
  • Oil usage: 2700 ml
  • Antiperspirant and non-slip cover handles

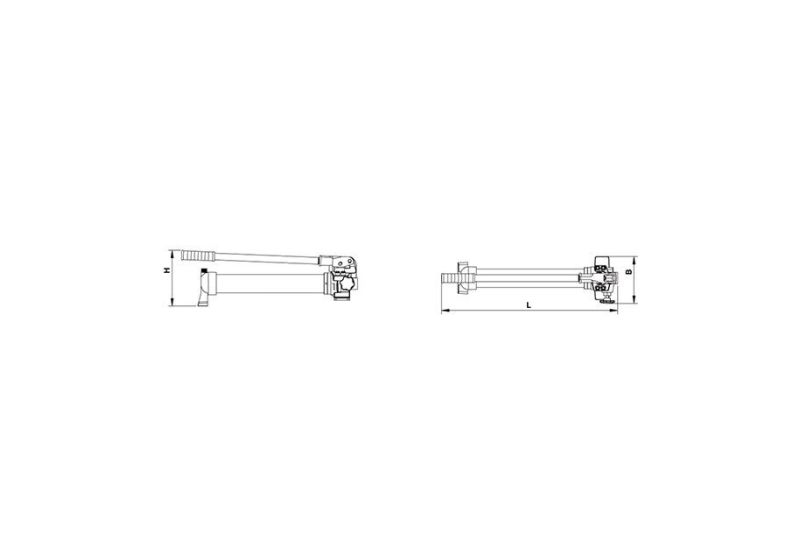

  • Dimensions: 200*120*715 mm
  • One way and two ways
  • Weight: 16.8 kg
  • Made in China
  • Contact us for more information
Read moreShow less
Product Details

Data sheet

Name
RSCO Manual Hydraulic Pump
Device Model
PUH3200-700
Maximum pressure
20 - 700 bars
Warranty
first test
After-sale services
unavailable
Made in
China
Weight
16.8 kg
Tank capacity
3200 ml
Dimensions
200*120*715 mm
نوع پمپ هیدرولیک
Reviews (0)

No customer reviews for the moment.

You may also like
Out-of-Stock

Electric Hydraulic Pump

Information:

  • To convert mechanical power supplied by internal combustion or by electric motors to hydraulic power
  • Working pressure: 20-700 bars
  • Tank capacity: 35 L
  • Power: 3 kW
  • Flow rate: 3-10 liters per minute
  • Protective frame for use in harsh environments
  • Can be used in harsh environments for a long time
  • Barometer to show the amount of pressure
  • High quality and resistance
  • Dimensions: 355*455*660 mm
  • Weight: 64.4 kg
  • Design by Rastegar Sanat Company
  • Contact us for more information
$4,122.00

Electric Hydraulic Pump

Information:

  • To convert mechanical power supplied by internal combustion or by electric motors to hydraulic power
  • Internal drain valves for more safety.
  • Working pressure: 700 bar
  • High quality and resistance
  • Tank capacity: 7000 Square centimeters
  • Maximum flow: 1.3 liter per minute
  • Manual and reciprocating operation valve
  • Weight: 30 kg
  • Pressure adjustment range: 70-700 bar
  • Made in USA
  • Contact us for more information
$716.40

RSCO Hydraulic Pump

Information:

  • Can be used to convert mechanical power  supplied through internal combustion or electric motors into hydraulic power
  • Two-speed hydraulic system for quick and easy operation
  • Working pressure: 20 to 700 bar
  • Oil displacement per stroke: 2.3-13 cm3
  • Oil capacity: 3500 cc
  • Usable oil capacity: 3000 cubic cm
  • It has a square and large oil tank
  • bilaterally and manually L/R
  • Ability to create pressure on two output hoses
  • Equipped with an internal pressure relief valve to protect against overload
  • Large oil tank capacity to supply a wide range of cylinders and tools
  • The handle has anti-sweat and non-slip coating for easy operation
  • Equipped with a 1.8 meter high pressure hose
  • Comes with quick coupler R2 3/8 and Dust cap
  • Dimensions: 275x15x710 mm
  • Weight: 18.6 kg
  • Made in China
$441.00

RSCO Hydraulic Pump

Information:

  • To convert mechanical power supplied by internal combustion or by electric motors to hydraulic power
  • Working pressure: 700 bar
  • Tank capacity: 500 ml
  • Amount of oil displacement per impact: 350 ml
  • The handle has an antiperspirant and non-slip cover for easy operation
  • One way and two ways
  • Dimensions:  140*120*380 mm
  • Weight: 5.6 kg
  • Made in China
  • Contact us for more information
Out-of-Stock

Manual Hydraulic Pump

Information:

  • To convert mechanical power supplied by internal combustion or by electric motors to hydraulic power
  • Working pressure: 400 bar
  • Oil tank capacity: 400 square centimeters
  • Oil usage: 280 square centimeters
  • The handle has an antiperspirant and non-slip cover for easy operation
  • Dimensions: 115*100*320 mm
  • One way and two ways
  • Weight: 5.8 kg
  • Made in China
  • Contact us for more information
Out-of-Stock

RSCO Manual Hydraulic Pump

Information:

  • Can be used to convert mechanical power supplied through internal combustion or electric motors into hydraulic power
  • Two-speed hydraulic system for quick and easy operation
  • Working pressure: 20 to 700 bar
  • Oil capacity: 7500 cc
  • Usable oil capacity: 7 L
  • Oil displacement per stroke at low pressure: 126.2 cc
  • Oil displacement per stroke at high pressure: 4.75 cc
  • The handle has anti-sweat and non-slip coating for easy operation
  • Dimensions: 330x310x740 mm
  • Equipped with an internal pressure relief valve to protect against overload
  • Weight: 26.5 kg
  • Made in China
