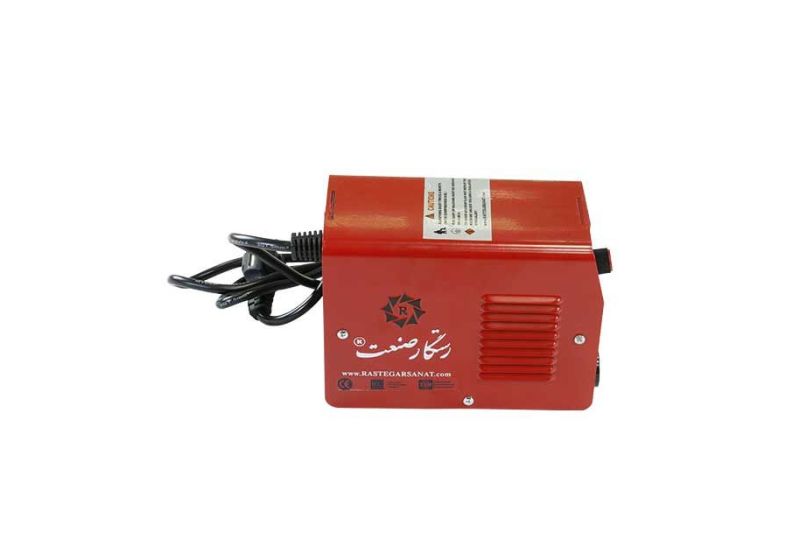

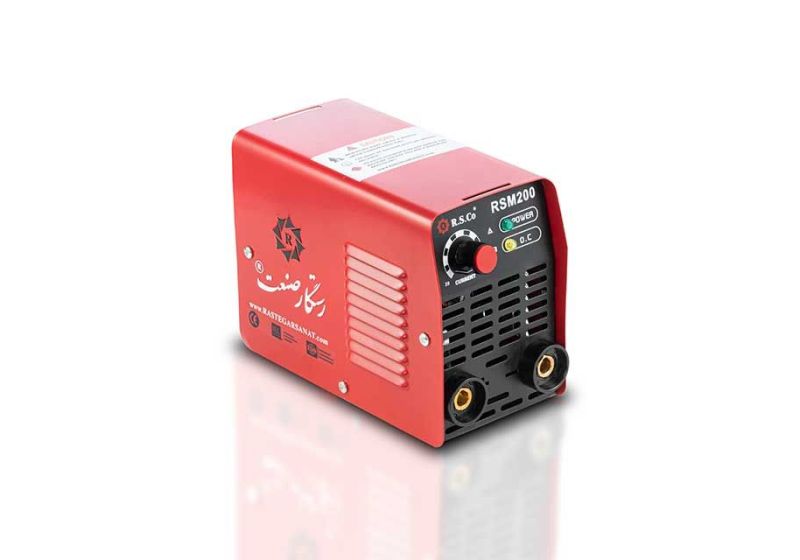

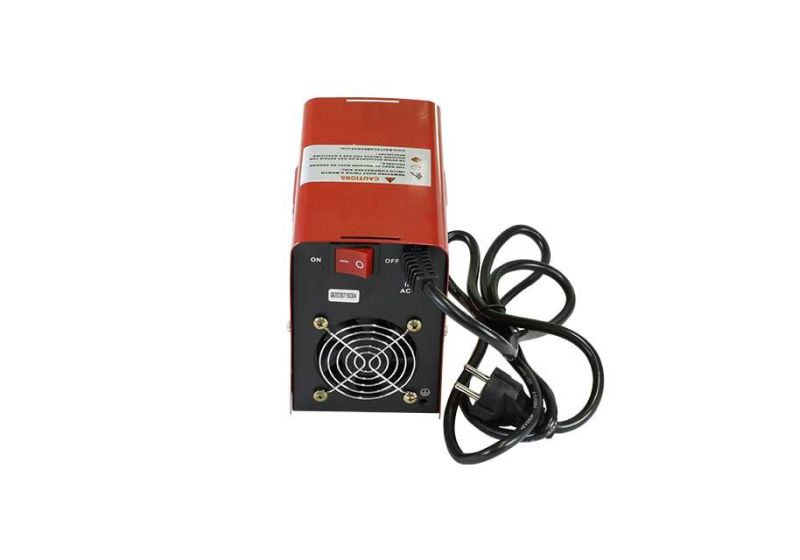

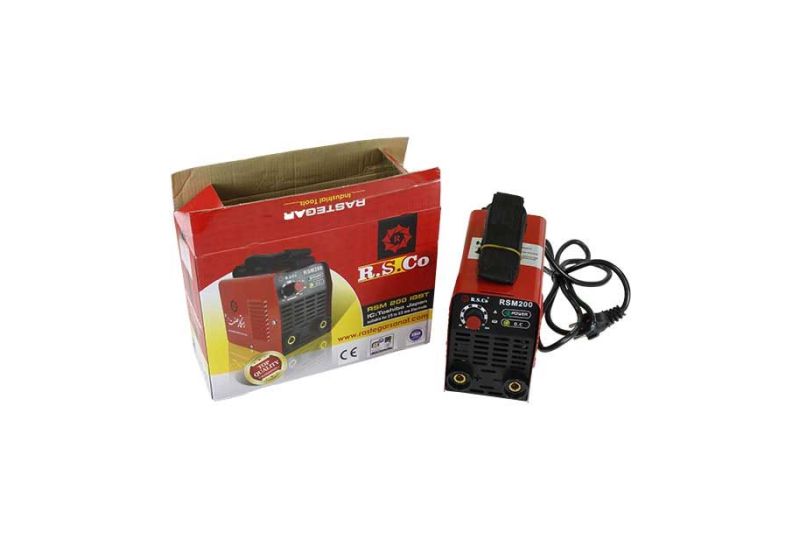

RSCO Mini Inverter Welding Machine RSM200

RSCO Mini Welding Inverter Machine

Information:

  • To weld all types of iron, galvanized, steel, carbon steel, cast iron, etc. (acidic and alkaline environments)
  • Current range: 20-200 Amper
  • Advanced IGBT inverter technology
  • Industrial fireproof high-pressure input power cable
  • Voltage increasing in high frequency and low welding spraying technology, significant welding arc and, easy usability
  • Weldable electrodes' sizes: 2, 2.5, 3.2 mm
  • High-temperature sensor
  • Constant current output
  • Suitable size, lightweight, low power consumption

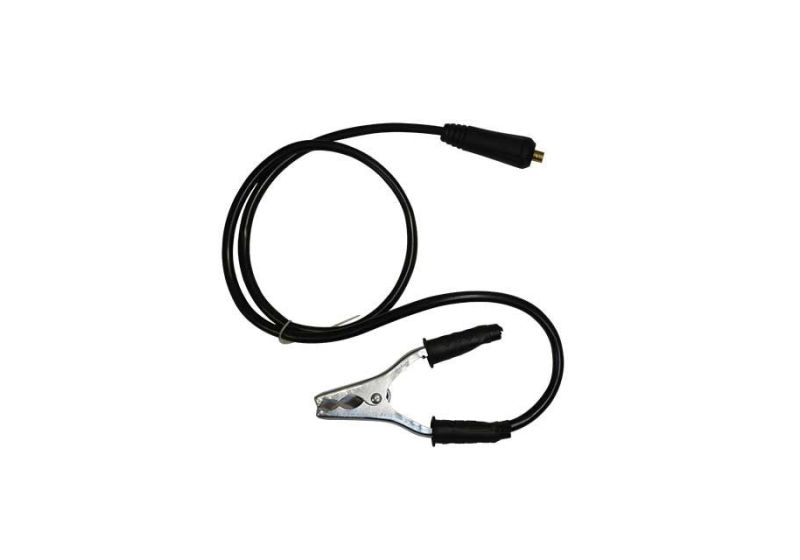

  • Including refractory torch and cable, refractory ground cable and clamp
  • Toshiba IC
  • Working voltage: AC220V ±20%
  • Frequency: 50-60 Hz
  • No-load voltage: 56 V
  • Input power: 4.3 kW
  • Power factor: 0.73
  • Weight: 1.9 Kg
  • Weldable electrodes: all types of steel electrodes, iron electrodes, cast iron electrodes
  • 1-year warranty and 5-years after-sale services
  • ISO, SGS, and CE standards
  • Contact us for more information
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Mini Welding Inverter Machine
Device Model
RSM200
Input voltage
220
After-sale services
5 years
Function system
IGBT
Miniature Fuse
unavailable
Adjustable current range
20 - 200 A
Frequency
50 - 60 Hz
Warranty
1 year
Accessories
available
Quality rating by Rastegar Sanat from 0 to 100
80
Weight
1.9 kg
Cable, welding tongs and connectors
available
برق مورد نیاز دستگاه
single phase
آمپر خروجی
200A
نوع جوشکاری
electrode( MMA)
