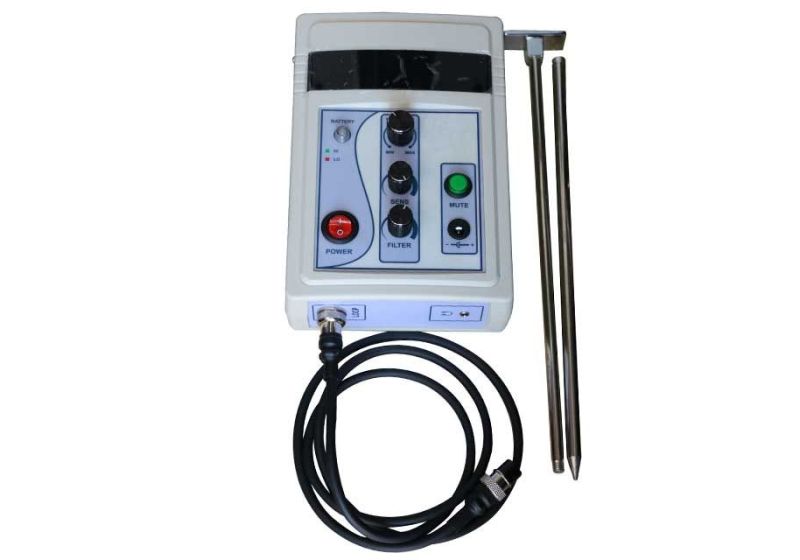

RSCO water leak detector WLD1

Introducing the water leak detection device:

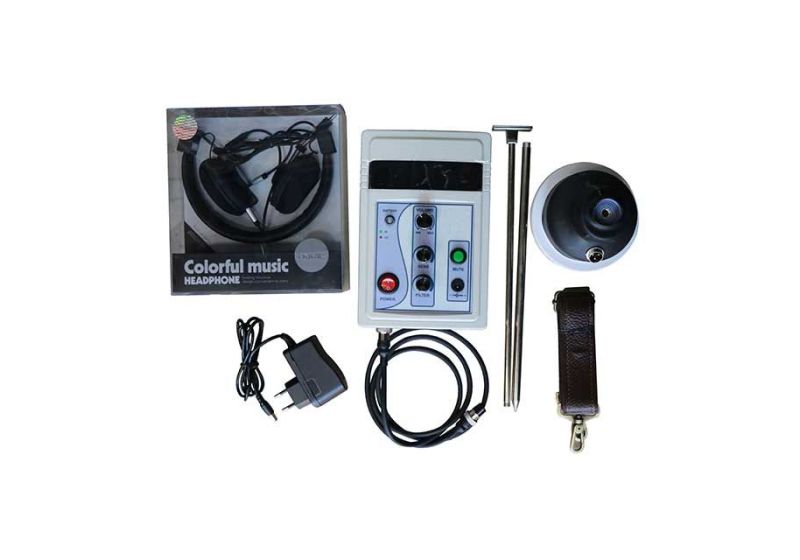

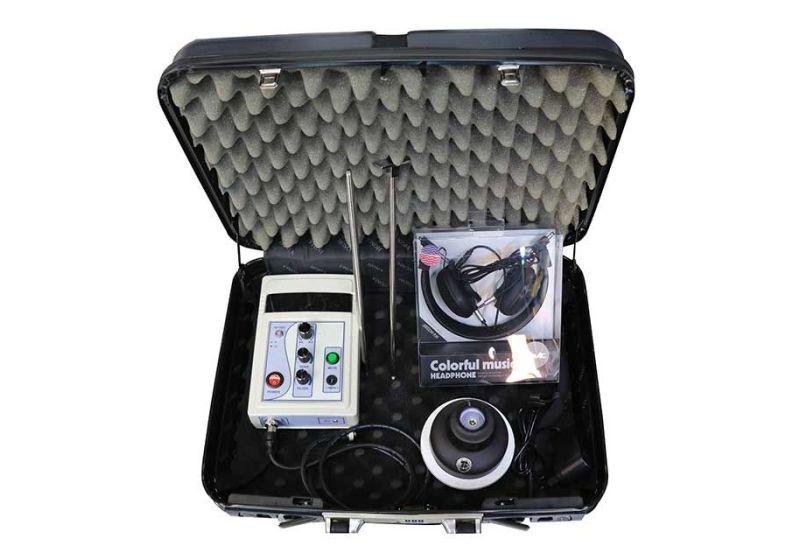

The water leak detector includes the following:

• Volume, volume, LED, indicator light, battery level, sensitivity, power switch, filter, color display, intermittent mute switch, charger connector, headphone, loop, loop cable.

Water leak detector features Water pipe:

• Leak Detector has full digital design.
• Water leak detection device equipped with rechargeable battery system with automatic charger.
• SENSOR DETECTION SENSOR DIRECTOR for low or high sensitivity of the device.
• Filter leakage leakage tube to get better sound for metal and non-metallic pipes.
• Sewer pipe leakage lever equipped with Digital Signal indicator.
• Water leakage leakage device with loop or highly sensitive receiver with IC amplification.
• Plumbing leak detector A powerful sound playback of up to 1000MW through the headphones supplied with the device.
• Professional leak detector with professional frequency headband 20HZ-20KKZ.
• MUTE leak detection device for use in loop movement to prevent ear infections.
• The water leak detection device is very low-power and has a battery life of up to 40 hours.
• Two year warranty and ten years after sales service leak detector.
• Manual leak detection device Voltage 12 volt leak detector with internal and rechargeable battery.
• Battery life 40 hours continuous leak detection device if fully charged.
• Charging the 220V battery to 12V full-automatic.
• 1000 MW audio output power on headphones.
• The weight of the water pipe leakage is less than 500 grams.

The structure and operation of the sewage pipe leakage detector system:

• In designing and manufacturing this water leak detector, we have been working hard to make use of the latest and most sophisticated parts in the world.
• Therefore, the use of the latest integrated circuits has led to a high quality and sensitivity of the devic
• Which has a 10-megapixel impedance so that the signals can be amplified too weakly.
• The looping design of the leak detector, which is responsible for receiving signals from the ground or any other surface, is no exception.
• And with the use of highly sensitive ICs, we tried to increase the loop sensitivity and potency as much as possible.
• In addition, using this special design, transmission of received loop signals to the device through the corresponding cable does not involve any voltage drop.
• This precise, sensitive design, and the structure and sustainability of this system, which provides a 20Hz-20KHZ frequency band.
• Enables the user to use this device for leakage of water in low pressure and high pressure systems.
• In designing this device to avoid battery replacement as one of the users' concerns, rechargeable batteries with a fully charged charger have been used to avoid over-the-air power supply.
• The user will only use the device after hours of use to connect the charger to the city and the device for recharging.

Alloys loop:

• In the design of this loop, an aluminum plate with 3 bases is used to receive signals from leakage of water pipes.
• Also, within the loop, there is no Integrated Circuit (IC) to amplify the highest received signal level to noise (S / N).
• This has caused a very high sensitivity and a very low noise level.
• Due to the acoustic nature of the loop environment, the conversion of very poor motor-to-noise signals into looped aluminum surfaces is possible.

How water leak detection devices work:

• When it flows through a metal pipe or non-metallic pipe. And the tubing will be leaked due to decay or for any other reason. The water inside the pipe is removed by pressure from the leakage site.
• Due to the outflow of water, a sound is generated that changes the sound to the ground.
• The above sound is made by the loop of the leak detector, which is responsible for receiving very poorly-designed products.
• After boosting and filtering, the leak detector itself is transmitted and after several rebuilding steps on the device itself, the output of the leak detector is amplified.
• This way, you can find the exact location by receiving and hearing the tallest audio signal that corresponds to the sound of the pressure drop from the leakage point.
• Water pressure inside the pipe is very important
• Generally, the pressure inside the pipe should not be less than 2 times 30PSi.
• Leakage noise will be noticeably reduced when water pressure is less than this value.
• In this case, it is recommended to use telescopic rods to get closer to the leak and get better sound.

To improve leakage performance, the following is recommended:

• Observe silence at the place of leakage
• Turn off electrical appliances that produce noise and noise.
• Ensure water coolers are closed
• Use a telescopic rod to leak out the main tube after the meter

Automatic Charger:

• Connect the device to the city's power to charge the battery of the charger.
• Connect the charger plug to the charger on the device.
• The device should be in silent mode when charging the power key.
• When recharged, the LED on the charger is in red. After charging the batteries, lED will change green.
