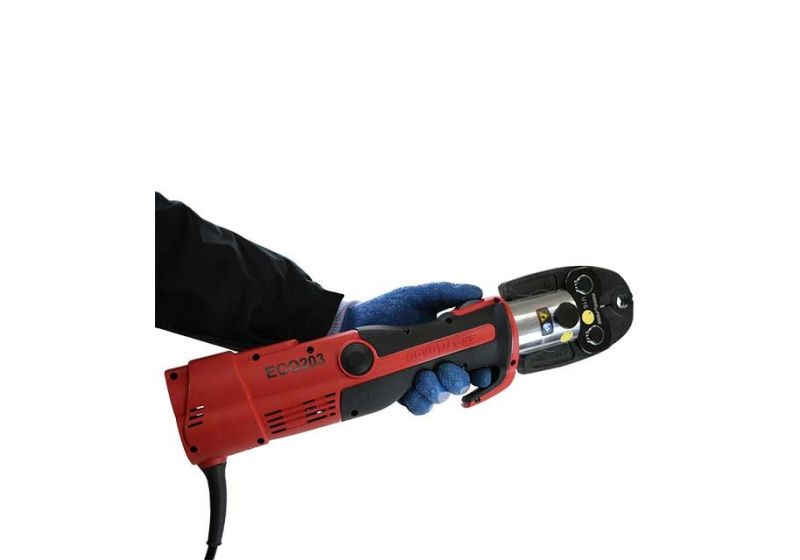

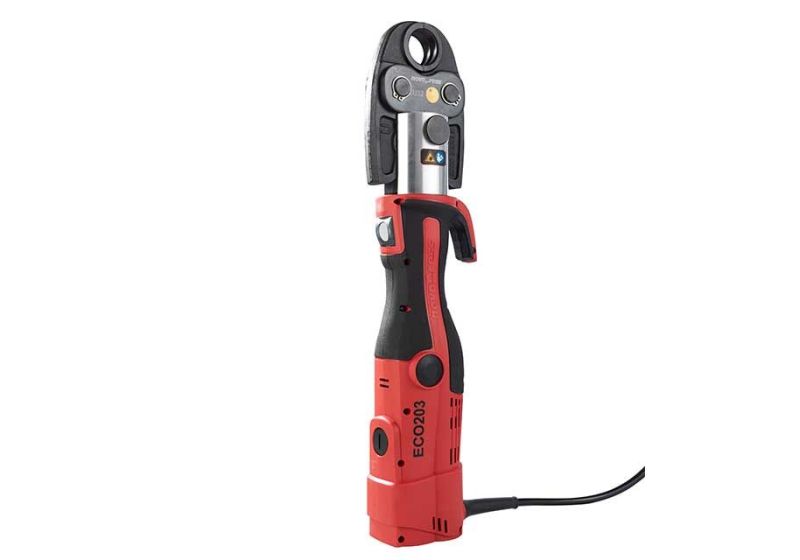

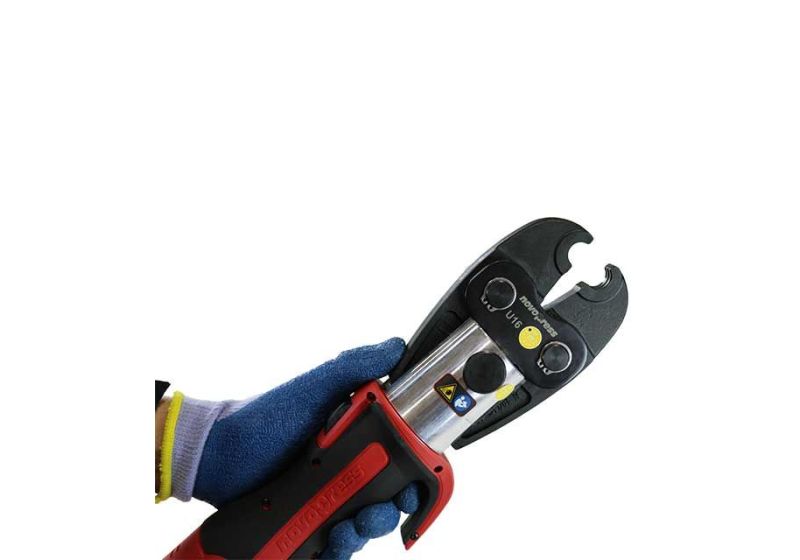

NovoPress electric hydraulic crimping tool ECO203
Brand:
NovoPress electric hydraulic crimping tool
Information:
- The capability to press plastic and metal pipes
- Light weight and easy to work even in over head situations
- Ergonomic design
- Lightweight
- Illumination of the press area
- No limitation of the pressing cycles within the 2-year maintenance interval
- Brushless Motor Technology which causes faster pressing cycles
- Analysis of the pressing tool performance via NovoCheck app
- Dimensions metal pipe: up to 54 mm (depending on system up to 108mm)
- Dimensions plastic pipe: up to 110 mm
- Piston force: 32 KN
- Piston stroke: 40 mm
- Weight: 3.2 kg (including battery)
- Length: 397 mm
- Width: 75 mm
- Height: 113 mm
- Power consumption: 450 W
- Made in Germany
- 1-year warranty and 5-years after-sales service
- Service will be done in under 48 hours
- Rastegar Sanat Company (R.S.Co) provides Service and repairment for all neighboring countries
- Contact us for more information
Data sheet
- Name
- NovoPress electric hydraulic crimping tool
- Device Model
- Size
- metal pipe 54 mm (depending on system up to 108mm) , plastic pipe 110 mm
- Crimping size
- Power
- 450 W
- Function system
- Electric
- Warranty
- 1 year
- Quality rating by Rastegar Sanat from 0 to 100
- 80
- After-sale services
- 10 years
- Made in
- Germany
- Weight
- 3,2 kg
- Overall length
- 397 mm
- Dimensions
- 397 * 75 * 113 mm
