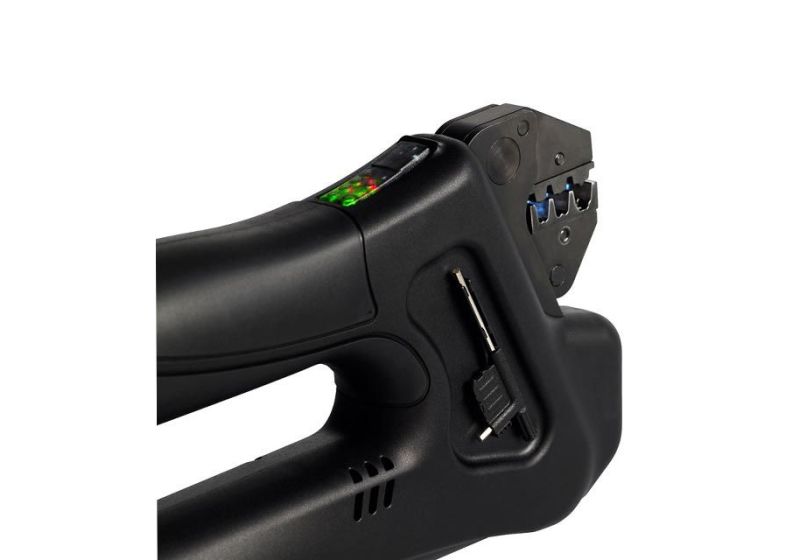

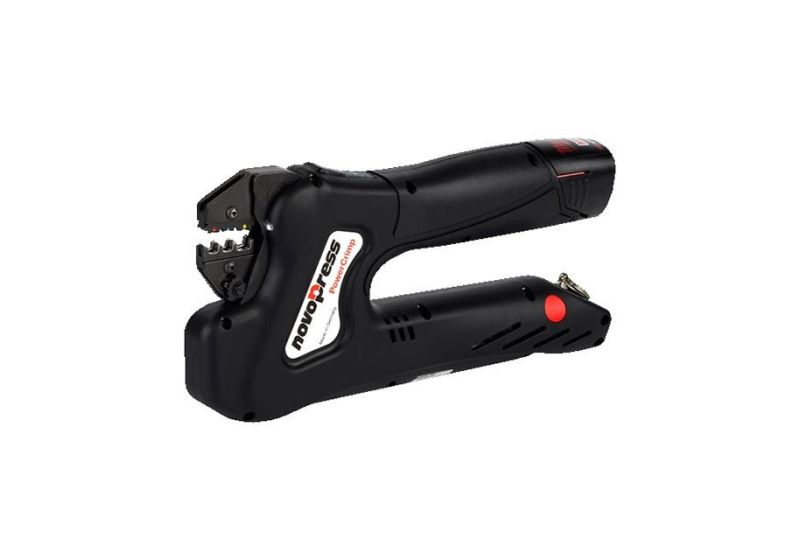

Novo Press Battery power Crimp

Modular Crimping Tool

Specifications :

• Novo Press Battery operated crimping able to press copper or aluminium , stranded or flexible cable
• Offers a complete Crimping-System, with more than 100 common crimping dies
• It’s electronic crimp-force monitoring and automatic sequence control
• Offers best the quality and safety.
• Powerful Li-Ion battery system from Milwaukee, enables light weight, high performance and endurance for up to 500 crimps per charge.
• Novo Press Battery Powered Crimp job-lot production.
• It crimps from 0.08 - 50 mm²
• Range AWG 28 - AWG 0.
• Including parallel jaw closing.
• Crimpforce up to 1.5t
• Including crimpforce monitoring.
• Crimp-cycle control.
• Voltage Battery    12 V Li-Ion 1,5 Ah / 3,0 Ah
• Power : 240 W
• Length :ca. 142 mm
• Width : ca. 50 mm
• Height : ca. 274 mm
• It Weighs  ca. 2 Kg (inkl. Akku 1,5 Ah)
• Crimpforce of this Novo press battery powered  crimp is  up to 1,5t
• Crimp Range : 0,08 - 50 mm²
• Protection class : IP 20
• Temp. range  : -10° C bis +50° C
• Sound pressure level    70 db (A)
• Sound power level max.  83 db (A)
• Vibration value : < 2,5 m/s²
• Latest Li-Ion batteries
• 500 Crimps per charge
• Cycle time only 2,5 sec
• 1 year warranty and 10 years after-sales service
• Service will be done under 48 hours
• Contact us for more information
