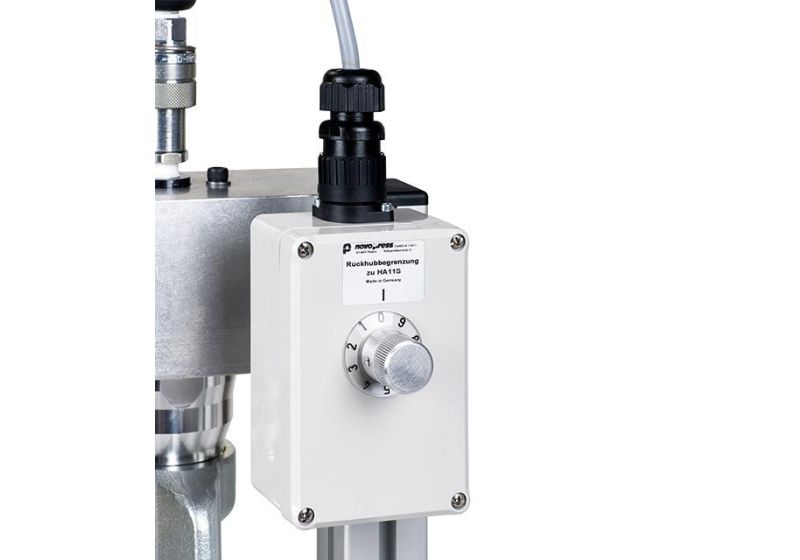

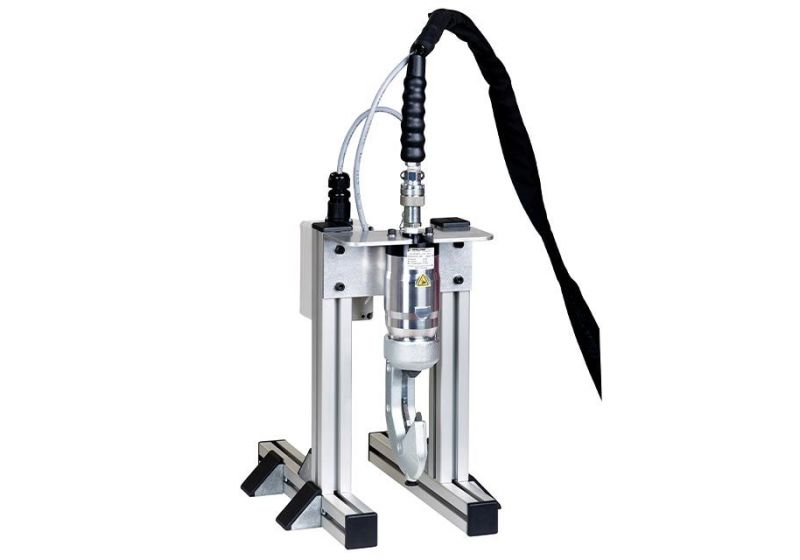

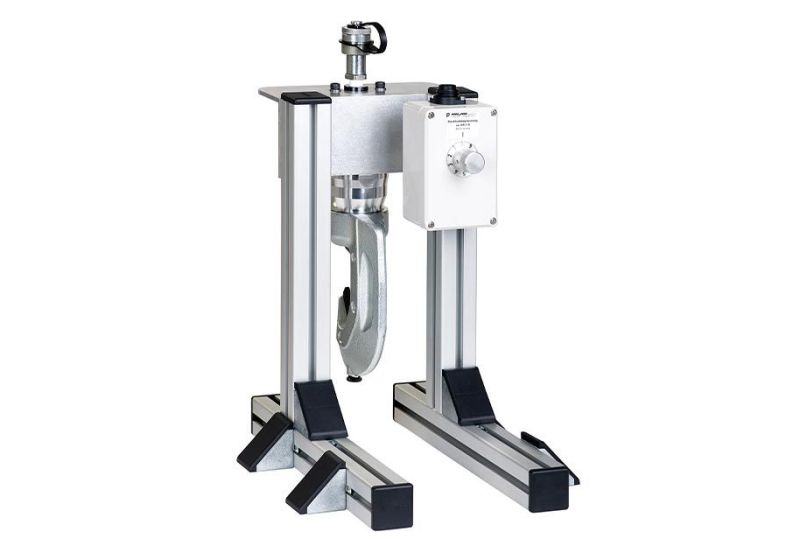

Novopress Hydraulic Cable Crimping HPH 400
Brand:
Hydraulic Cable Crimping
Information:
- Capable of pressing all types of copper, aluminum, etc. cables
- Fixed jaw
- Electronically return in the range of damage to the device due to high pressure
- Pressing size: 16 - 400 mm
- Interruption of operation in case of operator error
- Depth control automatically
- Prevents corrugated connection
- High safety at work
- Dimensions: 108*200*360 mm
- Maximum working pressure: 700 bars
- Force: 110 kN
- Working temperature: -10 to 50 C
- Weight: 4 kg
- Made in Germany
- 1 year warranty and 10-years after-sale services
- Service will be done in less than 48 hours
- Contact us for more information
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Data sheet
- Name
- Dieless Crimping Head
- Model
- HPH 400
- Size
- 16-400 mm2 (max. insert diameter 42 mm)
- Power
- 110 kN
- After-sale services
- 10 years
- Operating temperature
- -10 °C to +50 °C
- Maximum pressure
- 700 bar (10.000 psi)
- Warranty
- 1 year
- Quality rating by Rastegar Sanat from 0 to 100
- 80
- Made in
- Germany
- Weight
- 4.0 kg
- Sound power
- 86.5 db(A)
- Overall length
- 360 mm
- Dimensions
- 360 x 200 x 108 mm (excl. table mount)
