خوش آمدید
×

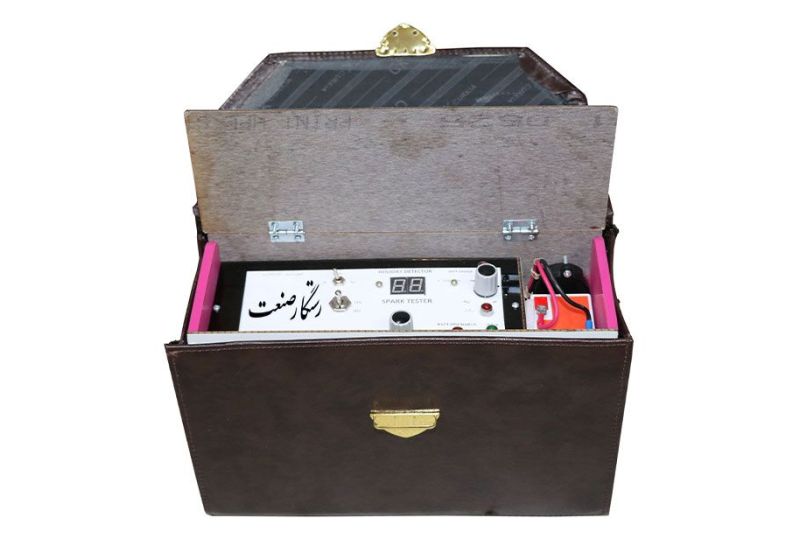

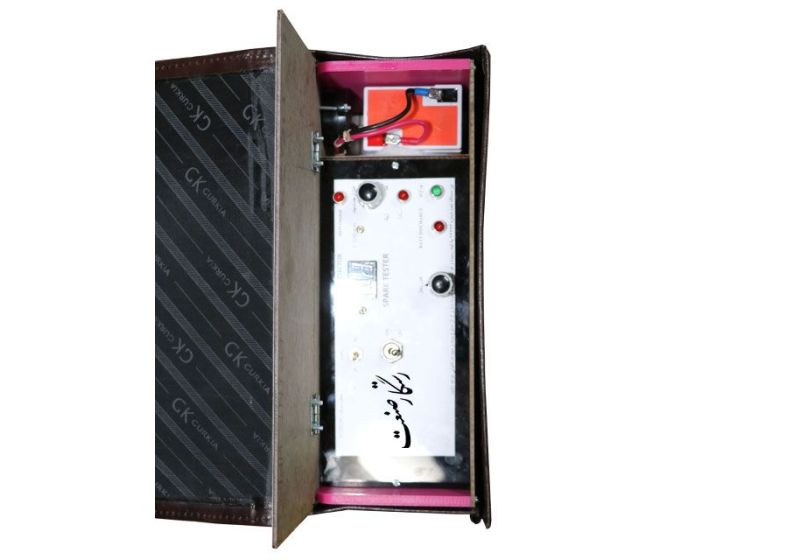

RSCo Haliday tester DC /AC - (direct - dry) HT-20

دسته بندی : Holiday Detector

Information:

RSCo Holiday tester:

  • RSCo Haliday tester is abale to test pipes dielectric and metal connections.
  • 10 to 20 kw out put power.
  • 12 V input voltage.
  • Calibration certification.
  • Able to be charged .
  • Contact us for more information.

Add to wishlist
Add to compare0
$240.30
Delivery: 1 to 3 weeks

فقط 5 عدد در انبار باقیست - پیش از اتمام بخرید

Product Details

Data sheet

Name
RSCo Haliday tester DC /AC - (direct - dry)
Model
HT-20
Power
10to20
Input voltage
12 V
After-sale services
exist
Warranty
exist
Stand
no stand
Calibration sheet
includes
Accessories
available
Quality rating by Rastegar Sanat from 0 to 100
Shipping Box
12 V
Description

Introducing the Holliday Test Device:

  • The devices of this company are in three models of 20kv, 25kv, 30kv.
  • The voltage variations of the pipe hollow test tube are ramp and continuous and can be adjusted to any desired voltage.
  • The tube halli tube testing machine has an online output-connected digital voltmeter that samples the outputs several times per second.
  • Measures the output voltage and shows in the indicator.

Technical Information of Holliday Testing Machine:

  • Nutrition The halide test is provided by a 6-volt battery with a capacity of 5 amps rechargeable.
  • This battery is embedded in the user's grasp. So that the user is able to make necessary changes or reviews when necessary.
  • The tube insulator is equipped with a battery charger and supplied by the standard power cable supplied with the device.
  • The device is equipped with LED charging indicator, which enables the user to continuously determine the battery performance for power and device setup.
  • The need to work with a high voltage device is an insulating body. For the strength of the case, the device is made of Italian fiber.
  • Additionally, the complete insulation of the device has a higher strength compared to plastic boxes

How to operate the plumbing test machine:

  • The device has a self-test at start of work, which, once it is switched on, beats the test beep, and then the beep is cut off. Which indicates the device is ready for work.
  • If the device does not hang up or beep, or if the lamp is connected to the charger and the battery is empty, it means that the device is not ready for testing.

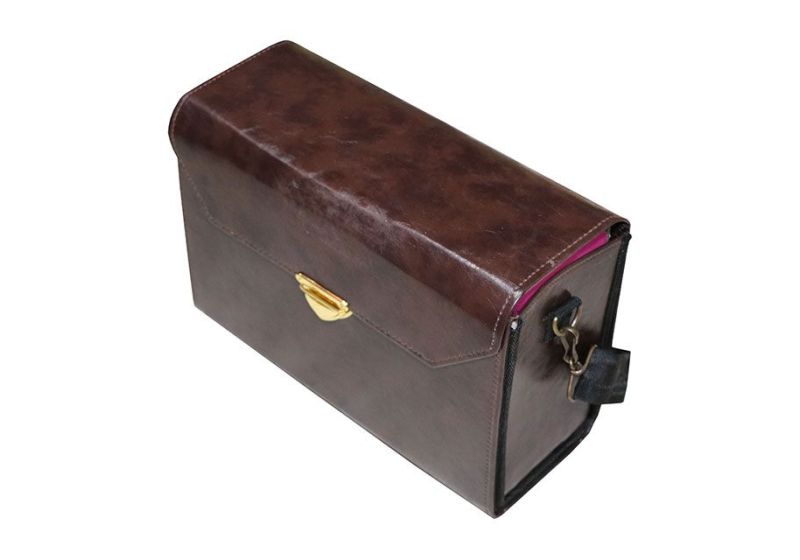

  • The device has a portable bag, which, in addition to the ease of movement, can be used to shake the device and cause no damage to the device.

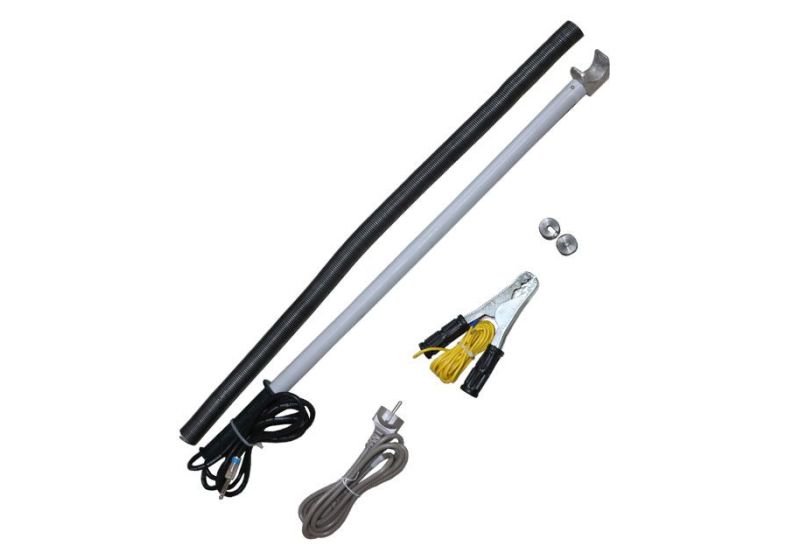

  • A probe number is provided for the displacement of the spring on the pipe and, if necessary, a series of vacuum probe is provided and delivered.
  • The device has a ground wire number and one power cord to charge the device.
  • The operation of the machine is very simple. On the 2-volt plate, 4 LEDs and 2 switches are installed.
  • A larger switch to turn on and off the device.
  • How to work with the Holliday Test Device:
  • First and foremost, when the device is off, the volume of the device is minimized.
  • Connect the ground wire to the device and connect it to the body of the pipe or metal body.
  • It is true that it is also connected to the ground at the same time
  • Then connect the voltage probe of the device.
  • If the wire is not connected to the ground for any reason, the device will not work properly.
  • In case of testing on the pipe, we first install the spring on the pipe.
  • Then turn on the device and set the required voltage according to the supplied SPEC. Then, place the cord on the spring and slip it down.
  • In the event of failure, insulation is detected by creating a spark (SPARK) and a fa-+
  • [pint beeping sound.
  • Sometimes it's seen that users instead of direct-connecting the earth wire to the work surface (pipe) attach it to the damp cloth on the ground.
  • And also connect the pipe body somewhere to the ground. And use the ground as a conductor.

Additional information about metal pipe equipment:

  • The steel factory has a steel pipe clamp and a metal pipe clamp.
  • The bending tube is used for steel pipes, steel pipes, stainless steel pipes, welded pipes and circular steel pipes.
  • Hydraulic bender with bending ability of metal pipes from 1/2 to 2 inches in size manually at various angles up to 90 degrees.
  • The Holliday Rustgar test has the ability to insulate pipes and metal fittings.
  • The metal strip strip is capable of pulling insulating tubes from 2 to 56 inches.
  • Re-checking cameras have access to piping systems, problems in the cavity wall, problems in water tanks, ducts and air conditioning systems.

Read more about other products of the industry:

  • For cutting of all kinds of plastic or polypropylene tubes, shear shear shears or shear shears are used.
  • pex pipe fittings are pressed by a pex pipe press (including pex manual pipe press, a pex, pex pipe press, and a hydraulic press of a pex pipe).
  • It is worth noting that in new years, metal pipes, galvanized, have been used, which are made by hand tools or electrical workpieces.
  • It should be noted that in the main networks of pipelines, pex pipes are used. To open these types of pipes, you can use the roller of the pex industrial pipe.
  • It is worth noting that the five-layer pipes bend with a five-layer tube bending machine and riveted with a pex pipe piercing device.
  • To test the pipe after the completion of the plumbing. When the pipes are filled with water, after testing the pipes and closing the openings, the pipes are tested by plumbing testing machines, which include (manual pump test and electric pump test).
  • To leak the pressure pipes, we introduce the industry-leading mini-leak detector. The industry has gas leak detectors.
  • For repairs of polyethylene welding machines, polyethylene boiling heat, green tube iron, pump testing machine,pex pipe presses, welding inverters and leak detectors, please refer to the sales office of the industry.
  • Stainless steel extruder is also used to repair pipe and fittings of pe.
  • The high-pressure welding extruder of the industry is used as a welding pipe and polyethylene fittings.
  • Due to the fact that steel and galvanized pipes are used today, electric devices are used to carry out these types of pipes.
  • The industrial scrubber is used to peel polyethylene pipes.
  • The squzeer is used to block the transmission of pe pipes
  • Cutting of pe pipes from a size of 25-160 mm is done by pipe on guillotine.
  • Multi-clamp is also used to hold polyethylene pipes during welding.
  • The clamping of polyethylene pipes is used to hold the polyethylene pipes at the welding time.
  • Welding Industry has the ability to weld various types of plastic surfaces in PVC, PP, polyethylene.
  • The Rossabor copper tube has the ability to cut all kinds of copper and aluminum pipes. And Ripper is a steel wire mesh made of high alloy steel
  • Hydraulic bender The five-layer industrial pipe is used to bend all kinds of steel, steel, copper and aluminum pipes.
  • Hydraulic polisher is used to get all kinds of industrial money.
  • The hand pump is used for winding up to a maximum of 1.9 times

information:

RSCo Holiday tester:

  • RSCo Haliday tester is abale to test pipes dielectric and metal connections
  • 10 to 30 kw out put power
  • 12 V input voltage
  • calibration certification

Read moreShow less
