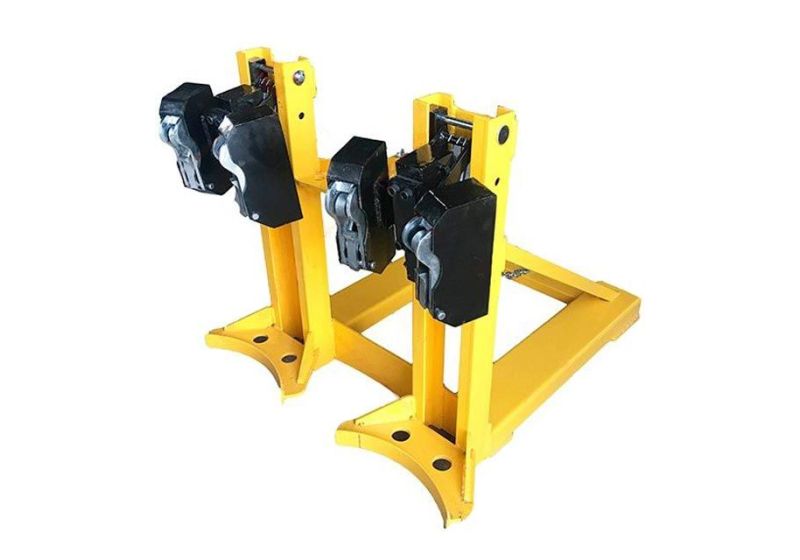

forklift double drum loading 700 kg

Drum loading

Information:

• The electric barrel gripper is used to carry and move barrels, unload barrels, lift all kinds of barrels, etc.
• Electrically operated system
• It has 4 wheels for better and easier transportation
• Ability to move the barrel forward or backward and rotate 360 ​​degrees
• Raising the barrel of the electric catch by hitting the engine start key
• Maximum lifting height: 270 cm
• Catching capacity: 300 kg
• Equipped with a barrel locking clip
• The possibility of installing a barrel carrying basket in case the barrel falls
• The wheels are made of polyethylene

Manual drum loading

Information:

• The barrel gripper is used to carry and move the barrel, empty the barrel, lift all kinds of barrels, etc.
• It has a steel spring jaw to hold the edge of the barrel in a completely safe way
• Hydraulic/manual operating system
• Catching capacity: 300 kg
• Equipped with wide lower legs to remove the barrel
• It has a first-class pump with an ergonomic foot pedal
• It has a brake on the balance wheels that enables loading in sloping places.
• High build quality
• Equipped with two wheels in the front and one wheel in the back
• Under the German license

Drum loading

Information:

• The barrel gripper is used to carry and move the barrel, empty the barrel, lift all kinds of barrels, etc.
• Manual and semi-electric operation system
• Bearing capacity: 500 kg
• Center of gravity: 500 mm
• Maximum lifting height: 3000 mm
• Ability to rotate 360 ​​degrees
• With foot and hand pedal for easy lifting
• Powerful pump and jack equipped with safety valve
• Made of solid profile
• Ideal for narrow corridors
• Total length: 1750 mm
• Lowering speed without load and with load 0.12 / 0.15
• Weight: 360 kg

Drum loading

Information:

• The barrel gripper is used to carry and move the barrel, empty the barrel, lift all kinds of barrels, etc.
• The ability to move and raise the barrel with a special hydraulic jack
• Catching capacity: 300 kg
• Maximum lifting height: 200 mm
• Device dimensions: 1280x880x850 mm
• It has a first-class pump with an ergonomic foot pedal
• High build quality
• Equipped with pedal brake
• It has a steel spring jaw to hold the edge of the barrel in a completely safe way
• Under the German license

Folding trolley

Information:

• A wheelbarrow is used as a moving lever to move loads, especially different boxes.
• With the ability to fold
• Catching capacity: 125 kg
• Suitable for carrying cargo at home and at work - electronics and...
• Equipped with two wheels
• Body made of aluminum
• Detachable parts
• With the ability to adjust the height
• Weight: 7 kg
• High build quality

Cylinder Trolley

Information:

• A wheelbarrow is used as a moving lever to move loads, especially different boxes.
• Suitable for carrying 40-50 liter capsules containing carbon dioxide, argon, oxygen, etc.
• Has a chain to prevent the capsule from falling
• Body made of steel profiles
• Carrying capacity: 150 kg
• Overall height: 1140 mm
• The width of the trolley plate is 165 mm
• High build quality
• Weight: 28.9 kg
• Country of manufacture: Iran

Trolley carrying capsules

Information:

• A wheelbarrow is used as a moving lever to move loads, especially different boxes.
• Metal working system
• Carrying capacity: 375 kg
• Suitable for carrying gas capsules and one air capsule
• Has diecast wheels
• The thickness of the bottom sheet: 3 mm
• Total height: 130 cm
• It has two wheels with a diameter of 20 mm
• Equipped with a circular coil to store the capsule
• High build quality
• Country of manufacture: Iran

Hydraulic Jack pallet

Information:

• It is used to move and transport cargo in the warehouse.
• Capacity: 800 kg
• Lifting height: 1500 mm
• Minimum height of the fork: 475 mm
• Table dimensions: 1220x610x60 mm
• Total length of the device: 1375 mm
• Hydraulic operation system
• Diameter of fork wheel: 150 mm
• Weight: 172 kg
• Turning radius: 1166 mm
• Made in China
• Contact us for more information.
