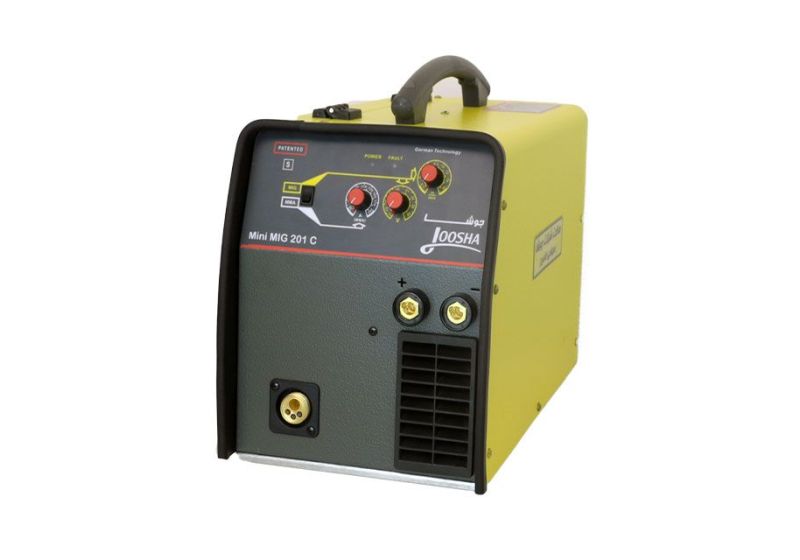

CO2 Welding Machine MINI MIG 201C

RSCO CO2 Welding Machine

Information:

• For welding by various types of copper and aluminum welding wires
• Power: 50-250 amp
• Protection class: IP21S
• Insulation class: F
• Voltage: AC380±15%
• Frequency: 50-60 Hz
• No-load voltage: 56 V
• Needs a gas capsule
• Rated input power: 8.4 KVA
• Power factor: 0.93
• Power, speed, output voltage, etc. volumes
• Automatic disconnect and reconnect system
• Accessories: torch and cable, ground cable and cramp, etc.
• Weight: 22.70 kg
• Dimensions:530*370*600 mm
• Miniature input fuse
• 1-year warranty and 5-years after-sale services
• Contact us for more information

RSCO CO2 Welding Machine

Information:

• For welding by various types of copper and aluminum welding wires
• Power: 50-315 amp
• Needs a gas capsule
• Protection class: IP21S
• Insulation class: F
• Device model: MIG-280G
• Voltage: AC380±15%
• Frequency: 50-60 Hz
• No-load voltage: 56 V
• Rated input power: 8.4 KVA
• Power factor: 0.93
• Power, speed, output voltage, etc. volumes
• Automatic disconnect and reconnect system
• Accessories: torch and cable, etc.
• Weight: 22.85 kg
• Dimensions: 530*370*600 mm
• Miniature input fuse
• 1-year warranty and 5-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for bonding metals that are used in manufacturing plants and industries
• Suitable for welding thin sheets of cars, motorcycle parts, steel-wood composite appliances, light steel skeletons, etc.
• Output current range: MMA= 20-160 A, MIG= 50-200 A
• Rated input power: MIG= 5.6 KVA, MMA= 4.6 KVA
• Power voltage: single phase - 220 volts - 50/60 Hz
• Output voltage: MIG= 16.5-23.5 V, MMA= 20.8-26.4 V
• Power factor: 0.87
• Efficiency: 85%
• Duty cycle: 60%
• Welding wire size: 0.6-0.8 mm
• IGBT system
• Workpiece thickness: 0.8-5 mm
• MigPulse welding mode with electrode welding capability (MIG/MMA)
• Weight: 14 kg
• Dimensions: 204*420*300 mm
• Made in Iran
• 1-year warranty and 10-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for bonding metals that are used in manufacturing plants and industries
• Maximum output current: 350 amp
• Synergistic system (ability to simultaneously adjust the voltage, current, speed of wire output by the device)
• Cool air torch model
• Welding wire size: 0.8, 1, 1.2 mm
• Current in 100% Duty Cycle, Minimum temperature 40 degrees: 330 amp
• Rated input power: 15.5 KVA
• Weight: 52.1 kg
• Dimensions: 45*70*85 cm
• Manufacturer: Joosha
• 1-year warranty and 10-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for bonding metals that are used in manufacturing plants and industries
• Maximum output current: 200 amp
• Ability to digitally control welding parameters and use synergistic characteristics which can be selected based on material, wire diameter and gas consumption
• Synergistic (ability to simultaneously adjust the voltage, current output speed of the wire by the device)
• Duty cycle: 100% (Minimum temperature 40 degrees 90 amps)
• Duty cycle: 60%  (Minimum temperature 40 degrees 100 amps)
• Ability to store up to 99 welding programs
• Number of welding screws: 12 mm per minute for 22 mm studs
• Rated input power: 9 KVA
• Weight: 19.5 kg
• Dimensions: 77*36*71 cm
• Made in Iran
• 1-year warranty and 10-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for joining metals that are used in manufacturing plants and industries
• Provides high weld quality with steel, stainless steel, and aluminum welding wires
• Designed for heavy-duty working conditions - hot weather conditions
• Maximum output current: 160 amp
• MMA mode
• Air cooling system
• Weldable size: 0.6, 0.8, 0.9, 1 mm
• Duty cycle: 100% (Minimum temperature 40 degrees 135 amps)
• Rated input power: 7 KVA
• Weight: 16 kg
• Dimensions: 62*31*46 cm
• Made in Iran
• 1-year warranty and 10-years after-sale services
• Contact us for more information
