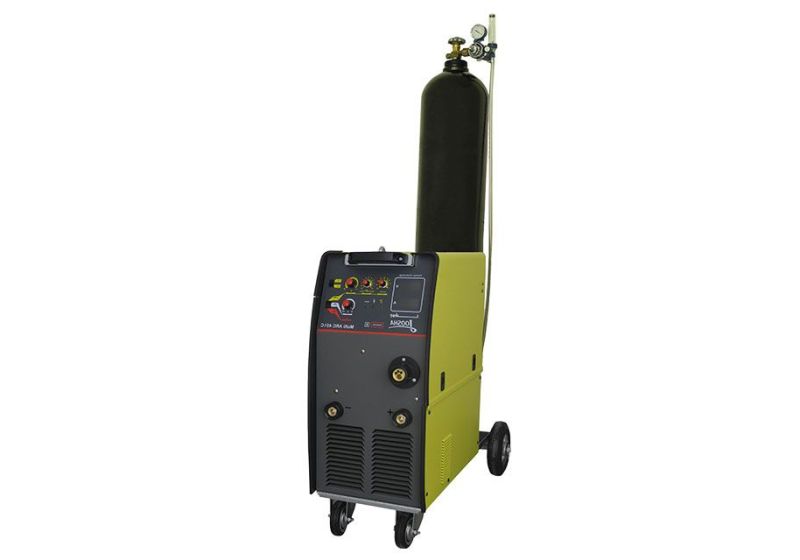

CO2 Welding Machine MULTI ARC 351

RSCO CO2 Welding Machine

Information:

• For welding by various types of copper and aluminum welding wires
• Power: 50-250 amp
• Protection class: IP21S
• Insulation class: F
• Voltage: AC380±15%
• Frequency: 50-60 Hz
• No-load voltage: 56 V
• Needs a gas capsule
• Rated input power: 8.4 KVA
• Power factor: 0.93
• Power, speed, output voltage, etc. volumes
• Automatic disconnect and reconnect system
• Accessories: torch and cable, ground cable and cramp, etc.
• Weight: 22.70 kg
• Dimensions:530*370*600 mm
• Miniature input fuse
• 1-year warranty and 5-years after-sale services
• Contact us for more information

RSCO CO2 Welding Machine

Information:

• For welding by various types of copper and aluminum welding wires
• Power: 50-315 amp
• Needs a gas capsule
• Protection class: IP21S
• Insulation class: F
• Device model: MIG-280G
• Voltage: AC380±15%
• Frequency: 50-60 Hz
• No-load voltage: 56 V
• Rated input power: 8.4 KVA
• Power factor: 0.93
• Power, speed, output voltage, etc. volumes
• Automatic disconnect and reconnect system
• Accessories: torch and cable, etc.
• Weight: 22.85 kg
• Dimensions: 530*370*600 mm
• Miniature input fuse
• 1-year warranty and 5-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for bonding metals that are used in manufacturing plants and industries
• suitable for various industries such as petrochemical industries, chemical industries, pipelines, food industries, boilers, automobiles, shipbuilding, military, space industries, metalworking, etc.
• Output current range: 50-250 amp
• Rated input power: 7.8 KVA
• Input current: 35 amp
• Power voltage: single phase - 220 volts - 50/60 Hz
• Output voltage: 15-31V
• Power factor: 0.93
• Efficiency: 85%
• Duty cycle: 60%
• Welding wire size: 1, 1.2, 1.6 mm
• IGBT system
• Workpiece thickness: 0.8-5 mm
• MigPulse welding mode with electrode welding capability (MIG/MMA)
• Weight: 28 kg
• Dimensions: 840*270*750 mm
• Made in Iran
• 1-year warranty and 10-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Used for bonding metals that are used in manufacturing plants and industries
• Stud welder model DA161 is suitable for high quality welding of stainless steel
• Maximum current 500A in MMA mode and 200A in TIG mode
• Ability to weld studs with a maximum current of 1000A for welding screws up to 16 mm
• Ability to adjust important welding parameters synergistically or manually
• Number of welding screws: 12 screws 14 mm per minute
• Graphic display for preset welding parameters
• Rated input power: 53 KVA
• Weight: 48 kg
• Dimensions: 60.5*47.5*69 cm
• Made in Iran
• 1-year warranty and 10-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for bonding metals that are used in manufacturing plants and industries
• Suitable for welding aluminum, iron, stainless steel on thin or thick sheets and pipes
• Current range: 25-450 amp
• Rated input power: 27 KVA
• Dimensions: 490*920*1025 mm
• Gas test knob and wire test
• Three phase
• Digital display to display the latest welding parameters
• Overload protection
• Energy saving capability
• Weight: 170 kg
• 1-year warranty and 10-years after-sale services
• Contact us for more information

CO2 Welding Machine

Information:

• Usable for bonding metals that are used in manufacturing plants and industries
• suitable for various industries such as petrochemical industries, chemical industries, pipelines, food industries, boilers, automobiles, shipbuilding, military, space industries, metalworking, etc.
• Output current range: 10-315 amp
• Rated input power: 16.5 KVA
• Input current: 25 amp
• Power voltage: three phase - 380 volts - 50/60 Hz
• Output voltage: 10-31.5 V
• Power factor: 0.85
• Efficiency: 85%
• Duty cycle: 60%
• Welding wire size: 0.8, 1, 1.2 mm
• IGBT system
• Workpiece thickness: 14 - 1.5 mm
• MigPulse welding mode with electrode welding capability (MIG/MMA)
• Weight: 82 kg
• Dimensions: 400*220*520 mm
• Made in Iran
• 1-year warranty and 10-years after-sale services
• Contact us for more information
