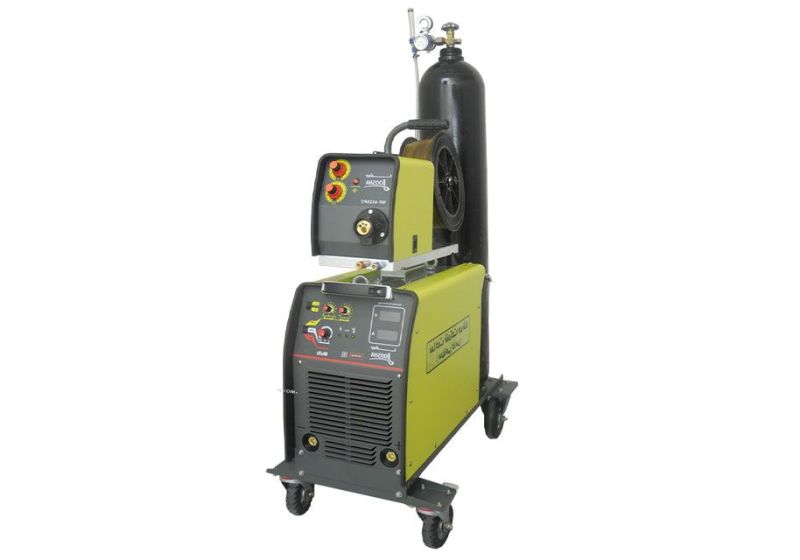

CO2 Welding Machine MULTI-MIG 1611

CO2 Welding Machine

Information:

  • To convert AC input to DC current
  • Maximum output current: 350 amp
  • Cool air and water torch model
  • Welding wire size: 0.6, 0.8, 0.9, 1, 1.2 mm
  • Current in 100% Duty Cycle, Minimum temperature 40 degrees: 400 amp
  • Current in 60% Duty Cycle, Minimum temperature 40 degrees: 410 amp
  • Rated input power: 25.2 KVA
  • Weight: 61 kg
  • Dimensions: 50*78*96 cm
  • Manufacturer: Joosha
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Read moreShow less
Product Details

Data sheet

Name
CO2 Welding Machine
Device Model
MULTI-MIG 1611
Power
25.2 kv.A
Input voltage
380v
After-sale services
10 years
Function system
electrical
Warranty
1 year
Quality rating by Rastegar Sanat from 0 to 100
80
Shipping Box
available
Made in
Iran
Weight
61 kg
Dimensions
78*50*96 cm
برق مورد نیاز دستگاه
3phases
آمپر خروجی
450A
نوع جوشکاری
electrode(MMA),CO2(MIG),argon(TIG)
