Argon digital welding machine TIG400PACDC | in RSCo
Argon digital welding machine TIG400PACDC | in RSCo

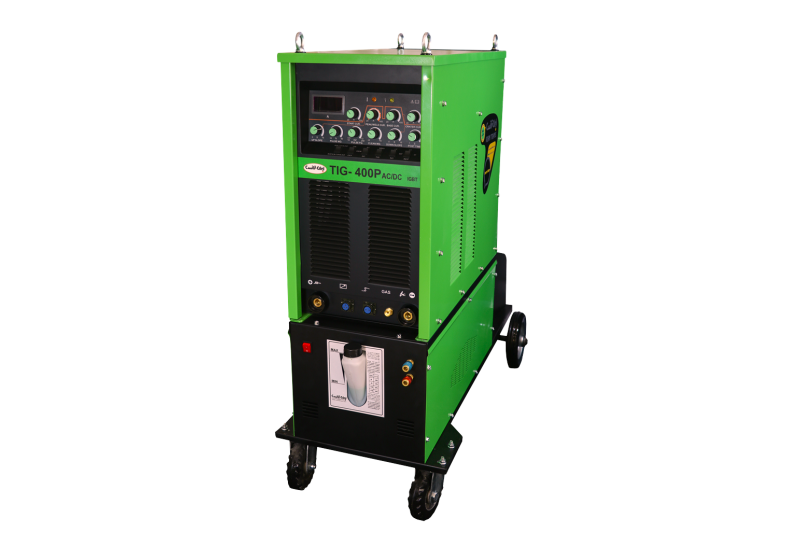

Argon digital welding machine TIG400PACDC Digital

Brand:
Iran Transe _ ایران ترانس

Argon Welding Machine

Information:

  • To weld all kinds of light and heavy industrial sheets
  • Suitable for welding blades and all types of aluminum alloy sheets with a thickness of more than 0.5 mm
  • Output current range: 5-400 amp
  • Rated input power: 11.8 KVA
  • Input power voltage: 380 V, three-phases
  • Frequency: 50-60 Hz
  • Output voltage: 30 V
  • No-load power consumption: 60 W
  • No-load voltage: 70 V
  • Efficiency: 85%
  • Duty cycle: 60%
  • Power factor: 0.93
  • Cuttable thickness: 30 mm
  • IGBT system
  • Usable electrode size: 1.6-4 mm (diameter)
  • TIG DC/AC/PULSE/MMA welding mode
  • Dimensions: 450*970*1060 mm
  • Weight: 107.5 kg
  • Made in Iran
  • 1-year warranty and 10-years after-sale services
  • Contact us for more information
Read moreShow less
authenticity and physical health of the product warranty
Available in stock
هفت روز ضمانت بازگشت کالا هفت روز ضمانت بازگشت کالا
ارسال رایگان ارسال رایگان
Cash On Delivery tehran Cash On Delivery tehran
Specialized advice when shopping Specialized advice when shopping
$2,948.40
Delivery: 1 to 3 weeks

فقط 5 عدد در انبار باقیست - پیش از اتمام بخرید

Product Details

Data sheet

Name
Argon Welding Machine
Device Model
TIG400PACDC Digital
Input voltage
380 v
After-sale services
10 years
Function system
IGBT
Output voltage
30 v
Frequency
50 - 60 Hz
Warranty
1 year
Quality rating by Rastegar Sanat from 0 to 100
60
Shipping Box
available
Made in
Iran
Weight
107.5 kg
Dimensions
970*450*1060 mm
برق مورد نیاز دستگاه
3 phase
آمپر خروجی
400A
نوع جوشکاری
electrode(MMA),argon(TIG)
