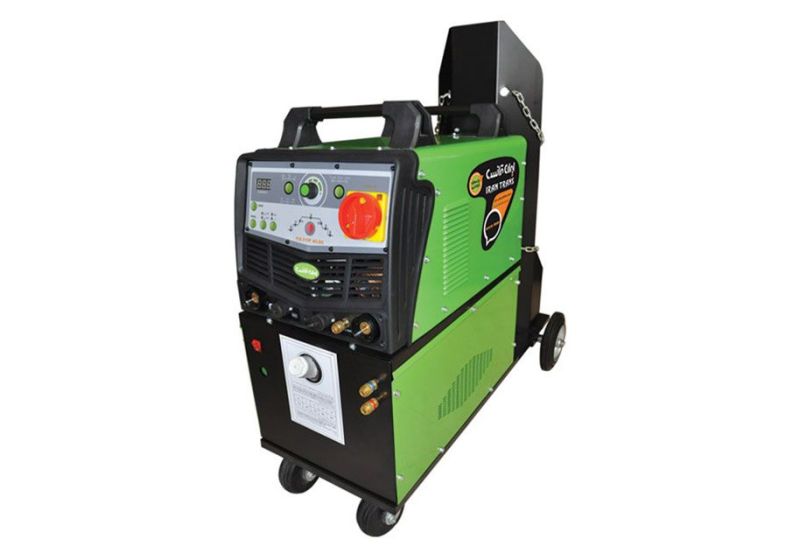

Argon Welding Machine TIG315PACDC DIGITAL

Brand:

Iran Transe _ ایران ترانس

دسته بندی : Welding machines

Argon Welding Machine

Information:

To weld all kinds of light and heavy industrial sheets
Output current range: 10-315 amp
Rated input power: 8.9 KVA
Input power voltage: 380 V, three-phases
Frequency: 50-60 Hz
Output voltage: 23 V
No-load power consumption: 60 W
No-load voltage: 54 V
Efficiency: 85%
Duty cycle: 60%
Power factor: 0.93
Cuttable thickness: 1-15 mm
IGBT system
Usable electrode size: 1.6-5 mm (diameter)
TIG DC/TIG AC/MMA welding mode
Dimensions: 365*440*780 mm
Weight: 65 kg
Made in Iran
1-year warranty and 10-years after-sale services
Contact us for more information

Add to wishlist

Add to compare0

out of stock

Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.

موجود شد خبرم کن

Product Details
Reviews (0)

Product Details

Data sheet

Name: Argon Welding Machine

Device Model: TIG315PACDC DIGITAL

Input voltage: 380 v

After-sale services: 10 years

Function system: IGBT

Output voltage: 23 v

Frequency: 50 - 60 Hz

Warranty: 1 year

Quality rating by Rastegar Sanat from 0 to 100: 80

Shipping Box: available

Made in: Iran

Weight: 65 kg

Dimensions: 440*365*780 mm

برق مورد نیاز دستگاه: 3phases

آمپر خروجی: 315A

نوع جوشکاری: electrode(MMA),argon(TIG)
