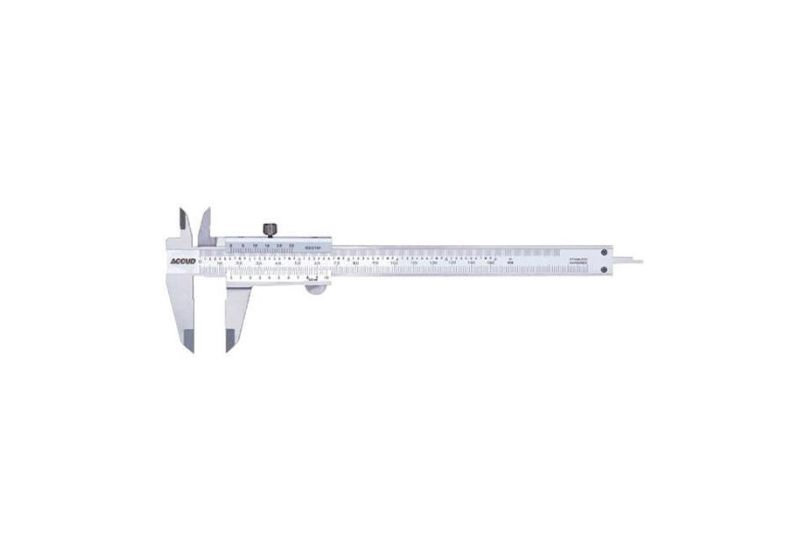

Accud vernier caliper 20 cm model 12-008-120
Accud vernier caliper 20 cm model 12-008-120
Accud vernier caliper 20 cm model 12-008-120
Accud vernier caliper 20 cm model 12-008-120
Accud vernier caliper 20 cm model 12-008-120
Accud vernier caliper 20 cm model 12-008-120

Accud vernier caliper 20 cm model 12-008-120

Brand:
آکاد - ACCUD

Vernier caliper

Information:

  • The caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Body made of stainless steel
  • Suitable for internal, external, depth and pitch measurements
  • The ability to change the measurement range in inches and millimeters
  • The height of the upper jaw to the fixed body is 23.5 mm and to the movable body is 19 mm
  • Accuracy: 0.02 mm
  • Measurable size: 0-200 mm
  • Measurement error: ± 0.03
  • Manual operation system
  • Jaw size: 50 mm
  • Length and width: 290 and 16 mm
  • Body with chrome coating
  • Made in China
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

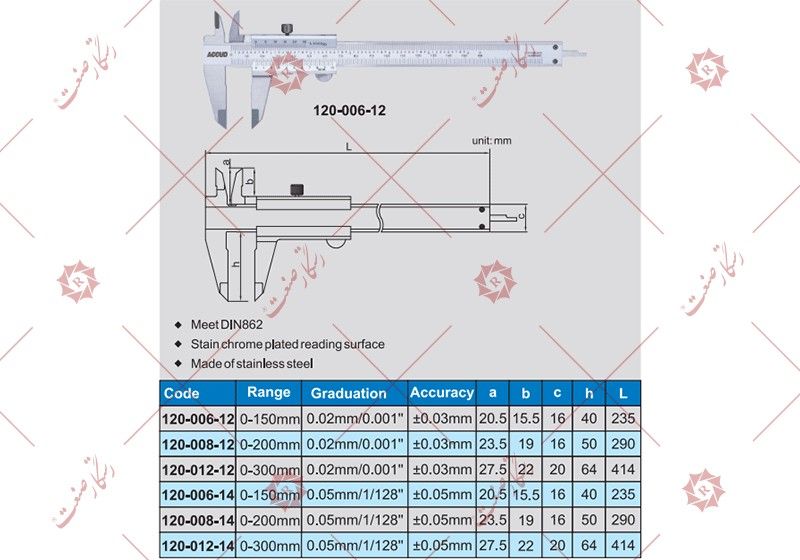

Data sheet

Name
Vernier caliper
Model
12-008-120
Size
0-200 mm
Jaws size
50 mm
After-sale services
unavailable
Function system
Manual
Production material
stainless steel
Accuracy
0.02 mm
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
70
Made in
China
Reviews (0)

No customer reviews for the moment.

You may also like
Accud measuring clock dial model 01-001-222 Accud measuring clock dial model 01-001-222
Out-of-Stock

Dial gauge indicator

Information:

  • The measuring watch is used to detect the roughness, lameness, thickness and double width value of the parts.
  • Measuring range: 1 mm
  • Scale: 0-100-0
  • Accuracy: 5 microns
  • Gradation: 0.01 mm
  • Limited category
  • Sealed against dust
  • Watch glass resistant to scratches and wear
  • Has a locking screw
  • Made in China
Accud Micrometer inside digital gauge 25-30model 01-007-361 Accud Micrometer inside digital gauge 25-30model 01-007-361
Out-of-Stock

Micrometer

Information:

  • A digital micrometer is used to measure the length with high accuracy.
  • Used for accurate measurement of parts in industry and laboratories
  • Suitable for indoor measurements
  • Measurement size: 25-30 mm
  • Equipped with a digital display
  • Has an on/off button and settings
  • Display resolution: 0.001 mm
  • The ability to measure in two ranges, mm / inch
  • Made in China
Accud Digital micrometer 0-25 model 02-001-312 Accud Digital micrometer 0-25 model 02-001-312

$41.40

Digital Micrometer

Information:

  • A digital micrometer is used to measure the length with high accuracy
  • Used for accurate measurement of parts in industry and laboratories
  • Measurement size: 0-25 mm
  • Equipped with a digital display
  • It has on, off, UNIT/SET, O/ABS button
  • Display resolution: 0.001 mm
  • The ability to measure in two ranges, mm / inch
  • With the ability to turn off and on automatically
  • Accuracy: 3 micrometers
  • Distance between jaws: 32 mm
  • Jaw depth: 20 mm
  • Made in China
  • Jaw length: 32 mm
Accud large throat micrometer 0-150 model 01-006-325 Accud large throat micrometer 0-150 model 01-006-325
Out-of-Stock

Micrometer

Information:

  • A micrometer is used to measure the thickness with high accuracy.
  • Used for accurate measurement of parts in industry and laboratories
  • Size: 0-150 mm
  • Measurement accuracy: +/- 6 micrometers
  • Stainless steel jaw material
  • Grading in terms of: 0.01 mm
  • Equipped with a ratchet stopper
  • It has two end screws
  • Length width: 158 mm
  • Jaw depth: 58 mm
  • Made in China
Accud digital caliper model 16-006-111 Accud digital caliper model 16-006-111
Out-of-Stock

Digital caliper

Information:

  • A digital caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Measurable size: 0-150 mm
  • It has an on/off button and inch/mm and zeroing
  • The height of the main jaw to the body is 40 mm and the height of the upper jaw to the fixed body is 21 mm
  • Ability to measure in millimeters and inches
  • Error: ± 0.03 mm
  • Accuracy: 0.01 mm
  • Made of stainless steel
  • Equipped with a thumb roller for easier use
  • Length and width: 236 and 16 mm
  • Made in China
  • Buy Acad digital calipers at the best price on Rostgar Sanat website
  • For more information and the price of Akad digital calipers, please contact the sales office.
Accud simple caliper 13 cm model 11-005-125 Accud simple caliper 13 cm model 11-005-125
Out-of-Stock

Vernier caliper

Information:

  • The caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Body made of chrome alloy steel with plating
  • Suitable for internal, external, depth and pitch measurements
  • Height of the main jaw to the body: 40 mm
  • Has a short diamond jaw
  • Accuracy: 0.02 mm
  • Measurable size: 0-130 mm
  • Error rate: ± 0.03
  • Manual operation system
  • Body length and width: 230 and 16 mm
  • Buy all kinds of calipers at the best price on Rostgar Sanat website
  • For more information and prices of calipers, please contact the sales office.
Accud simple caliper 15 cm model12-006-124 Accud simple caliper 15 cm model12-006-124

$30.60

Vernier caliper

Information:

  • The caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Body made of stainless steel
  • Suitable for internal and external measurements
  • Has a short diamond jaw
  • The height of the main jaw to the body is 40 mm and the height of the upper jaw to the fixed body is 20.5
  • The ability to change the measurement range in inches and millimeters
  • Measurable size: 0-150 mm
  • Error percentage: ± 0.03
  • Accuracy: 0.02 mm
  • Length and width: 235 and 16 mm
  • Manual operation system
  • Body with chrome coating
  • Selling calipers at the best price on Rostgar Sanat site
  • For more information and the price of regular calipers, please contact the sales office.
Insize simple caliper 15 cm model 1501-1238 Insize simple caliper 15 cm model 1501-1238
Out-of-Stock

Vernier caliper

Information:

  • The caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Body made of stainless steel
  • Suitable for internal, external, depth and pitch measurements
  • The height of the upper jaw to the fixed body is 21 mm and to the movable body is 16.5 mm
  • Measurable size: 0-150 mm
  • Height of the main jaw to the body: 40 mm
  • Measured in millimeters and inches
  • In order to better read the chrome plated surface
  • Accuracy: ± 0.03
  • Manual operation system
  • Body length and width: 230 mm and 16 mm
  • Made in China
  • Buy calipers at the best price on Rostgar Sanat website
  • For more information and calliper price, contact the sales office.
