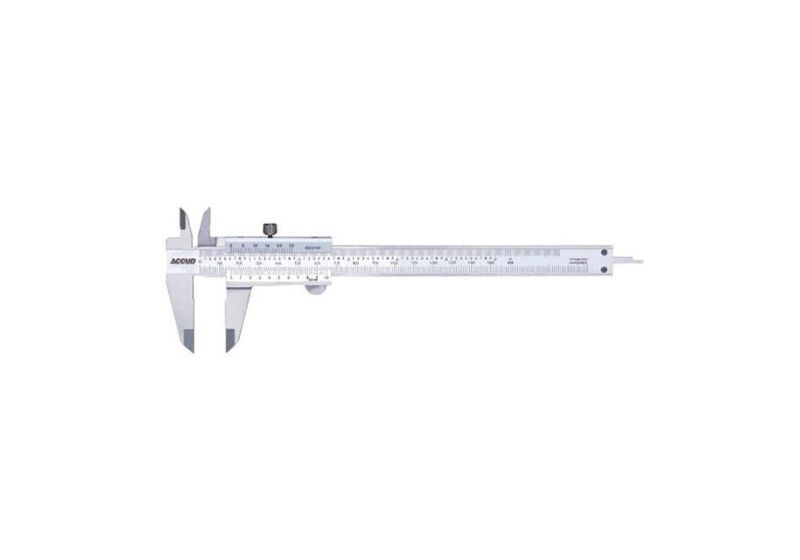

Accud vernier caliper 30 cm model 12-012-120

Collis Accud

Information:

  • The caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
  • Body made of stainless steel
  • Suitable for internal, external, depth and pitch measurements
  • Height of the main jaw to the body: 64 mm
  • The ability to change the measurement range in inches and millimeters
  • The height of the upper jaw to the fixed body is 27.5 mm and to the movable body is 22 mm
  • Measurable size: 0-300 mm
  • Accuracy: 0.02
  • Manual operation system
  • Length and width: 414 and 20 mm
  • Body with chrome coating
  • Selling calipers at the best price on Rostgar Sanat site
  • For more information and prices of calipers, please contact the sales office.
Read moreShow less

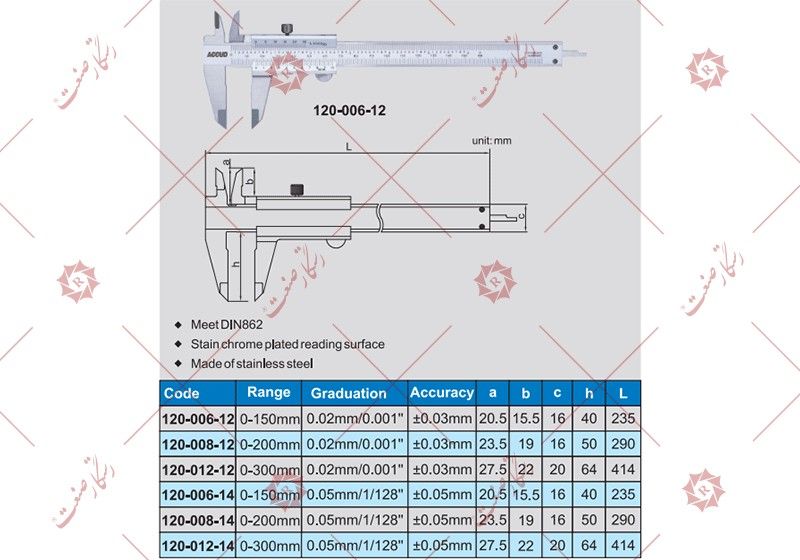

Product Details

Data sheet

Name
Vernier caliper
Model
12-012-120
Size
0 - 300 mm
Jaws size
64 mm
After-sale services
unavailable
Function system
Manual
Production material
stainless steel
Accuracy
0.02 mm
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
70
Made in
China
Overall length
414 mm
