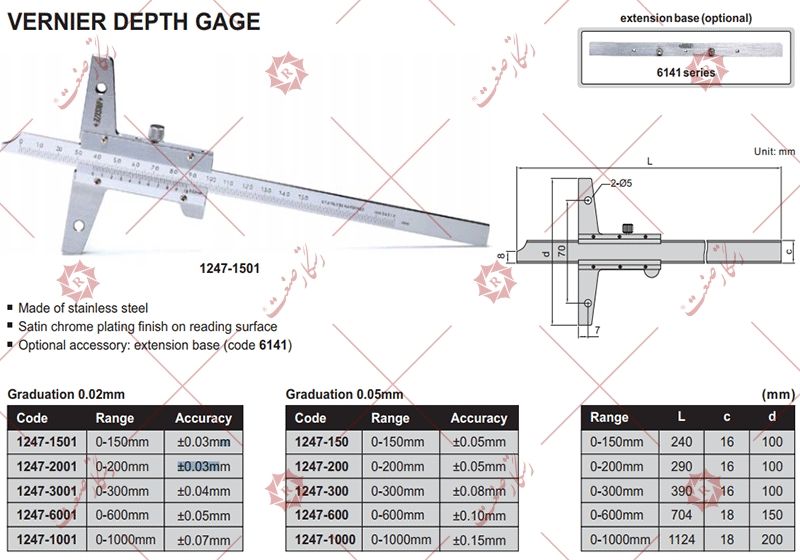

Insize vernier depth gauge model 1247-2001
Insize vernier depth gauge model 1247-2001
Insize vernier depth gauge model 1247-2001
Insize vernier depth gauge model 1247-2001
Insize vernier depth gauge model 1247-2001
Insize vernier depth gauge model 1247-2001

Insize vernier depth gauge model 1247-2001

Brand:
اینسایز - INSIZE

Depth gauge

Information:

  • The depth gauge is used to measure all kinds of depth and precise and fine grooves with high accuracy.
  • Size: 0 to 200 mm
  • Accuracy: +/- 0.03 mm
  • Gradation in terms of 0.1 mm
  • Made of high resistance stainless steel
  • Total length: 290 mm
  • in millimeters
  • High build quality
  • Made in China
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Depth gauge
Model
1247-2001
Size
0 - 200 mm
After-sale services
Unavailable
Production material
Steel
Accuracy
+/-0.03 mm
Warranty
Unavailable
Calibration sheet
available
Quality rating by Rastegar Sanat from 0 to 100
60
Made in
China
Overall length
290 mm
Reviews (0)

No customer reviews for the moment.
