Insize digital depth gauge model 150A-1141

Dial Depth gauge

Information:

• The depth gauge is used to measure all kinds of depth and precise and fine grooves with high accuracy.
• Size: 0 to 300 mm
• Grading in terms of 0.01 mm
• Made of stainless steel
• Accuracy: ±0.03 mm
•  Clockwise operating system
• Very fine and precise tip
• Body size: 63x17 mm
• It has a graduated dial
• High build quality
• Made in China

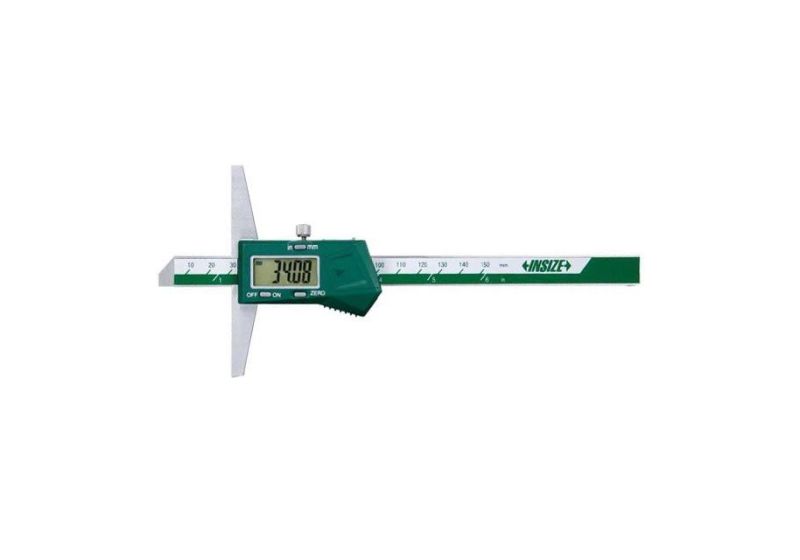

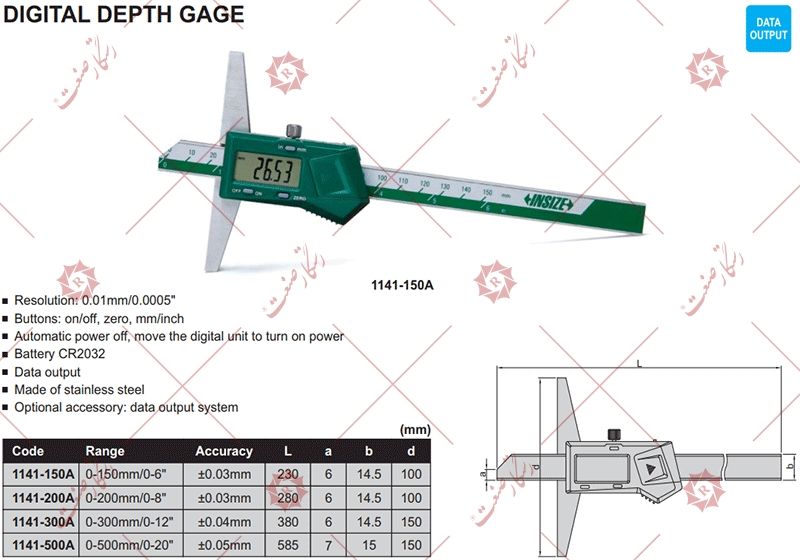

Digital Depth gauge

Information:

• The depth gauge is used to measure all kinds of depth and precise and fine grooves with high accuracy.
• Size: 0 to 150 mm
• Accuracy: ±0.04 mm
• Grading in terms of 0.01 mm
• Has on / off and zero button
• Ability to measure in two units, mm and inch
• Made of stainless steel
• Equipped with a digital screen
• High build quality
• Made in China

Digital Depth gauge

Information:

• The depth gauge is used to measure all kinds of depth and precise and fine grooves with high accuracy.
• Size: 0 to 25 mm
• Accuracy: ±0.03 mm
• Grading in terms of 0.01 mm
• It has an on/off button and inch/mm and zero
• Ability to measure in two units, mm and inch
• Made of stainless steel
• Resolution: 0.01 mm
• Has a thumb roller for easier use
• Equipped with data output port and automatic on and off
• Digital operation system
• Equipped with a digital screen
• High build quality
• Made in China

Depth gauge

Information:

• We use Depth gauge measure to depth and dents with high precision.
• With many blades.
• In different lengths.
• Industrial spring divider is made of stainless steel.
• In different height .
• Equipped with twp end hook
• In different sizes .
• Precision of this device is very high .
• Working system : manual
• Can measure mm.
• Made with high quality.
• Contact us for more information.

compass tool

Information:

• The industrial caliper inside the gauge is used to measure the dimensions of objects, especially the outer and inner diameters of cylindrical parts.
• Suitable for measuring internal dimensions
• Height: 150 mm
• The measurable range is 15-140 mm
• Made of carbon steel
• High build quality
• Made in China

Industrial ruler

Information:

• Use a ruler to draw lines or use the scale included in the ruler to measure.
• This type of counter is used to display the output and data of this ruler.
• Digital operation system
• Equipped with a digital screen
• Measurable size: 1000 mm
• Accuracy: ±5 microns
• Made of stainless steel
• Moving speed: 50 meters per minute
• Resolution: 1 micron
• Cable length: 5 meters
• Comes with mounting base, dust cover, L-shaped bracket and accessories for installation
• Made in China

Protractor

Information:

• Protractor is used to measure the angle of a slope, height or length of an object.
• Measuring ability: 10 to 170 degrees
• Manual operation system
• Grading as 1 grade
• Equipped with a movable blade
• Carbon steel body material
• Accuracy: ±3 mm
• High build quality
• Made in China

Digital caliper

Information:

• A digital caliper is used to measure the diameter of the workpiece, the depth of the groove, the inner diameter of cylinders, bushings and the height of different parts.
• Because of the external jaws, internal dimensions can be measured by this caliper.
• Can be used to measure the diameter of holes and grooves
• Measurable size: 24-150 mm
• Has an on/off button
• Ability to measure in millimeters and inches
• Error: ± 0.04 mm
• Body made of stainless steel
• Equipped with automatic shutdown
• Made in China
