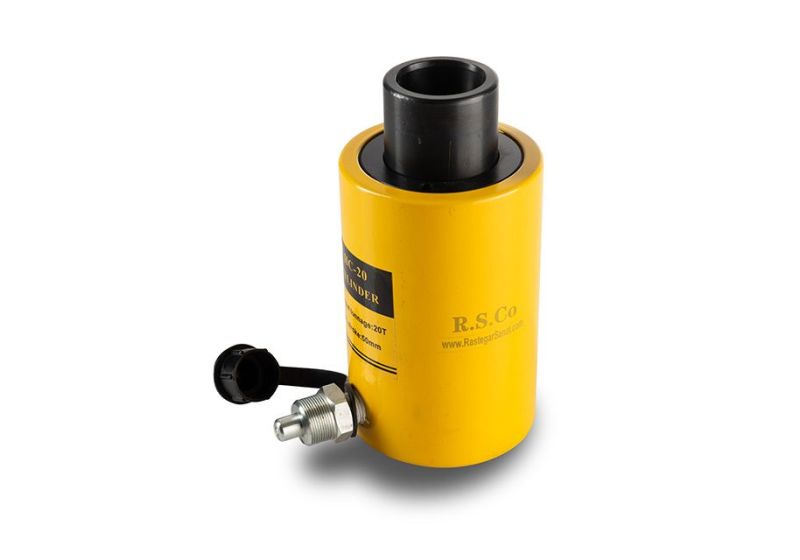

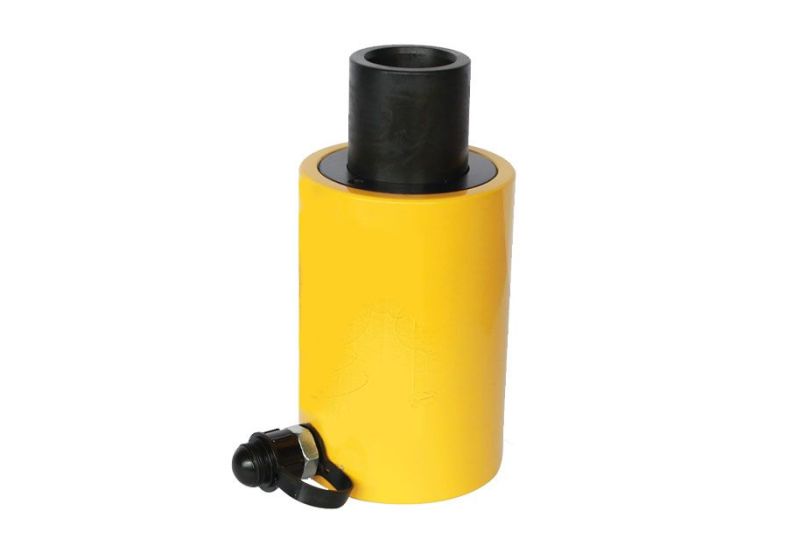

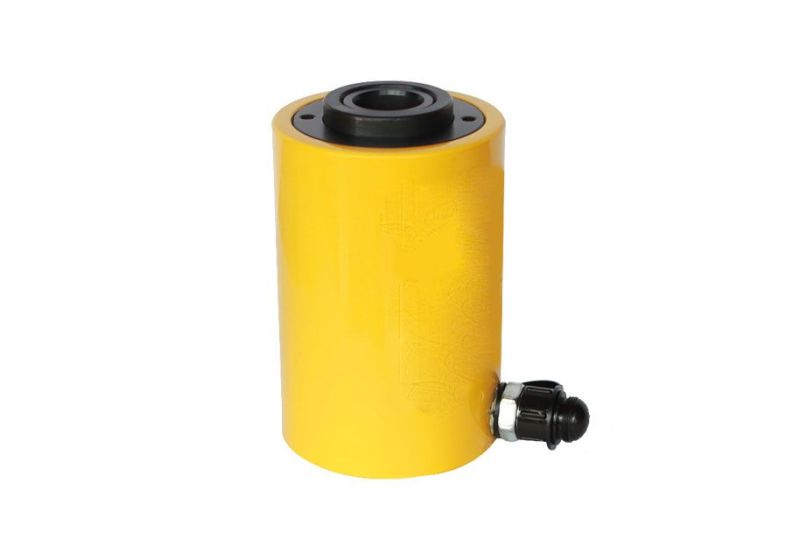

RSCO Single-acting Hollow Plunger Cylinders HCB5-30T

Hydraulic Jack

Information:

• Power: 60 tons / 562 KN
• stroke 50mm
• Effective area: 80.3 cm
• Oil capacity: 402 cm3
• Closed mode height: 247 mm
• extended height 297 mm
• outside diameter 158 mm
• inside diameter 123 mm
• center hole(G) : 54 mm
• piston rod diameter 91 mm
• Weight: 30.2 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Minimum Operating Pressure 35 bar
• Capacity Class 16t
• Stroke 260mm
• Extended Height 751 mm
• Return Type Double-Acting, Hydraulic Return
• Material : steel
• Cylinder Effective Area Advance 20.3 cm2
• Cylinder Effective Area Retract 10.6 cm2
• Oil Capacity Advance 528 cm3
• Oil Capacity Retract 276cm3
• Cylinder Capacity Advance At 350 : 69bar
• Cylinder Capacity Retract At 350 : 36.9 bar
• Surface Treatment : paint
• Weight : 14.5 kg
• Made in USA
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 5 ton
• Maximum Cylinder Capacity Advance 45kn
• Stroke 177mm
• Collapsed Height 273mm
• Extended Height 450 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 6.4 cm2
• Oil Capacity Advance 115 cm3
• Weight : 2.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50 ton
• Maximum Cylinder Capacity Advance 498 kn
• Stroke 51mm
• Collapsed Height 176 mm
• Extended Height 227 mm
• Return Type : Single-Acting, Spring Return
• Material : steel
• Cylinder Effective Area Advance 71.3 cm2
• Oil Capacity Advance 362 cm3
• Weight : 15 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity 890 kn
• Stroke 153 mm
• Jack Effective Area 133.1 cm2
• Pump Speed : 2-Speed
• Weight 74.4 kg
• Made in USA
• After-sale services
• Contact us for more information

Bottle Jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• capacity : 10 tons
• Max height : 460 mm
• Minimum height : 230 mm
• adjust height 60 mm
• It has a wide and very strong base for greater stability and strength
• It has a two-piece lever to open the oil jack
• Steel auxiliary screw for height adjustment and safety valve
• It has a series of teeth for greater safety when lifting the car
• Made with high quality
• Weight : 6.5 kg
• Made in China
• Contact us for more information.
