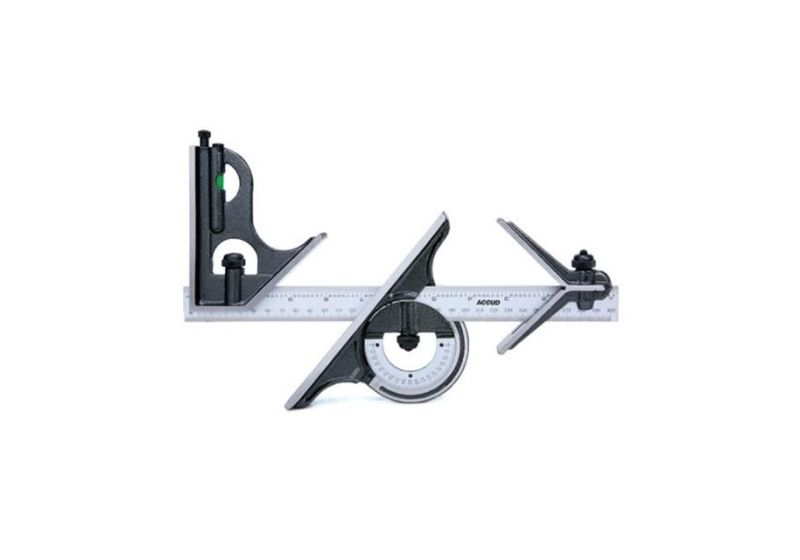

Accud compound precision square model 02-180-817

Industrial square

Information:

• A compound gonior is a measuring and protractor tool commonly used for staking out 90° angles, staking out 45° angles, finding the center of a circle, finding the depth of a slot or hole, and measuring simple and short distances.
• Can be used to obtain the slope of the surface
• Used for measuring and entering angles as well as controlling angles
• It has protractor, ruler, ruler and center finder
• 0.5 mm and 1/32 inch graduations on the ruler
• 1 mm and 1/64 inch graduations on the back of the ruler
• Ability to measure and control in two angles of 45 and 90 degrees
• Accuracy at 90 degree angle: ±8 seconds
• Accuracy at 45 degree angle: ±10 seconds
• Protractor size: 0-180 degrees
• Ruler length: 300 mm
• Center finder with accuracy: ±0.15 mm
• Using the center finder to find the center of the cylinder or rotating objects
• High build quality
• Made in China
