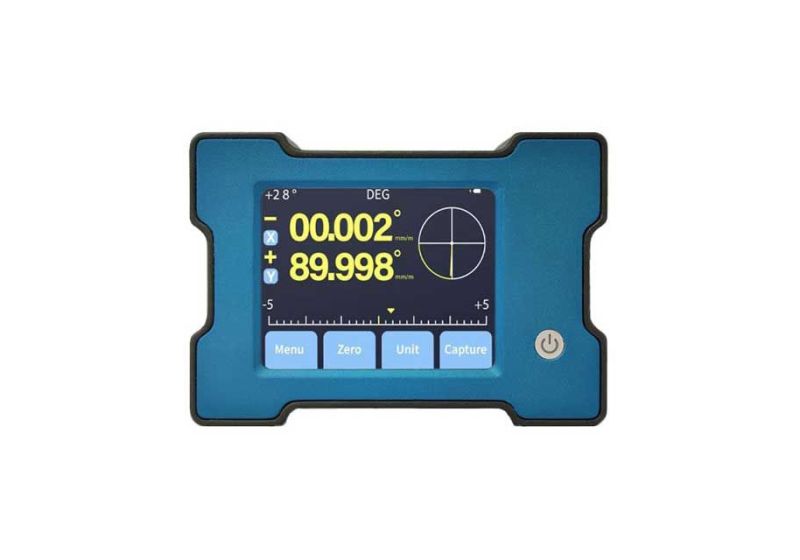

Najm digital protractor and inclinometer model HDI-PRO V2

Protractor

Information:

  • Digital inclinometers and protractors are used to measure the angle of a slope, height or height of an object with high accuracy.
  • Equipped with a 2.8-inch digital display
  • Measurement in units of degrees and seconds of arc
  • Measurable range: ±180 degrees
  • Temperature compensation system between 0-50 degrees
  • Accuracy: ±0.03 ~ ±0.003 degrees
  • Resolution: 0.001 degrees
  • 36 hours of continuous work
  • Absolute and relative measurement and relative rotation on one page
  • 1 year warranty
  • Construction of the country of Iran
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Protractor
Model
HDI-PRO V2
Size
±180 degrees
Function system
Digital
Production material
aluminium
Accuracy
±0.03 ~ ±0.003 degrees
Operating temperature
0-50 degrees
Warranty
12 months
Quality rating by Rastegar Sanat from 0 to 100
60
Made in
Iran
Reviews (0)

No customer reviews for the moment.

You may also like
$44.10

Precision Square

Information:

  • The ruler is used to measure and insert angles as well as control angles.
  • Material: hardened stainless steel
  • Internal angle accuracy: 0.03 mm (32 microns)
  • External angle accuracy: 0.04 mm (35 microns)
  • The ability to measure angles with external and internal corners
  • Size: 100 x 150 mm
  • 45 degree angle
  • With a product exchange guarantee (if not calibrated)
  • Made in China under Austrian license
Out-of-Stock

Industrial square

Information:

  • A compound gonior is a measuring and protractor tool commonly used for staking out 90° angles, staking out 45° angles, finding the center of a circle, finding the depth of a slot or hole, and measuring simple and short distances.
  • Can be used to obtain the slope of the surface
  • Used for measuring and entering angles as well as controlling angles
  • It has protractor, ruler, ruler and center finder
  • 0.5 mm and 1/32 inch graduations on the ruler
  • 1 mm and 1/64 inch graduations on the back of the ruler
  • Ability to measure and control in two angles of 45 and 90 degrees
  • Accuracy at 90 degree angle: ±8 seconds
  • Accuracy at 45 degree angle: ±10 seconds
  • Protractor size: 0-180 degrees
  • Ruler length: 300 mm
  • Center finder with accuracy: ±0.15 mm
  • Using the center finder to find the center of the cylinder or rotating objects
  • High build quality
  • Made in China
Out-of-Stock

Industrial square

Information:

  • Industrial ruler is used for measuring and inserting angles as well as controlling angles.
  • The overall length of the ruler: 0-300 mm
  • Width: 120 mm
  • Thickness: 18 cm
  • Has an indicator needle
  • Ruler made of stainless steel against rust
  • Ability to align in two angles of 45 and 90 degrees
  • Gunya height: 3 inches
  • Has a number of water bubbles for leveling
  • Chrome plated ruler blade for long life
  • Graduation in centimeters and inches
  • Made in England
$84.60

Protractor

Information:

  • Digital inclinometer is used to measure the angle of a slope, height or height of an object with high accuracy.
  • It has a magnetic floor and an aluminum frame with high strength and light weight
  • Dimensions: 150x60x33 mm
  • Equipped with a digital display
  • Measurable range: 0-360 degrees
  • Measurements in units of millimeters per meter, percent and feet per inch
  • Resolution: 0.05 degrees
  • Accuracy: ±0.1 degrees
  • Can be used in 4 directions
  • Equipped with V-shaped magnetic base
  • It is possible to zero the inclinometer at the desired angle
  • Equipped with unlimited memory in the horizontal direction
  • It has an on/off and reset button
  • Shutdown automatically
  • High build quality
  • Made in China
Out-of-Stock

Protractor

Information:

  • A digital protractor is used to measure the angle of a slope, height or height of an object with high accuracy.
  • Showing the angle between the horizon and the vertical
  • Equipped with a digital screen
  • Measuring range: 0 to 180 degrees
  • Measurement accuracy: 0.1 degrees
  • It has two bubble levels
  • Manual / digital operation system
  • Total length: 34 cm
  • Working temperature: -20 to 50 degrees Celsius
  • Body material: Aluminum
  • Weight: 1042 grams
Out-of-Stock

Protractor

Information:

  • Protractor is used to measure the angle of a slope, height or length of an object.
  • Measuring ability: 10 to 170 degrees
  • Manual operation system
  • Grading as 1 grade
  • Equipped with a movable blade
  • Carbon steel body material
  • Accuracy: ±3 mm
  • High build quality
  • Made in China
$86.40

Protractor

Information:

  • Protractor is used to measure the angle of a slope, height or length of an object.
  • Measuring range: 0 to 360 degrees
  • Accuracy: ±5 inches
  • Manual operation system
  • Equipped with a magnifying glass for better and easy reading of the rating
  • Carbon steel body material
  • High build quality
  • Classification: 5 degrees
  • It has two replaceable sliding blades of 6 and 12 inches
  • Ability to install on a base
  • Made in China
