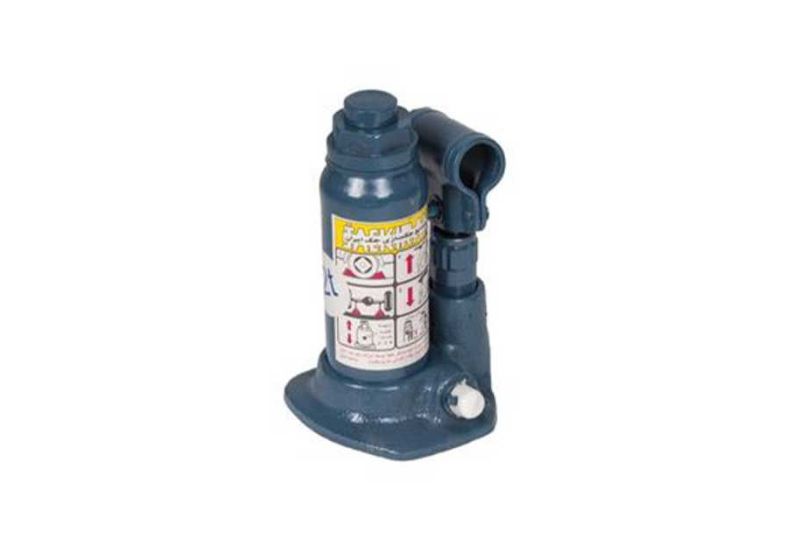

Jak Iran Hydraulic Bottle Jack 6 ton A-165

Hydraulic Cylinder

Information:

• A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
• stroke 10 mm
• effective area 19.9 cm2
• Cylinder capacity 10 ton / 111KN
• oil capacity 16 cm3
• closed height 48 mm
• extended height 58 mm
• outside diameter 83*60 mm
• inside diameter 45 mm
• piston rod diameter 38 mm
• weight 1.6 kg
• Working pressure :700bar
• Compact, flat design for use in confined spaces
• Single acting, spring return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Grooved piston rods require no saddle
• Mounting holes permit easy fixturing
• Cylinder bores are roller burnished to harden the surface and make
  it smoother
• 1-year after sale services
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift up objects using its oil power in tank
• Lifting weight: 100 tons
• Oil tank capacity: 200 cc
• Length in closed mode: 92 mm
• Length in open mode: 100 mm
• Dimensions: 10*17*25 cm
• Weight: 14 kg
• Made in China
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Power: 152 tons
• Maximum working pressure: 700 bars
• Oil tank capacity: 4320 cm
• Effective area: 212.8 cm
• Two way model
• Length: 503 mm
• External diameter: 270 mm
• High build quality
• Weight: 170 kg
• Made in USA
• Contact us for more information

Hydraulic Cylinder

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 50t
• Maximum Cylinder Capacity Advance 496 kn
• Stroke 150mm
• Collapsed Height 301 mm
• Extended Height 451 mm
• Return Type Double-Acting, Hydraulic Return
• Plunger Type : solid
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Cylinder Effective Area Retract 26.7cm2
• Oil Capacity Advance 1063cm3
• Oil Capacity Retract 401cm3
• Weight: 14.3 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• To lift objects using oil power in the tank
• Maximum working power: 200 tons
• Available in 50-1000 tons
• Lifting size: 200 mm
• Length when the shaft is closed: 518 mm
• High build quality
• External diameter: 385 mm
• Oil tank capacity: 16077 cm
• Weight: 458 kg
• Made in China
• Contact us for more information

Hydraulic jack

Information :

• Hydraulic jack is used to lift up objects using its oil power in tank.
• Max pressure : 5 Ton
• Minimum height : 216 mm
• maximum height : 413 mm
• Equipped with an auxiliary screw to adjust the height
• Made with high quality
• Has a BMC bag
• Weight : 4.8 kg
• Made in china
• Contact us for more information.

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity Class 30 ton
• Maximum Cylinder Capacity Advance 358kn
• Stroke 100mm
• Collapsed Height 267mm
• Extended Height 367 mm
• Center Hole Diameter 34mm
• Return Type : Single-Acting, Spring Return
• Material : Aluminum
• Cylinder Effective Area Advance 51.1cm2
• Oil Capacity Advance 511cm3
• Weight : 9.5 kg
• Made in USA
• After-sale services
• Contact us for more information

Hydraulic Jack

Information:

• Maximum working pressure 700 bar
• Capacity Class 50 t
• Maximum Cylinder Capacity Advance 496kn
• Stroke 100 mm
• Collapsed Height 236mm
• Extended Height 336mm
• Return Type : Single-Acting, Spring Return
• Material : Aluminum
• Cylinder Effective Area Advance 70.9cm2
• Oil Capacity Advance 709cm3
• Weight: 9.8 kg
• Made in USA
• After-sale services
• Contact us for more information
