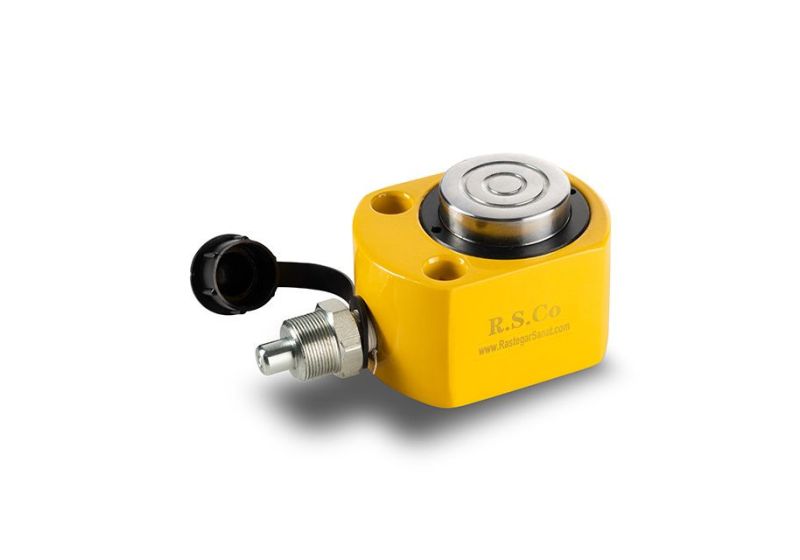

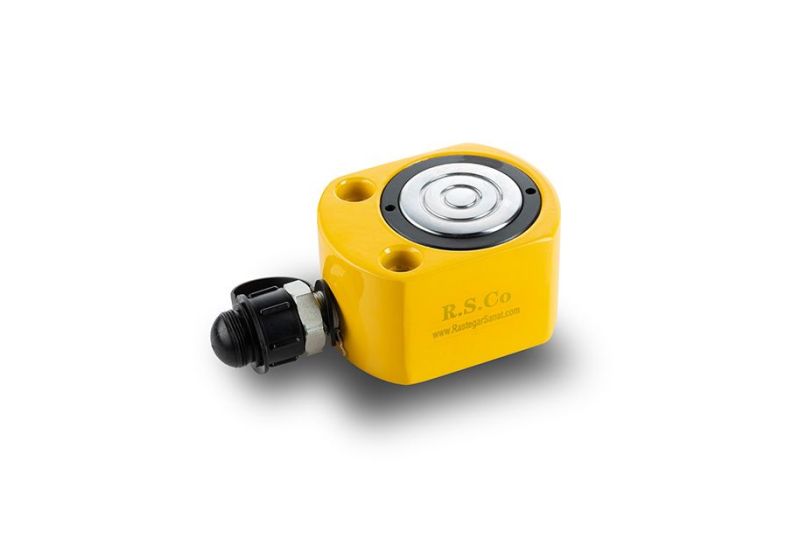

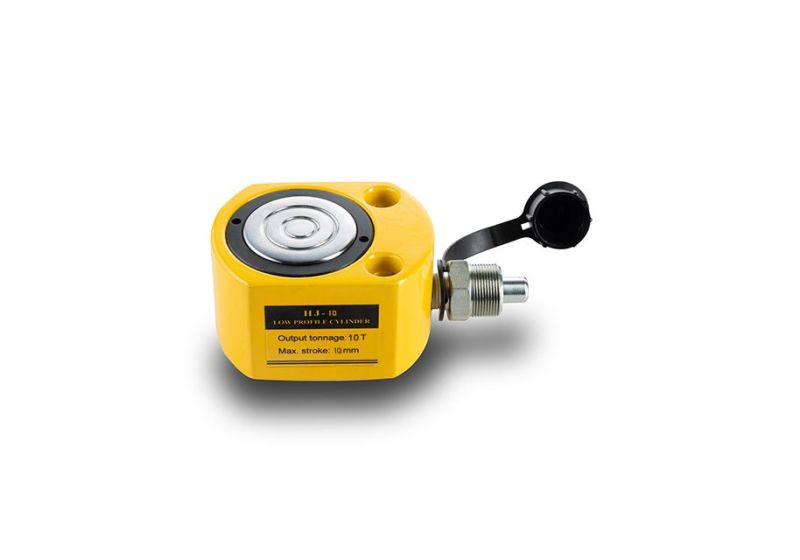

RSCo Flat Hydraulic Cylinder HJR5-10T

Brand:

Hydraulic Cylinder

Information:

A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects

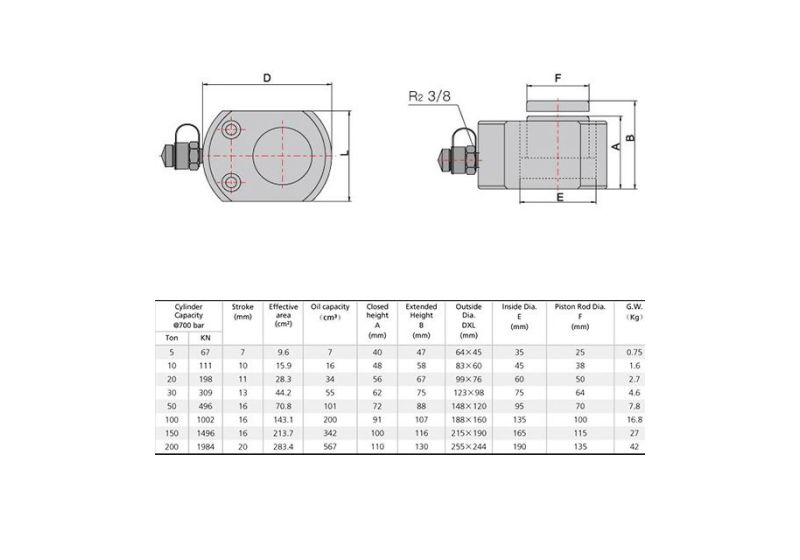

stroke 10 mm
effective area 19.9 cm2
Cylinder capacity 10 ton / 111KN
oil capacity 16 cm3
closed height 48 mm
extended height 58 mm
outside diameter 83*60 mm
inside diameter 45 mm
piston rod diameter 38 mm
weight 1.6 kg
Working pressure :700bar
Compact, flat design for use in confined spaces
Single acting, spring return
High strength alloy steel for durability
Chrome plated piston resists wear and corrosion
Baked enamel finish for increased corrosion resistance
Grooved piston rods require no saddle
Mounting holes permit easy fixturing
Cylinder bores are roller burnished to harden the surface and make
it smoother
1-year after sale services
Contact us for more information

Hydraulic Cylinder

Information:

$379.80

Hydraulic Cylinder

Information:

A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
stroke 11 mm
Cylinder capacity 20 ton / 198KN
effective area 28.3 cm2
oil capacity 34 cm3
closed height 56 mm
extended height 67 mm
outside diameter 99*76 mm
inside diameter 60 mm
piston rod diameter 50 mm
weight 2.7 kg
Working pressure :700bar
Compact, flat design for use in confined spaces
Single acting, spring return
High strength alloy steel for durability
Chrome plated piston resists wear and corrosion
Baked enamel finish for increased corrosion resistance
Grooved piston rods require no saddle
Mounting holes permit easy fixturing
Cylinder bores are roller burnished to harden the surface and make
it smoother
1-year after sale services
Contact us for more information

Out-of-Stock

Hydraulic Cylinder

Information:

$231.30

Hydraulic Cylinder

Information:

A hydraulic book jack is a device in which a force is applied to the oil in a small cylinder, which is used to lift objects
stroke 7 mm
effective area 9.6 cm2
Cylinder capacity 5 ton / 67KN
oil capacity 7 cm3
closed height 40 mm
extended height 47 mm
outside diameter 64*45 mm
inside diameter 35 mm
piston rod diameter 25 mm
weight 0.75 kg
Working pressure :700bar
Compact, flat design for use in confined spaces
Single acting, spring return
High strength alloy steel for durability
Chrome plated piston resists wear and corrosion
Baked enamel finish for increased corrosion resistance
Grooved piston rods require no saddle
Mounting holes permit easy fixturing
Cylinder bores are roller burnished to harden the surface and make
it smoother
1-year after sale services
Contact us for more information
