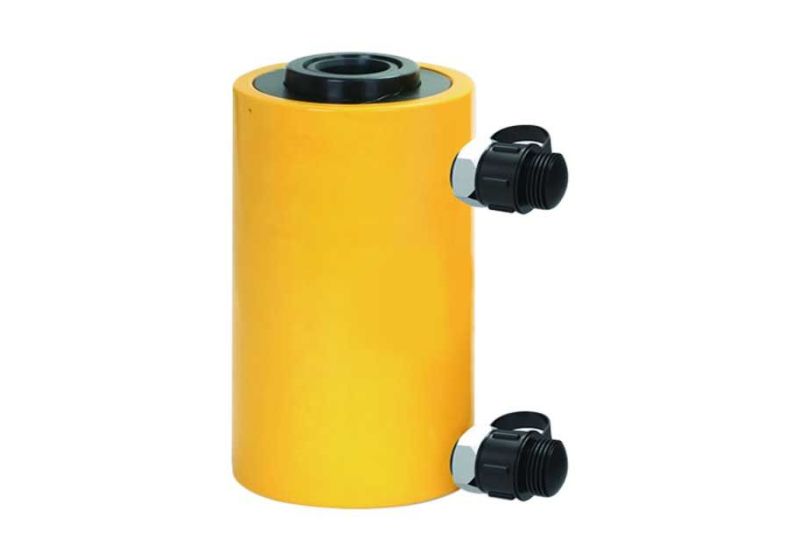

RSCO Double acting Hollow Plunger Cylinders HCD5-60T

دسته بندی : Low Height Hydraulic Jack

Hydraulic Cylinder

Information:

  • Power: 60 tons
  • stroke 50 mm
  • enter trace 562 kn
  • return trace 377 kn
  • Effective area enter trace : 80.3 cm2
  • Effective area return trace 53.8
  • Oil capacity enter trace : 402 cm3
  • Oil capacity return trace 269 cm3
  • Closed mode height: 202 mm
  • extended height 252 mm
  • outside diameter 158 mm
  • inside diameter 123 mm
  • center hole(G) : 54 mm
  • piston rod diameter 91 mm
  • Weight: 24.5 kg
  • Made in China
  • After-sale services
  • Hollow plunger design allows for both push and pull forces
  • Double acting, hydraulic return
  • High strength alloy steel for durability
  • Baked enamel finish for increased corrosion resistance
  • Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
  • Contact us for more information
موارد بیشتر
Add to wishlist
Add to compare0
Last items in stock
$693.00
Delivery: 1 to 3 weeks

فقط 1 عدد در انبار باقیست - پیش از اتمام بخرید

Product Details

Data sheet

Name
Hydraulic Cylinder
Model
HCD5-60T
Function system
Hydraulic
Maximum pressure
700 bar
Warranty
Unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
After-sale services
available
Made in
china
Weight
24.5 kg
Overall length
252 mm
Tank capacity
402cm3
نوع جک
Double acting Hollow Plunger Cylinders
ظرفیت جک
60t
