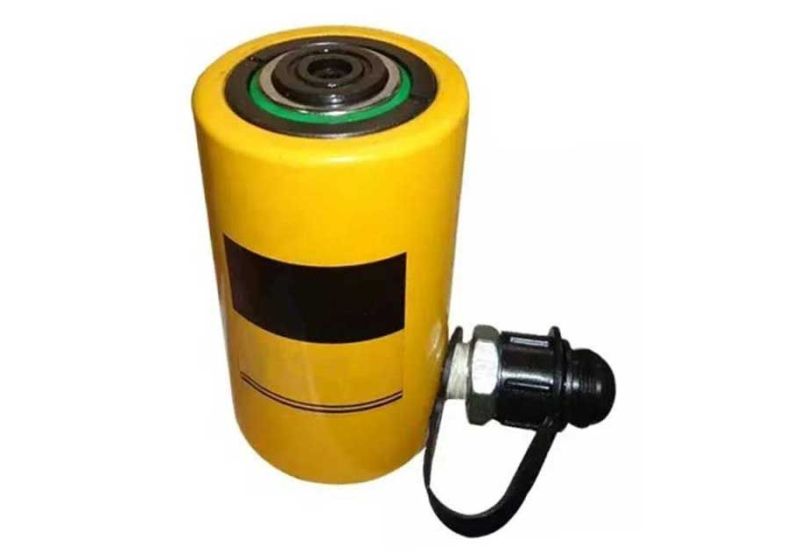

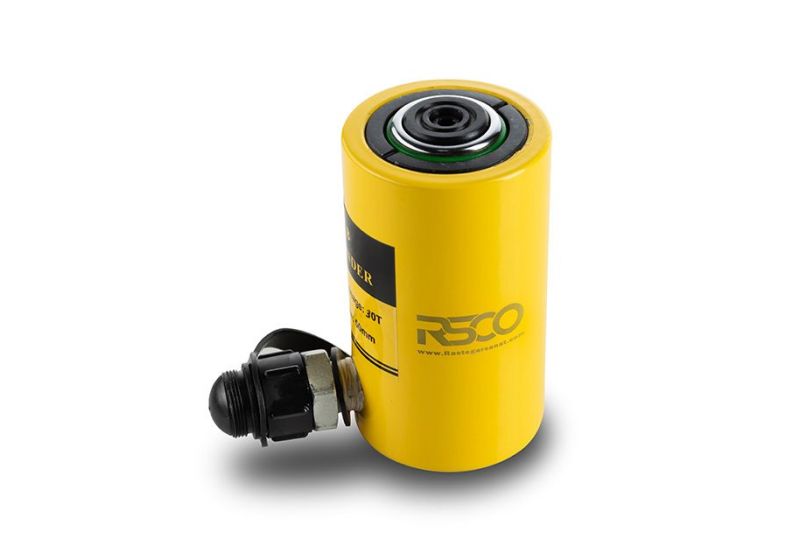

RSCO One Way Hydraulic Jack Cylinder 30 tons HSB15-30T

دسته بندی : Low Height Hydraulic Jack

Hydraulic Jack Cylinder

Information:

  • Cylinder capacity 30 ton / 309 KN
  • stroke 150mm
  • effective area 44.2 cm2
  • oil capacity 705 cm3
  • closed height 237 mm
  • extended height 387 mm
  • outside diameter 103 mm
  • inside diameter 75 mm
  • piston rod diameter 65 mm
  • weight 13.5 kg
  • Standard saddle diameter 48.5 mm
  • handle : yes
  • Working pressure :700bar
  • Made in China
  • After sale services
  • Contact us for more information
Add to wishlist
Add to compare0
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Hydraulic Jack Cylinder
Model
HSB15-30T
After-sale services
1 year
Function system
hydraulic
Maximum pressure
700 bars
Warranty
unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Made in
China
Weight
13.5 kg
Overall length
387mm
Tank capacity
705cm3
نوع جک
One Way Hydraulic Jack
ظرفیت جک
30t
Reviews (0)

No customer reviews for the moment.
