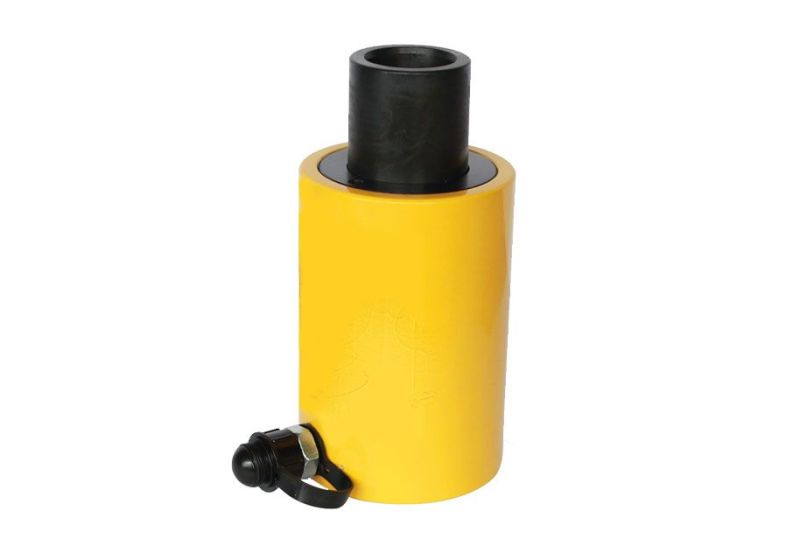

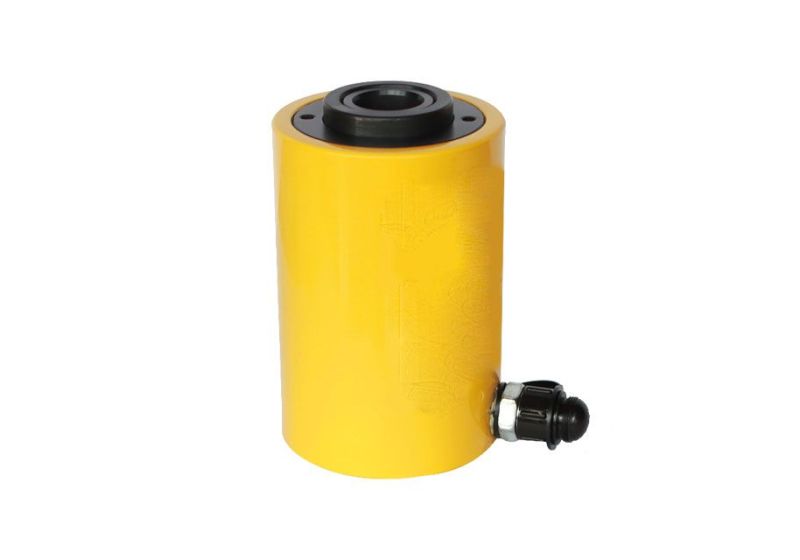

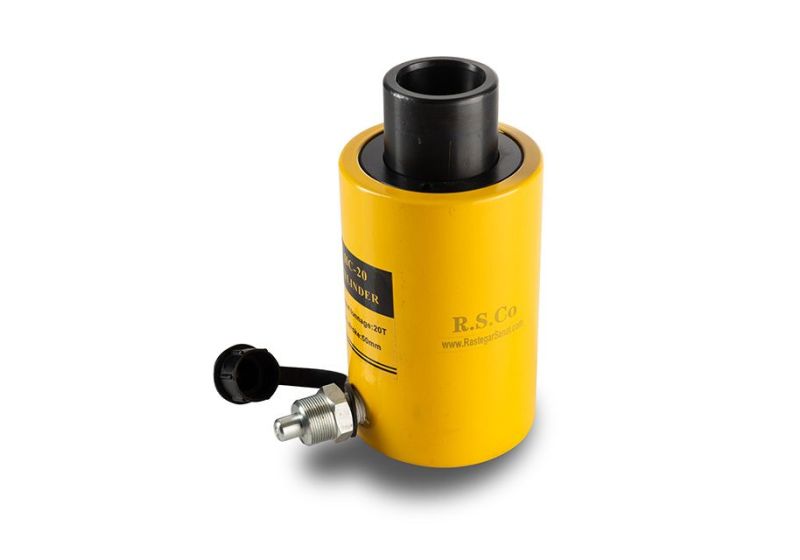

RSCO Single-acting Hollow Plunger Cylinders HCB10-30T

Hydraulic Jack

Information:

  • Power: 30 tons / 334 KN
  • stroke 100mm
  • Effective area: 44.7 cm
  • Oil capacity: 477 cm3
  • Closed mode height: 246 mm
  • extended height 346 mm
  • outside diameter 114 mm
  • inside diameter 90 mm
  • center hole(G) : 33 mm
  • piston rod diameter 63 mm
  • Weight: 14.5 kg
  • Made in China
  • Hollow plunger design allows for both push and pull forces
  • Single acting, spring return
  • High strength alloy steel for durability
  • Baked enamel finish for increased corrosion resistance
  • Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
  • Contact us for more information
Read moreShow less
out of stock
Unfortunately this product is not currently available. You can visit the same product from the bottom of the page or contact the sales unit to provide it as quickly as possible.
موجود شد خبرم کن
Product Details

Data sheet

Name
Hydraulic Jack
Device Model
HCB10-30T
Function system
Hydraulic
Maximum pressure
700 bars
Warranty
Unavailable
Quality rating by Rastegar Sanat from 0 to 100
75
Made in
china
Weight
14.5 kg
Overall length
346 mm
Tank capacity
477 ml
نوع جک
Single-acting Hollow Plunger Cylinders
ظرفیت جک
30T
