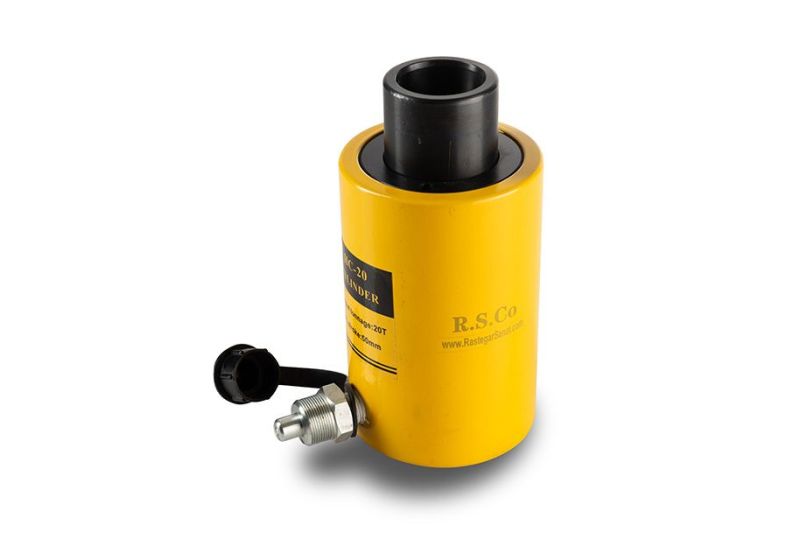

RSCO Single-acting Hollow Plunger Cylinders HCB10-60T

Hydraulic Cylinder

Information:

• Power: 200 tons
• stroke 50 mm
• cylinder capacity enter trace 1929 kn
• cylinder capacity return trace 1161 kn
• Effective area enter trace : 275.5 cm2
• Effective area return trace 165.8 cm2
• Oil capacity enter trace : 1436 cm3
• Oil capacity return trace 829 cm3
• Closed mode height: 237 mm
• extended height 287 mm
• outside diameter 288 mm
• inside diameter 240 mm
• piston rod diameter 191 mm
• Weight: 90.9 kg
• Made in China
• After-sale services
• Hollow plunger design allows for both push and pull forces
• Double acting, hydraulic return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack Cylinder

Information:

• Cylinder capacity 50 ton / 496 KN
• stroke 50mm
• effective area 70.8 cm2
• oil capacity 389 cm3
• closed height 147 mm
• extended height 197 mm
• outside diameter 123 mm
• inside diameter 95 mm
• piston rod diameter 70 mm
• weight 11.6 kg
• Standard saddle diameter 57.5 mm
• handle : no
• Working pressure :700bar
• Made in China
• After sale services
• Contact us for more information

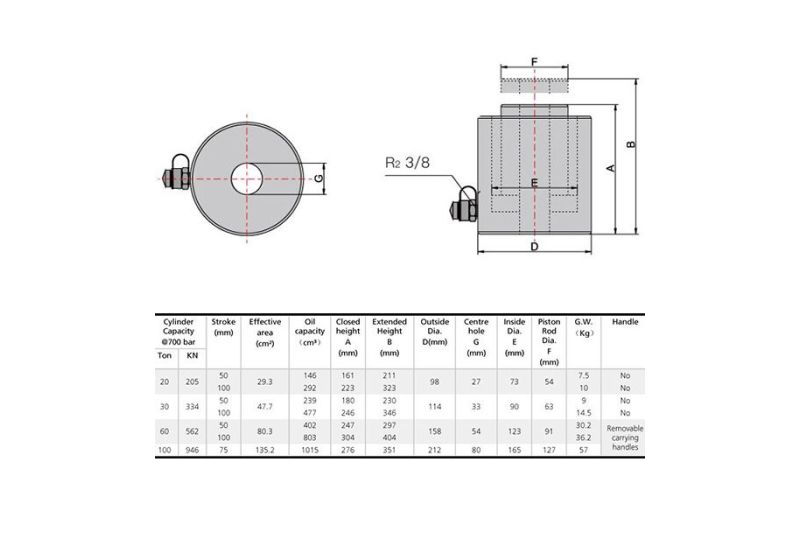

Hydraulic Jack

Information:

• Power: 60 tons / 562 KN
• stroke 50mm
• Effective area: 80.3 cm
• Oil capacity: 402 cm3
• Closed mode height: 247 mm
• extended height 297 mm
• outside diameter 158 mm
• inside diameter 123 mm
• center hole(G) : 54 mm
• piston rod diameter 91 mm
• Weight: 30.2 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Jack

Information:

• Power: 20 tons / 205 KN
• stroke 50mm
• Effective area: 29.3 cm
• Oil capacity: 146 cm3
• Closed mode height: 160 mm
• extended height 211 mm
• outside diameter 98 mm
• inside diameter 73 mm
• center hole(G) : 27 mm
• piston rod diameter 54 mm
• Weight: 7.5 kg
• Made in China
• Hollow plunger design allows for both push and pull forces
• Single acting, spring return
• High strength alloy steel for durability
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Contact us for more information

Hydraulic Cylinder

Information:

• To lift objects using its oil power in the tank
• Working range: 10 tons
• First-stage power : 309 kN
• Second-stage power : 111 kN
• Maximum working pressure: 700 bars
• stroke of stage one, two : 135 mm
• total stroke 270 mm
• effective area First-stage 44.2
• effective area Second-stage 15.9
• Oil capacity: 810 cm
• closed height : 250 mm
• outside diameter 110 mm
• inside diameter First-stage 75 mm
• inside diameter Second-stage 45 mm
• standard saddle diameter 45 mm
• Weight: 18 kg
• 1 year after service
• Made in china
• Single acting, load return
• High strength alloy steel for durability
• Chrome plated piston resists wear and corrosion
• Baked enamel finish for increased corrosion resistance
• Each cylinder has an HH-II R2 3/8 male half coupler and dust cap
• Each cylinder has a flat grooved saddle
• Contact us for more information

Hydraulic Jack

Information:

• Maximum Operating Pressure 700 bar
• Capacity 890 kn
• Stroke 153 mm
• Jack Effective Area 133.1 cm2
• Pump Speed : 2-Speed
• Weight 74.4 kg
• Made in USA
• After-sale services
• Contact us for more information
