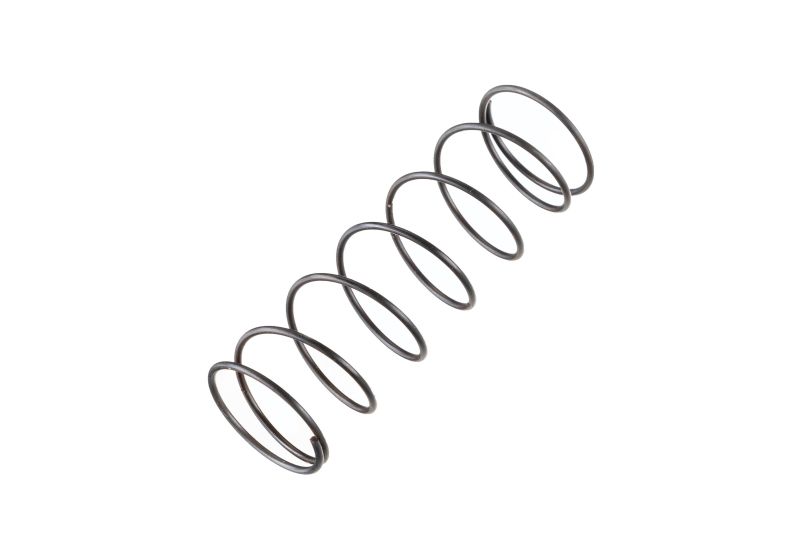

RSCO Nail Gun Spare Parts model QSNGL0104

Spare Parts of a Nail Gun

A nail gun is an essential tool in construction and woodworking, designed to drive nails into various materials with speed and precision. To ensure its longevity and optimal performance, it’s important to understand some of the key spare parts that may need replacement over time. Here’s a detailed look at the main components of a nail gun:
1. Body
The body of the nail gun is the main structure that houses all the internal components. It is typically made from durable materials like aluminum or reinforced plastic to withstand heavy use. The body can vary in size and shape depending on the specific model and its intended use.
2. Air Hose
For pneumatic nail guns, the air hose is crucial as it connects the tool to an air compressor. Made from materials such as PVC, PU, rubber, or nylon, the air hose delivers the compressed air needed to drive the nails. Ensuring the air hose is in good condition and free from leaks is essential for maintaining optimal performance.
3. Exhaust Cover
The exhaust cover directs the expelled air away from the user and the work surface. Typically made from plastic, it can be adjusted to control the direction of the airflow, helping to maintain a clean and safe working environment.
4. Trigger
The trigger mechanism controls the firing of the nails. There are different types of triggers, including full sequential, single sequential, single actuation, and contact triggers. Regular inspection and maintenance of the trigger are essential to ensure smooth operation1.
5. Depth Adjustment
The depth adjustment feature allows the user to control how deep the nails are driven into the material. This is typically achieved through a slide control or a small dial. Proper depth adjustment ensures that the nails are driven to the desired depth without damaging the material.
6. Nose
The nose of the nail gun is the part that comes into direct contact with the material being nailed. It guides the nail into the correct position and ensures accurate placement. The nose can wear out over time and may need replacement to maintain precision.
7. Magazine
The magazine holds the nails and feeds them into the firing chamber. It can be designed to hold different types and sizes of nails, depending on the specific model. Keeping the magazine clean and free from debris is crucial for the smooth operation of the nail gun.
8. Piston and Driver Blade
The piston and driver blade work together to drive the nails into the material. The piston is powered by compressed air, and the driver blade pushes the nail out of the gun. These components are subject to significant wear and may need regular replacement to ensure consistent performance.
9. O-Rings and Seals
O-rings and seals are used throughout the nail gun to prevent air leaks and ensure efficient operation. These small but vital components can wear out over time and should be inspected regularly. Replacing worn O-rings and seals can prevent air leaks and maintain the tool’s performance.
10. Springs
Various springs within the nail gun control different functions, such as the return of the trigger and the feeding of nails. Springs can lose their tension over time and may need replacement to ensure the tool operates smoothly.

Conclusion
Maintaining a nail gun involves regular inspection and replacement of its spare parts. Understanding the function and importance of each component can help in identifying issues early and ensuring the tool remains in optimal working condition. By keeping these parts in good shape, users can extend the lifespan of their nail gun and achieve consistent, high-quality results in their projects.
