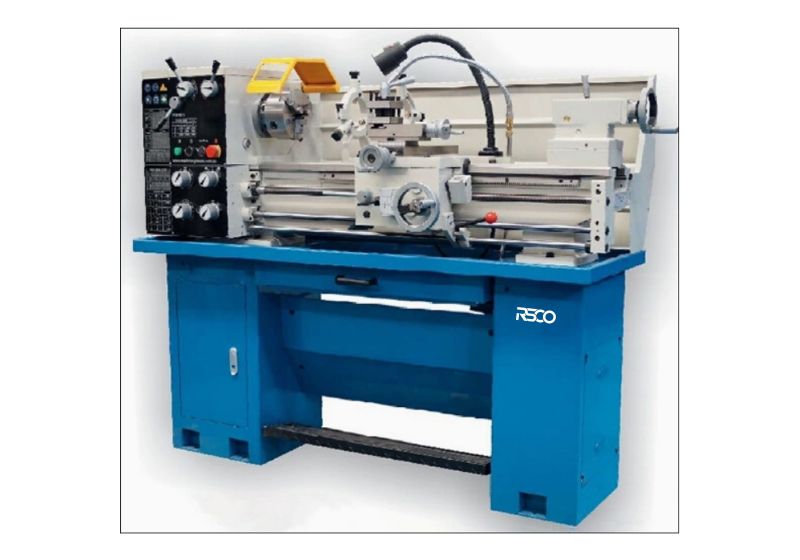

RSCO Bench Lathe model BLCQ6230

Brand:

RSCO Bench Lathe

Specifications:

Precision ground and hardened bedways.
The spindle is supported with precision roller bearings.
head stock gears are made of high quality steel ground and hardened.
Easy operating speed change levers
removable gap is provided for larger diameter work
easy operating gear box has various feeds and thread cutting function
With or without foot stand for optional
Right angle appearance or circular appearance for optional
Max swing over bed: 310mm
Max swing over cross side: 180 mm
Max swing over gap: 450 mm
Distance between centers: 750/912/1000 mm
power : 1.5 kw
Width of bed: 181 mm
Spindle bore: 38mm
Tapper of Spindle bore: M.T#5
Range of Spindle speed: 65-1810 (1400) rpm
Taper of Tailstock: M.T#3
Metric threads can be cut: 0.4-7 mm
Inch threads can be cut: 4-60 T.P.I
Range of longitudinal feeds: 0.0527-1.2912 mm/rev
Range of cross feeds: 0.011-0.276 mm/rev
Max travel of cross slide: 130 mm
Max travel of top slide: 75 mm
Max travel of tailstock quill: 100 mm
Made in China
If repairing of the bench lathe machine is needed call repairing department of Rastegar Sanat
For more information about the price of the bench lathe call selling department of Rastegar Sanat

Bench Lathe Machine: An Essential Tool in Precision Machining

A bench lathe machine is a versatile and essential tool in the field of precision machining. It is designed to perform various operations such as cutting, sanding, knurling, drilling, and turning, which are crucial in shaping metal or wood workpieces. This essay explores the components, functions, and applications of bench lathes, highlighting their significance in both industrial and hobbyist settings.

Components of a Bench Lathe

A bench lathe consists of several key components that work together to achieve precise machining:
1 Lathe Bed: The foundation of the lathe, providing stability and support for all other components.
2 Headstock: Houses the spindle and motor, responsible for rotating the workpiece.
3 Tailstock: Positioned opposite the headstock, it supports the workpiece and can hold tools for drilling or reaming.
4 Carriage: Moves along the bed and holds the cutting tool, allowing for precise control over the machining process.
5 Tool Post: Mounted on the carriage, it secures the cutting tool in place.
6 Chuck: Attached to the spindle, it grips the workpiece firmly.
7 Cross Slide and Compound Rest: Allow for lateral and angular movement of the cutting tool, enabling intricate cuts and shapes.

Functions and Operations of Bench Lathe

Bench lathes are capable of performing a wide range of operations, making them indispensable in various machining tasks:
• Turning: The primary function, where the workpiece is rotated while a cutting tool shapes its exterior.
• Facing: Creating a flat surface at the end of the workpiece.
• Drilling: Using the tailstock to hold a drill bit, holes can be precisely drilled into the workpiece.
• Knurling: Producing a textured pattern on the surface for better grip.
• Threading: Cutting threads on the exterior or interior of the workpiece for screws and bolts.

Applications of Bench Lathes

Bench lathes are used in numerous industries and by hobbyists for various applications:
• Manufacturing: Essential in producing parts for machinery, automotive components, and aerospace parts.
• Prototyping: Ideal for creating prototypes and custom parts with high precision.
• Jewelry Making: Used by jewelers to shape and polish metal pieces.
• Woodworking: Employed by woodworkers to create detailed and intricate designs.
Advantages of Bench Lathes
The bench lathe offers several advantages that make it a preferred choice for precision machining:
• Versatility: Capable of performing multiple operations on a single machine.
• Precision: Allows for high accuracy in shaping and cutting materials.
• Compact Size: Fits on a workbench, making it suitable for small workshops and hobbyists.
• Cost-Effective: Provides a cost-efficient solution for various machining tasks.

Conclusion
In conclusion, the bench lathe machine is a fundamental tool in the realm of precision machining. Its versatility, precision, and compact size make it an invaluable asset in both industrial and hobbyist settings. Whether used for manufacturing, prototyping, or crafting intricate designs, the bench lathe continues to play a crucial role in shaping the world of machining.
